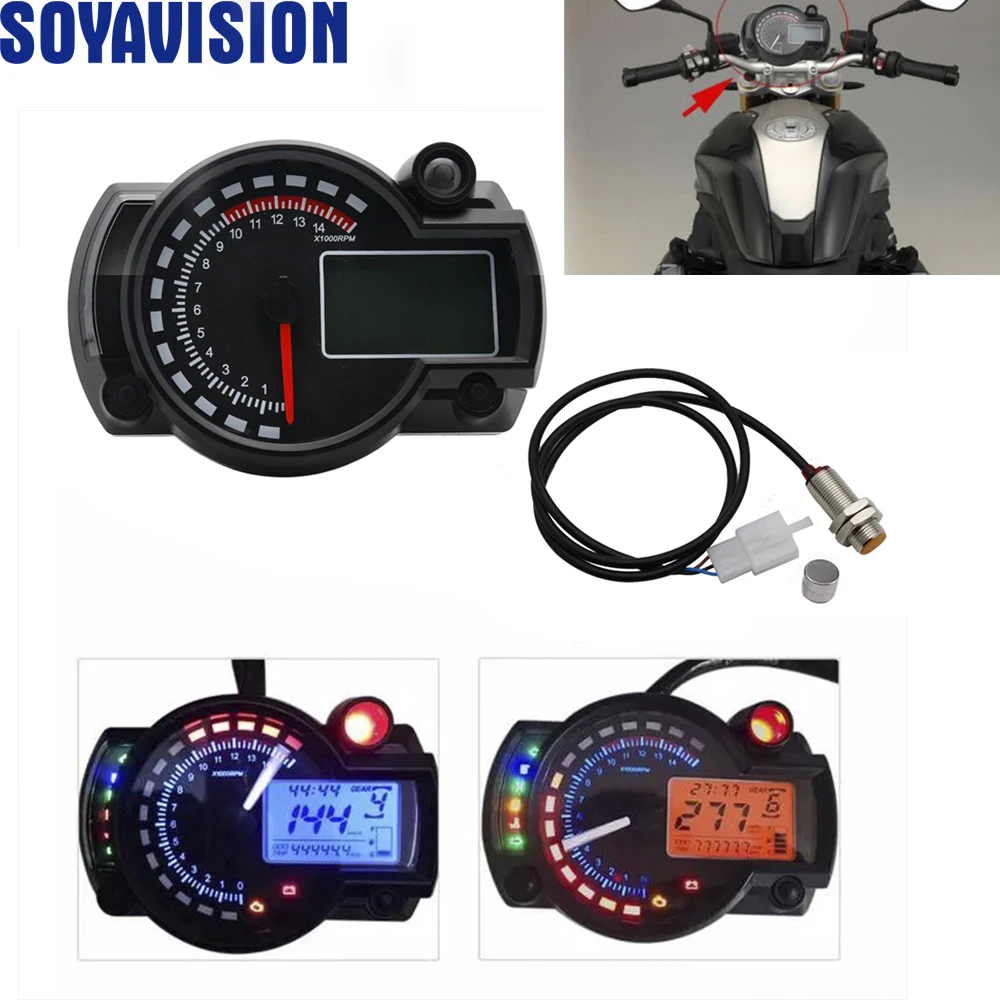

Motorcycle Digital speedometer  LCD Gauge Speedometer Tachometer Odometer motorbike instrument 7 color display oil level meter



  Related product



    Specifications:  Product color: black Supply voltage: DC 12V   Function: speedometer, fuel level, engine fault light, overspeed warning light, 10 x 1000RPM, clock display, turn indicator, high beam indicator, N indicator lamp, etc.  Speed signal polarity range: Pn (Default: P Positive)  Perimeter setting range: 1000-2999 (Default: 1860)  Standard setting range: km/h MPH (Default: KM/H)  Speed pulse number setting range: 1 2 4 (Default: 1)    Instructions for use:   1. Short press the right button to switch among ODO, TRIP, and MAX in turn;  2. Long press the right button at ODO state to switch LCD backlight; the default is blue, after switching, it turns into orange; release and long press for blue;  3. Long press the right button at TRIP state for TRIP clearance;  4. MAX for display speed: clock hour flashes, short press to plus 1; long press to switch to quantile flash, short press to plus 1, then long press to exit;  5. Background setting: long press left and right buttons to enter the setting; when entering, it will flash; short press left button to change, and short press right button for next item flash in the sequence of perimeter-standard-number of speed pulses- number of speed pulses - polarity of speed signal; short press the right button to exit;  6. Unit, engine fault light, water temperature light negative control: left and right turn signal, high beam, front control;





Features: 100% Brand new and high quality It can be apply to different vehicles with different diameter; It can be apply to different displacement  motorcycle Easy to install





Package Including:

1 X Motorcycle LCD digital instrument assembly

1 X Instruction

1 X Sensor
