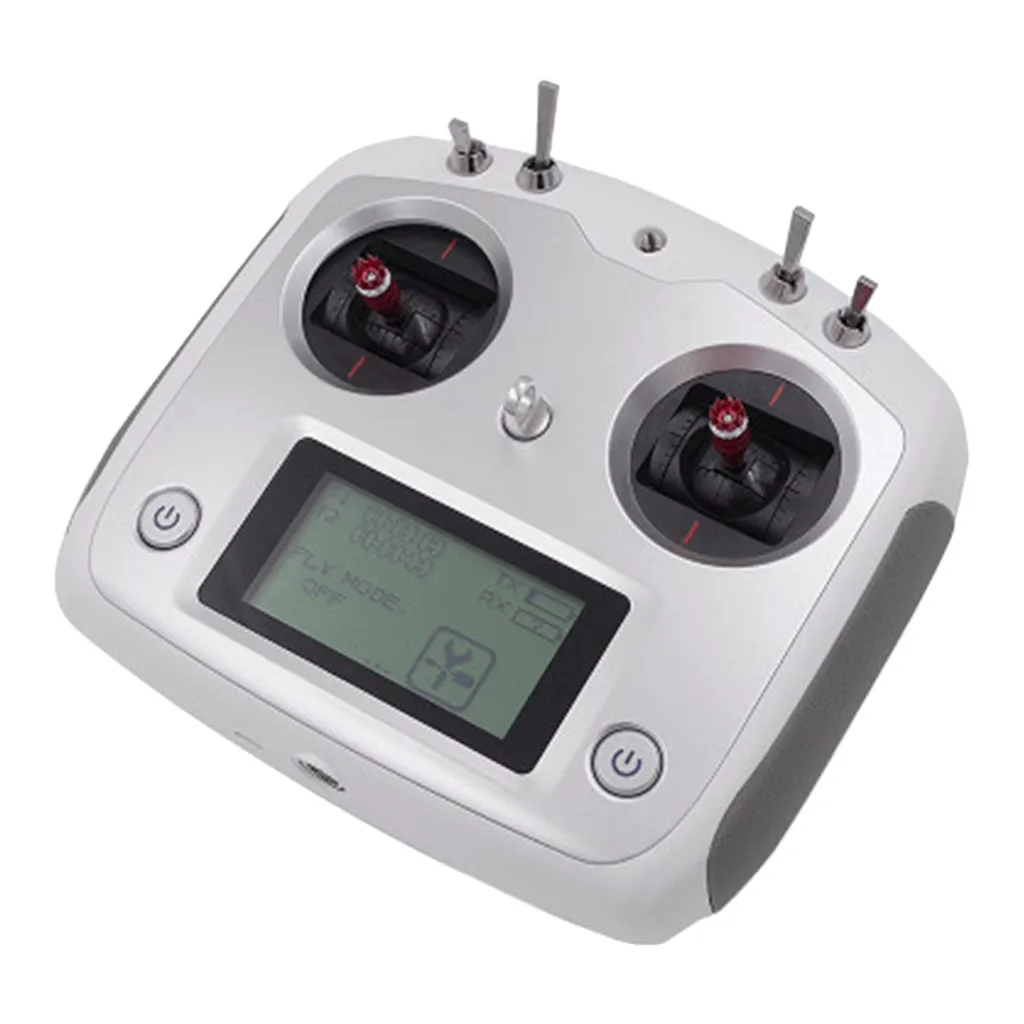

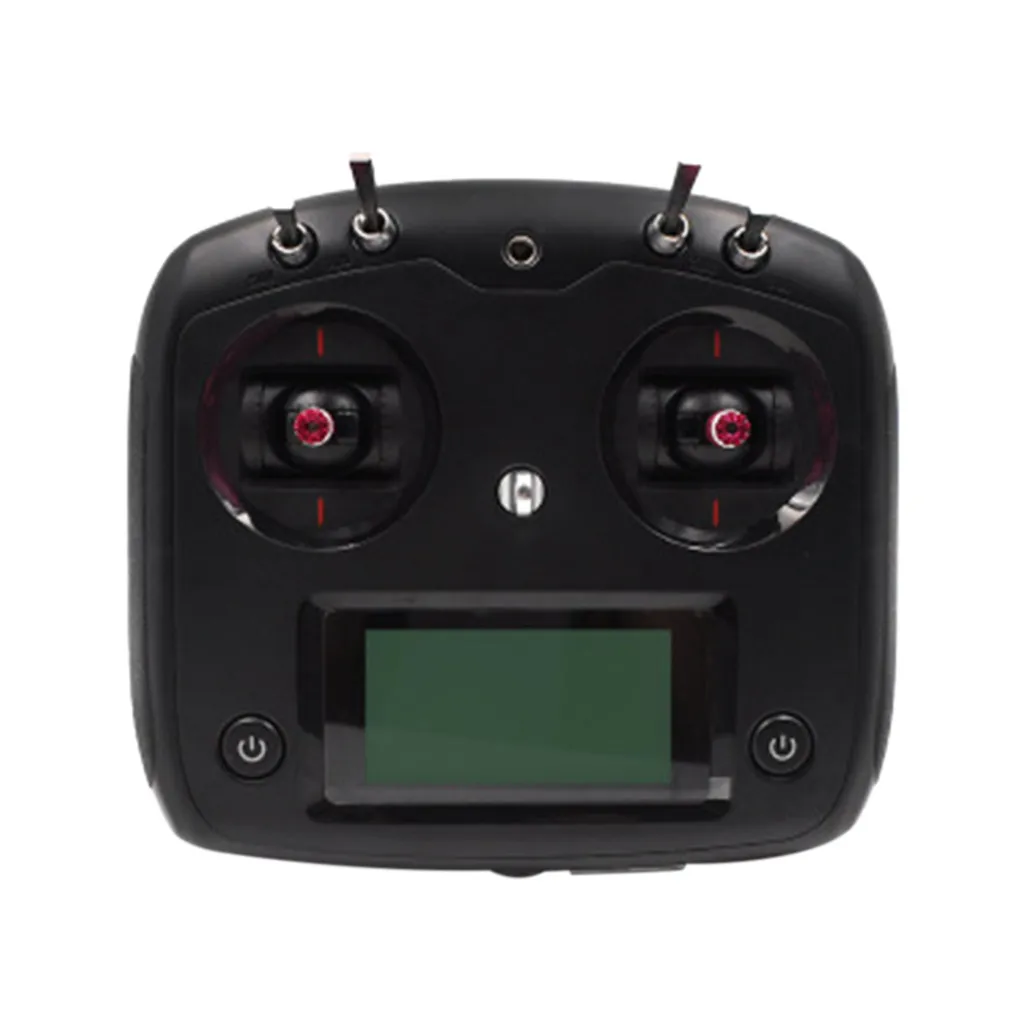

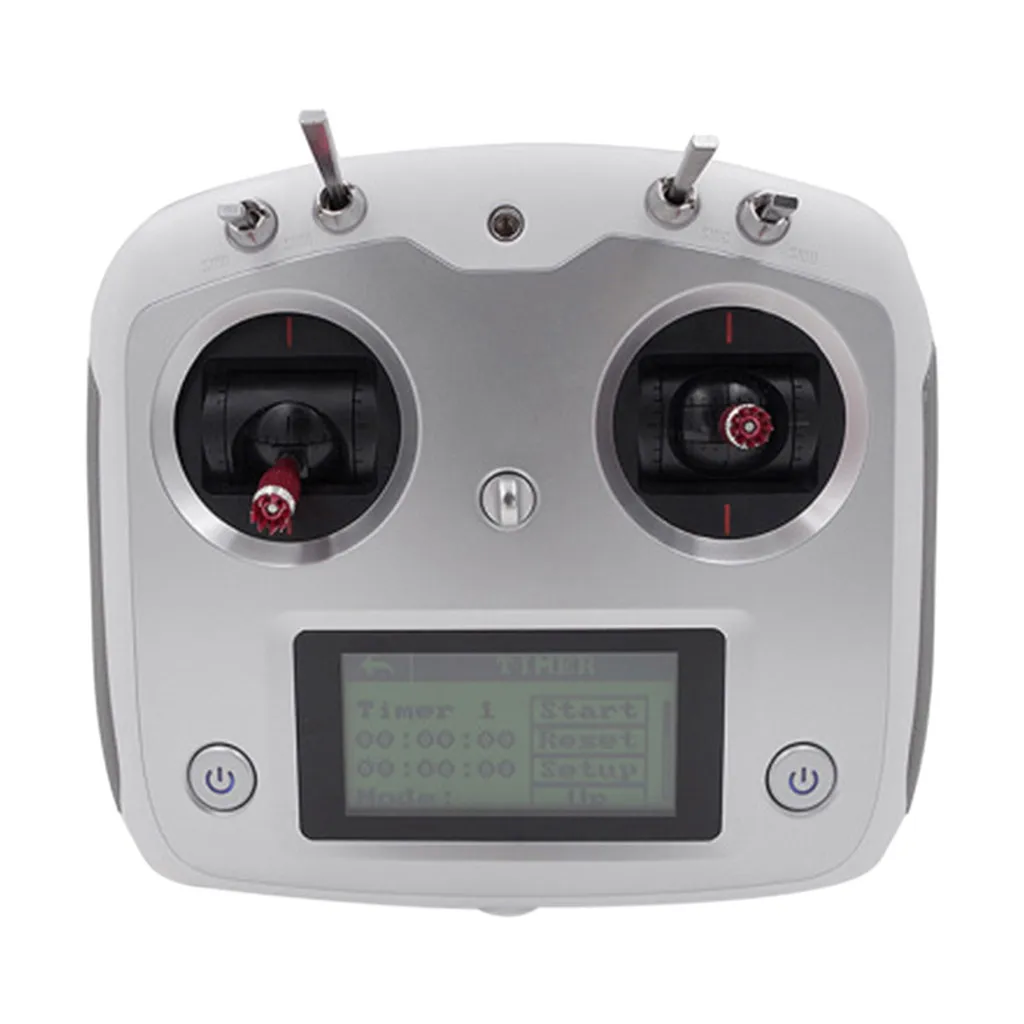

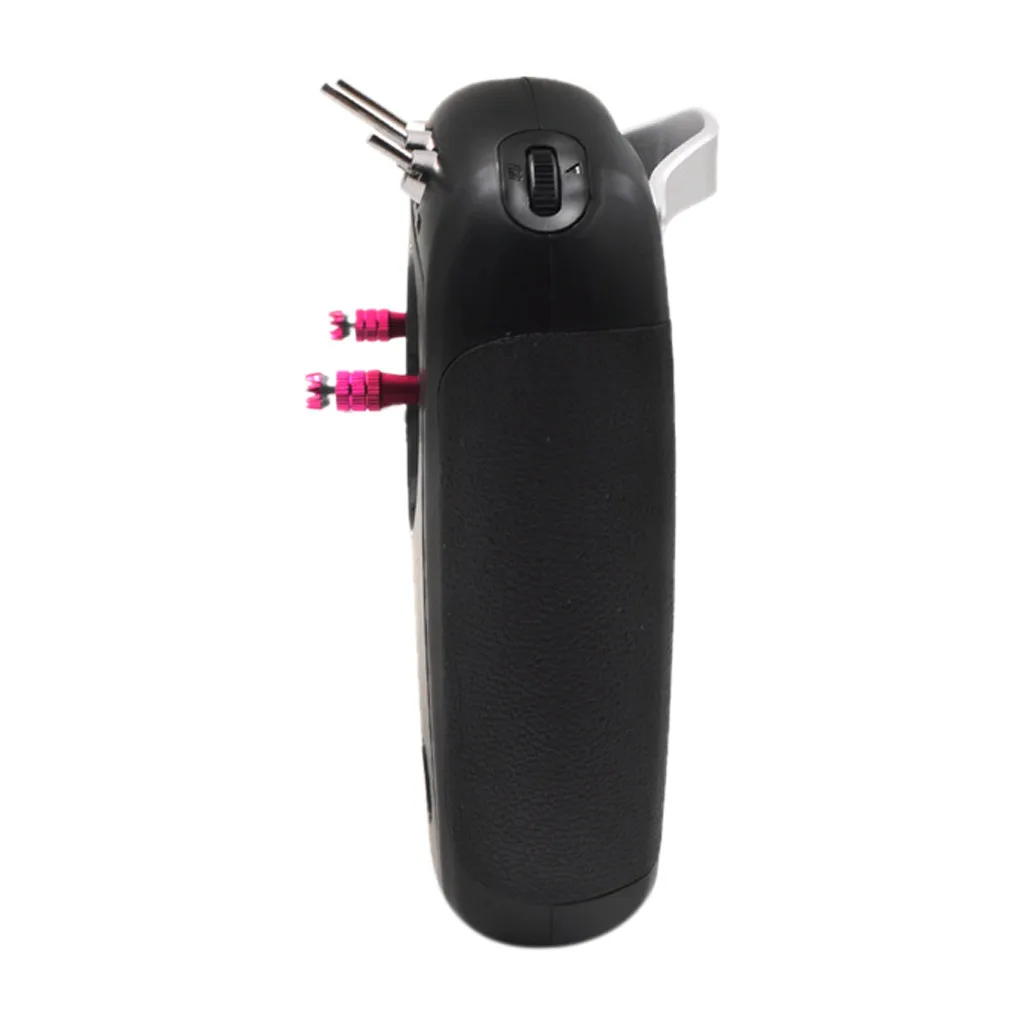

Flysky FS-i6S 2.4G 10CH RC Transmitter With iA6B Receiver For Drone Accessories

Features

• Works in the frequency range of 2.405 to 2.475 GHz. This band has been divided into 142 independent channels, each radio system uses 16 different channels and 160 different types of hopping algorithm. Silm design on transmitter for easy handling!

• This radio system uses a high gain and high quality multi directional antenna, it covers the whole frequency band. Associated with a high sensitivity receiver, this radio system guarantees a jamming free long range radio transmission

• Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatic increase interference immunity and safety.

• This radio system uses low power electronic components and sensitive receiver chip. The RF modulation uses intermittent signal thus reducing even more power consumption.

• AFHDS2A system has the automatic identification function, which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

• AFHDS2A has built-in multiple channel coding and error-correction, which improve the stability of the communication, reduce the error ratio and extend the reliable transmission distance

• Brand Name: FlySky

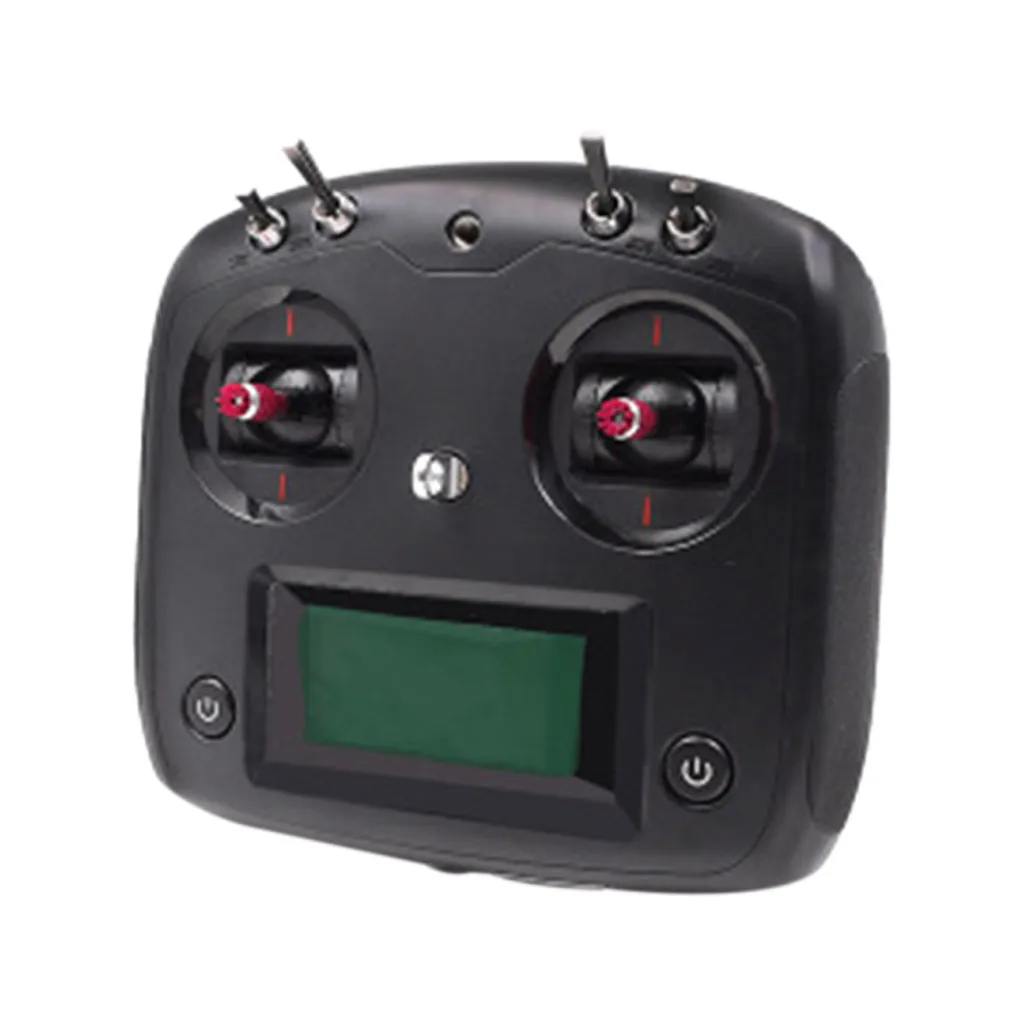

• tem Name: FS-i6s transmitter

• Channel: 10

• Model Type: Quadcopter

• Channel resolution: 4096 steps

• Low voltage warning: less than 4.2v

• ANT length: 26 x 2mm( dual antenna)

• Weight: 410g

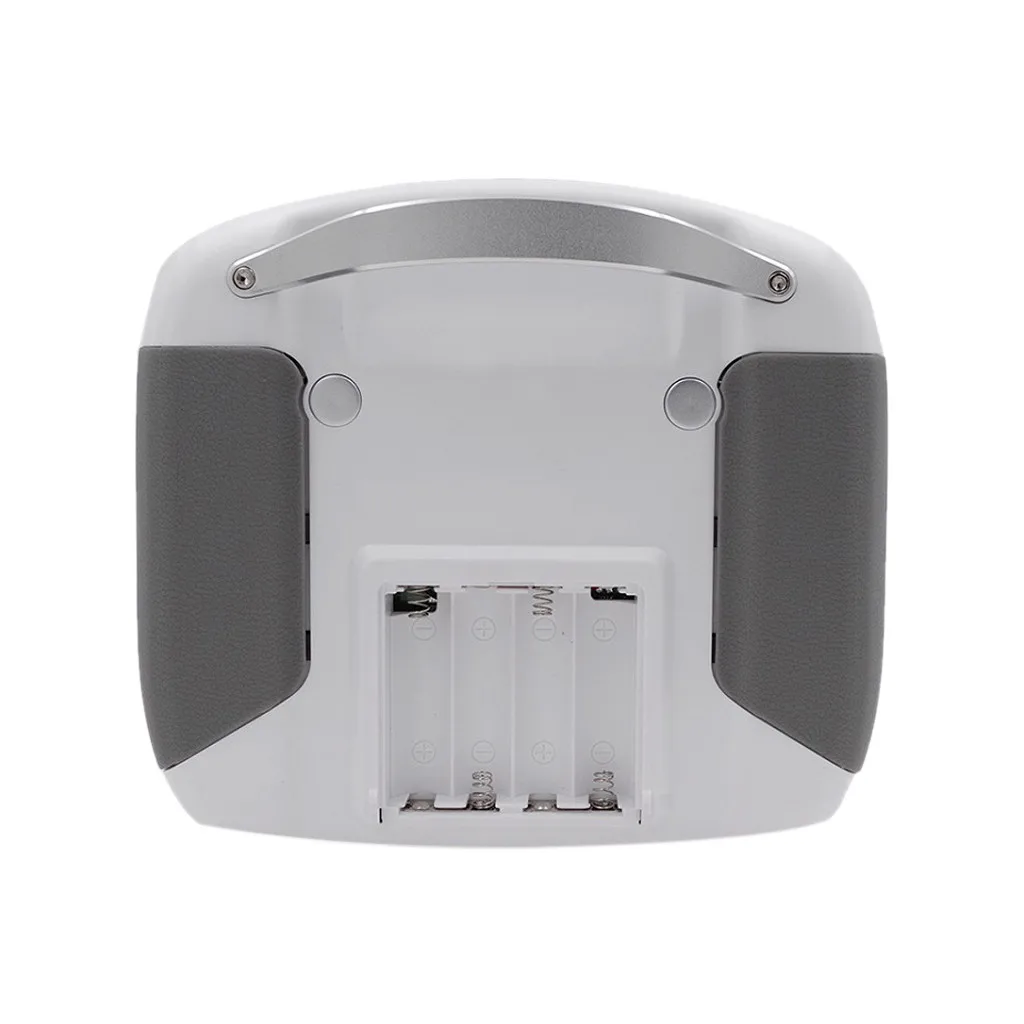

• Battery: 6v 1.5 AA x 4(not included)

• Size: 179 x 81 x 161mm

• Color: Sliver

• Certificate: CE ,FCC

RF specification:

• RF Range: 2.405 - 2.475GHz

• Bandwidth: 500khz

• RF Power: less than 20dBm

• RF mode: AFHDS 2A

• Modulation type: GFSK

• RX Sensibility: -105dBm

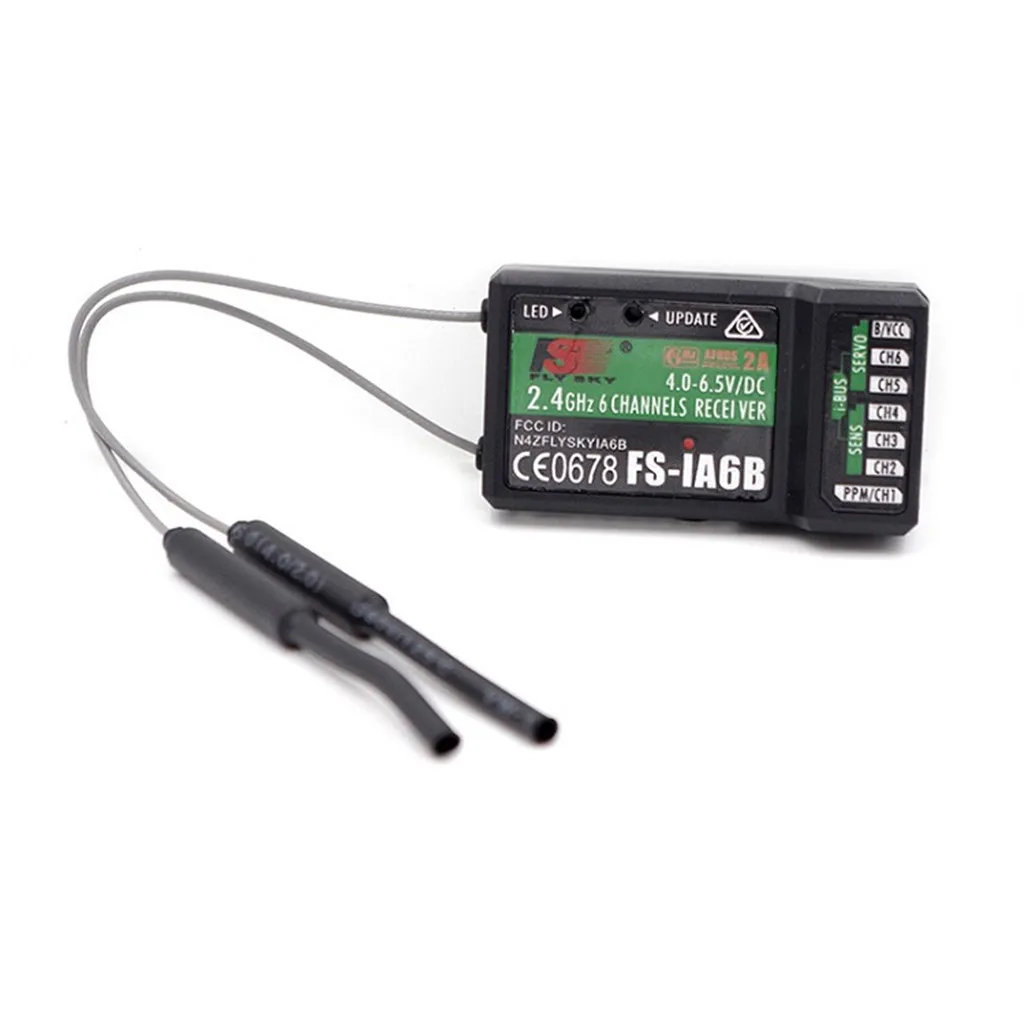

Receiver specification:

• Item Name: IA6B

• Channel: 6

• Model type: fixed wing/helicopter/glider

• RF receiver sensitivity: -105dBm

• Modulation: GFSK

• System type: AFHDS2A/AFHDS

• Channel resolution: 1024 steps

• Bind port: yes

• Power port: yes( VCC)

• Power: 4V -6.5V DC

• Weight: 14.9g

• Antenna lenght: 26mm

• Size: 47.4x262.2x15 mm

• Certificate: CE ,FCC

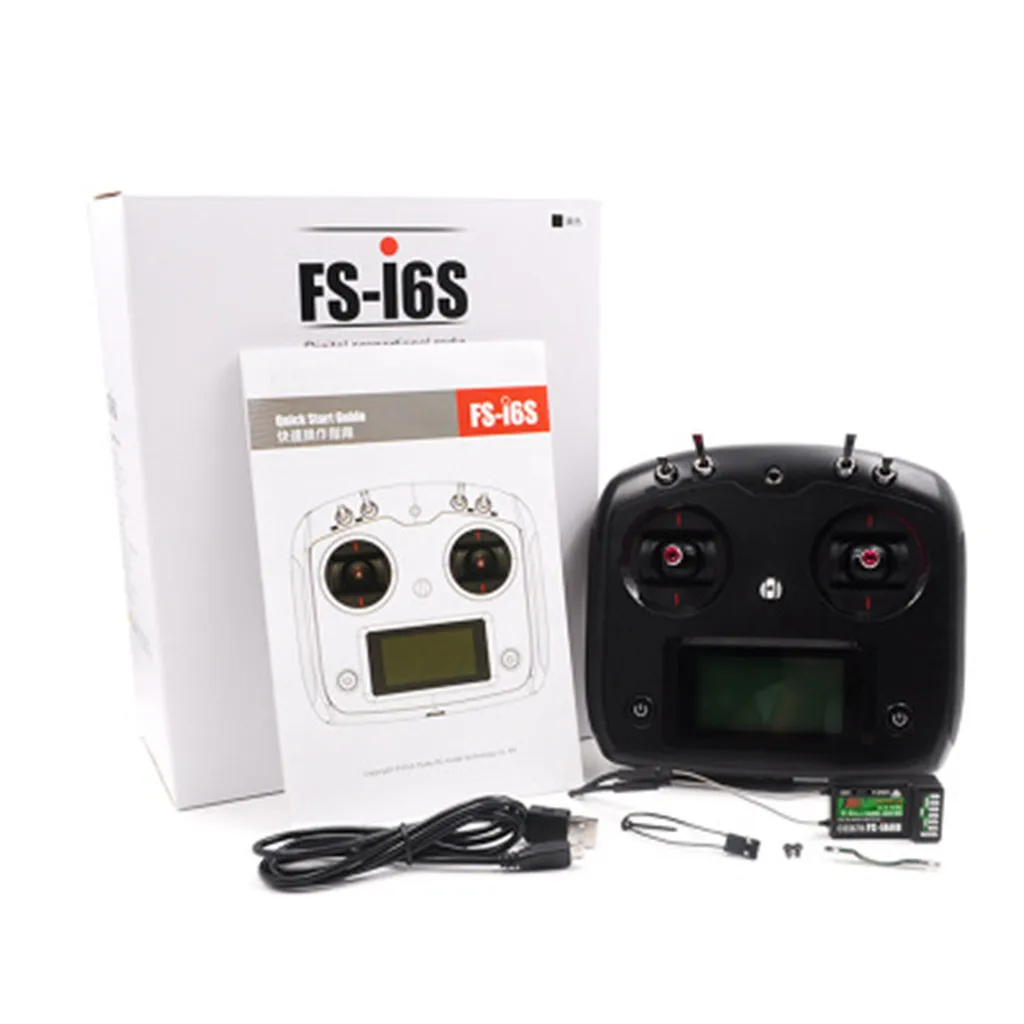

Package contents:

• 1 x FS-i6S transmitter
• 1 x FS-iA6B Receiver
• 1X Module
• 1XDisc
