CBB65 Capacitor

According to the provisions of China’s national standard GB2470-81, the capacitor named product model generally consists of the following four parts:

Part I: The letter represents the name, the meaning of C is a capacitor.
Part II: with letters material.
Part III: numerical classification.
Part IV: The digital serial number.

For example: “CBB65” Capacitor
C – meaning Capacitor
B – meaning the Dielectric is a non-polar organic film
B – meaning the Dielectric material is polypropylene
65 – meaning P2 Anti-explosion metal capacitor can motor run capacitor.

Feature:

CBB65 Capacitor is type for Metallized Polypropylene Film Capacitor, Metal Case P2 Motor run capacitor Round Case or Oval case.CBB65 Capacitor is equipped inside with reliable explosion-proof equipment and is highly safe. With its good self-healingcharacteristic and long life-span, it is widely used for air-conditioners, refrigerators, generators, compressor and HVAC system.

1) Dielectric: polypropylene film
2) Aluminum Round & Oval can
3) Oil filled capacitor
4) Self-heating properties
5) Low dissipation factor
6) Explosion proof device
7) Highest safety level P2 safety class to IEC 60252-1
8) High insulation resistance

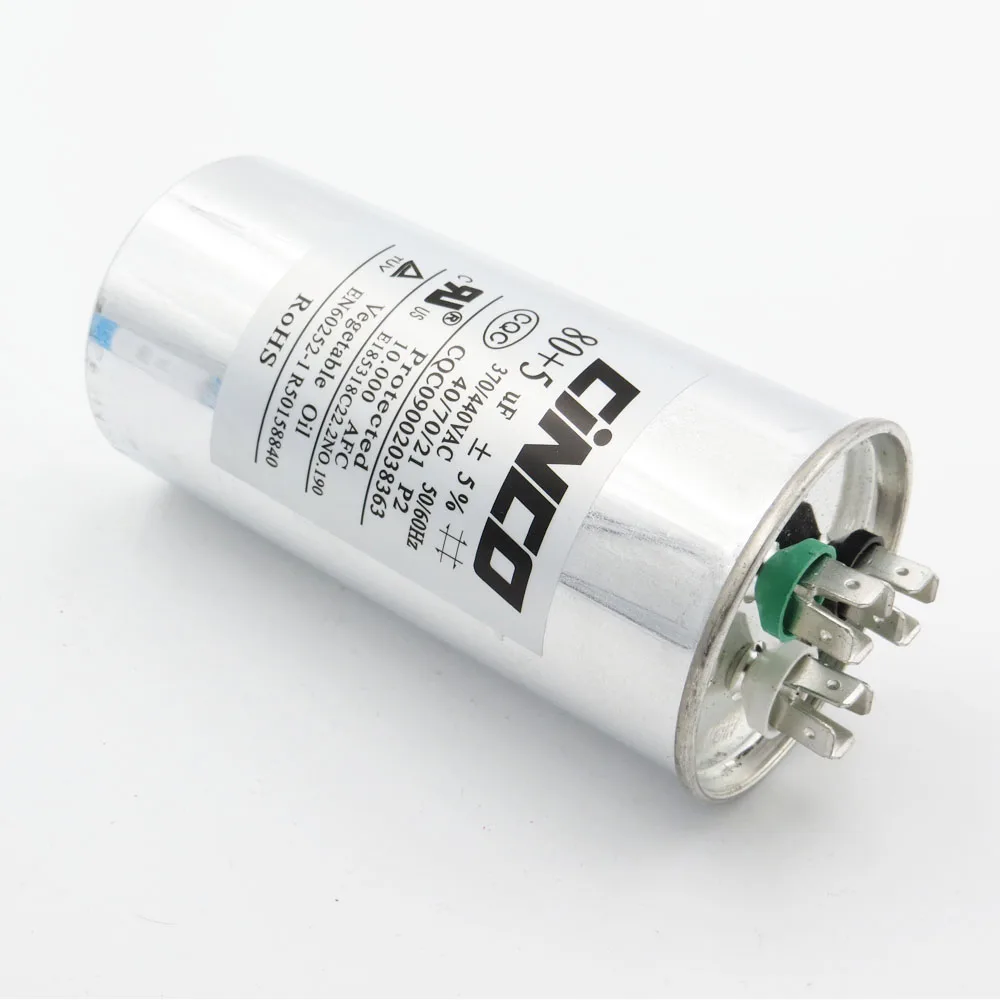

9) Terminals
2+2 pins 6.35mm x0.8 250#
4+4+4 pins 6.35mm x0.8 250#
10) Mounting parts (optional) Threaded stud at bottom of can (M8, max.torque=5 Nm)


Specification:

Packing:

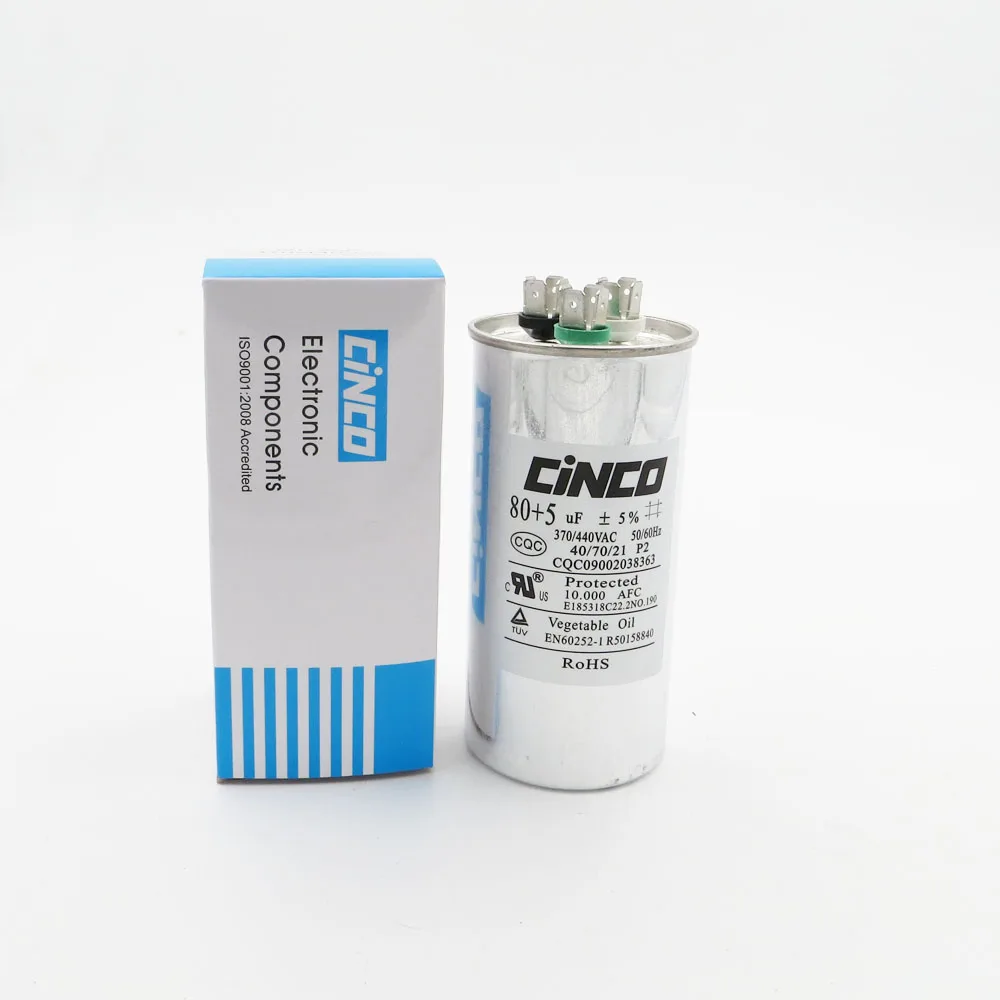

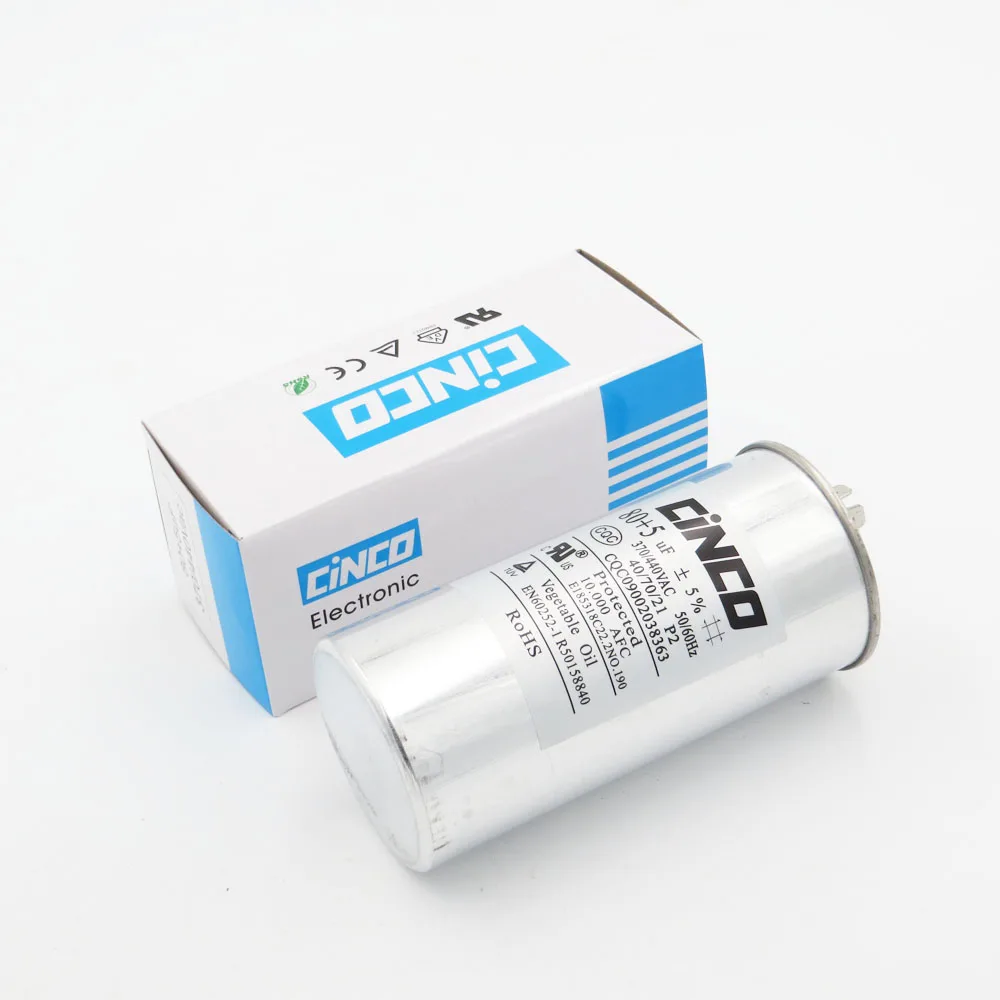

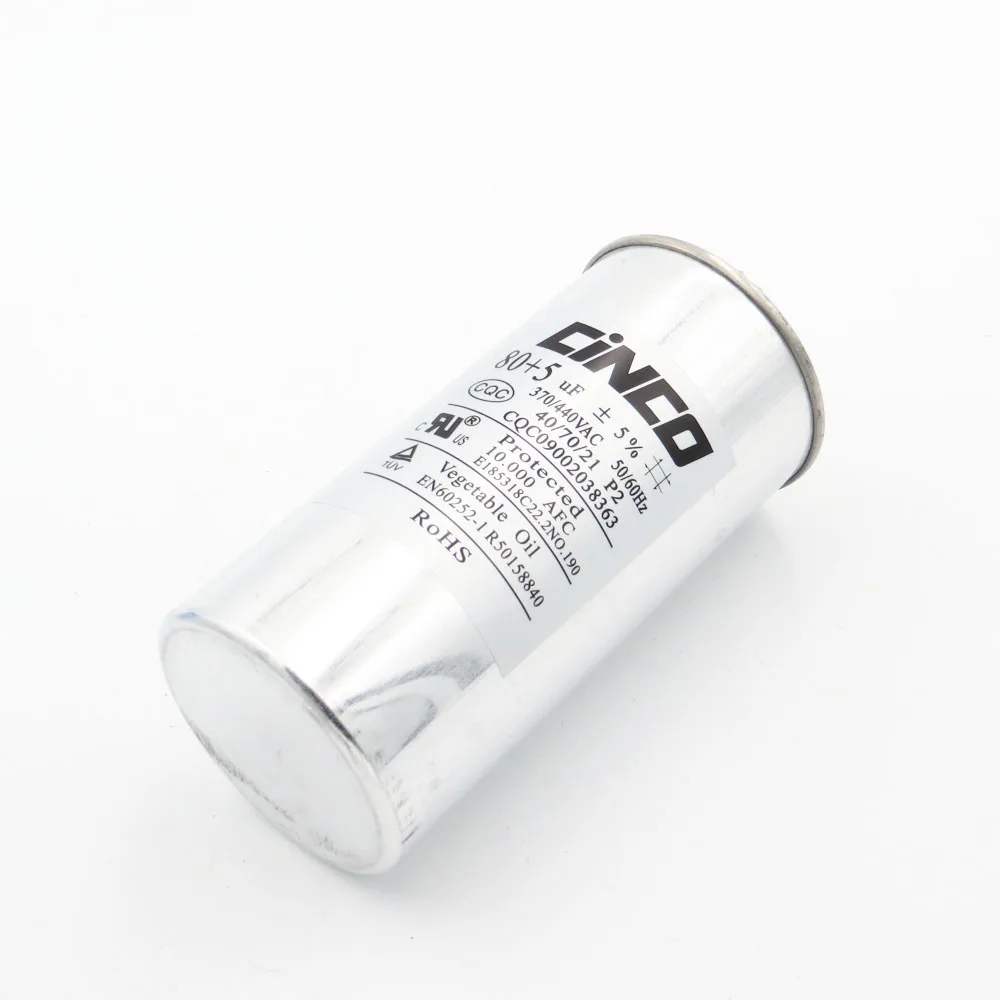

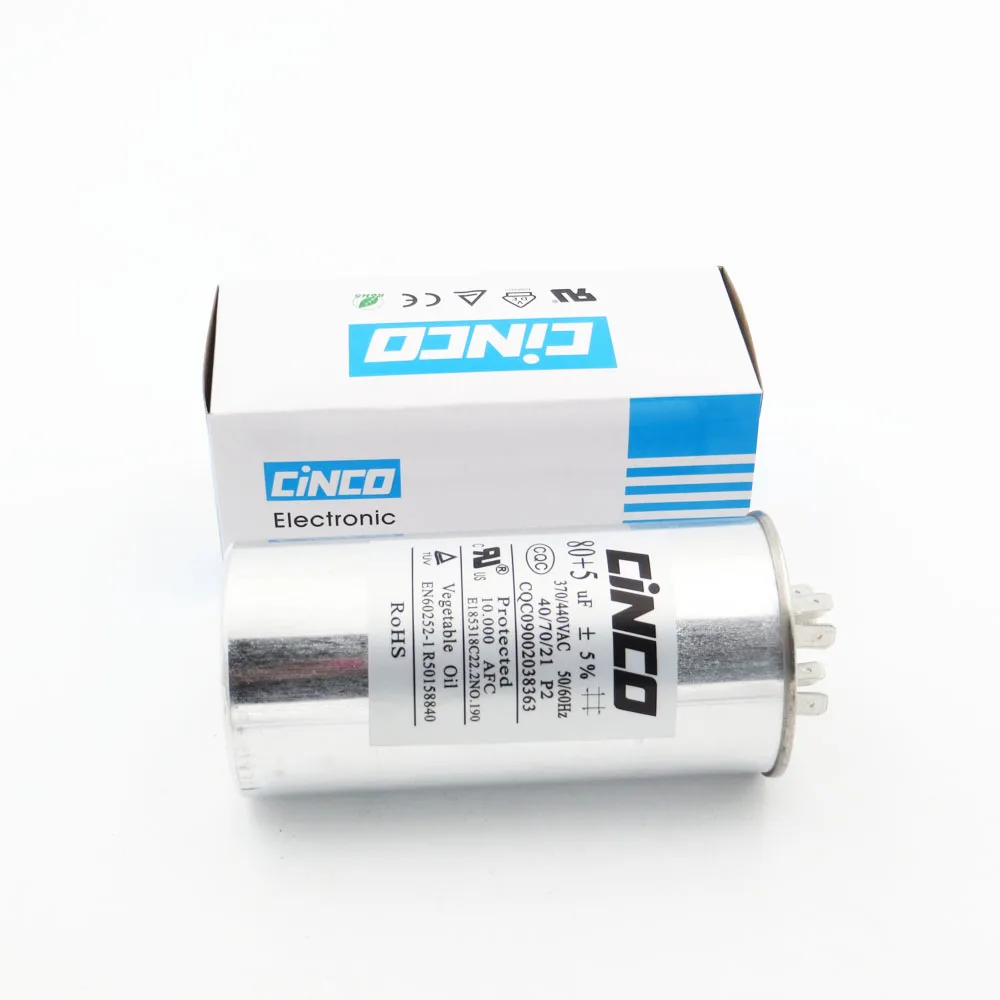

1pc x 80+5uF 370/440V CBB65 Motor Run Capacitor with color box
