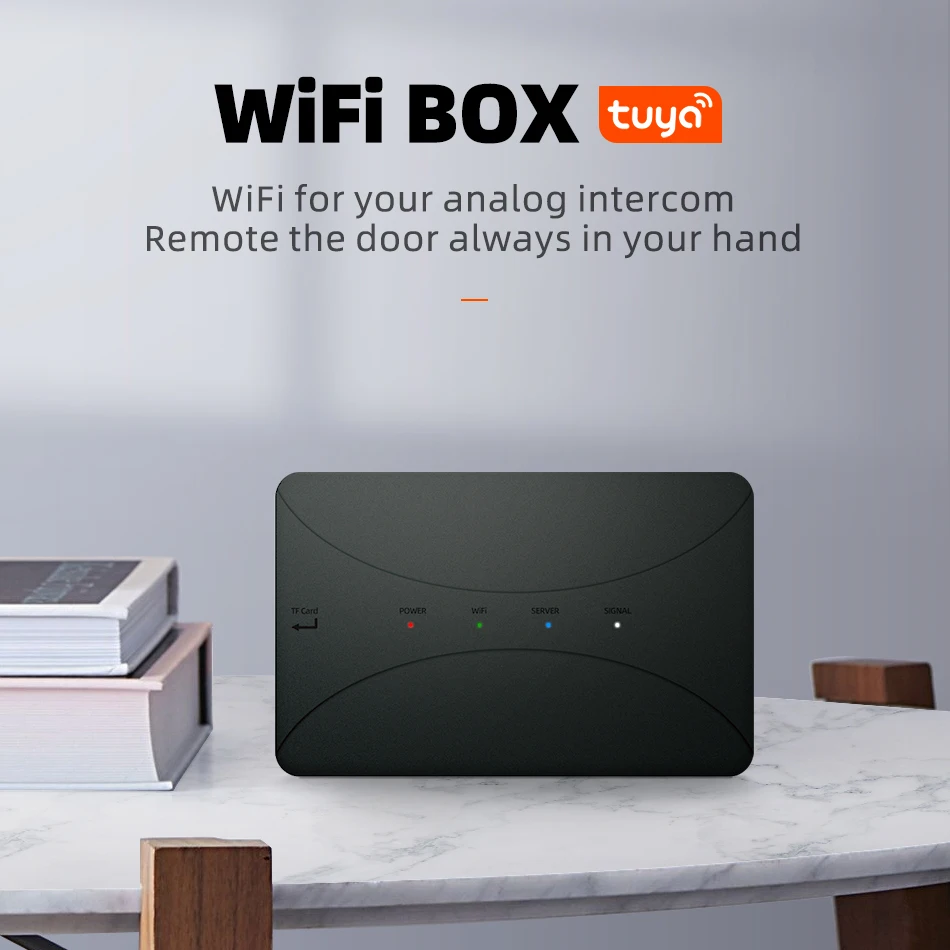

Wireless WiFi IP BOX For Analog Video Doorphone Intercom System Control 3G 4G Android iPhone Tuya APP on Smart Phone
This is a IP box, called Wifi Converter too.It can convert your 4-Wired Analog Video Door Phone system to IP Wifi Video Intercom System, after converted, the IP intercom system will support "TuyaSmart" APP, support remote unlock, monitor the door from smart phone.

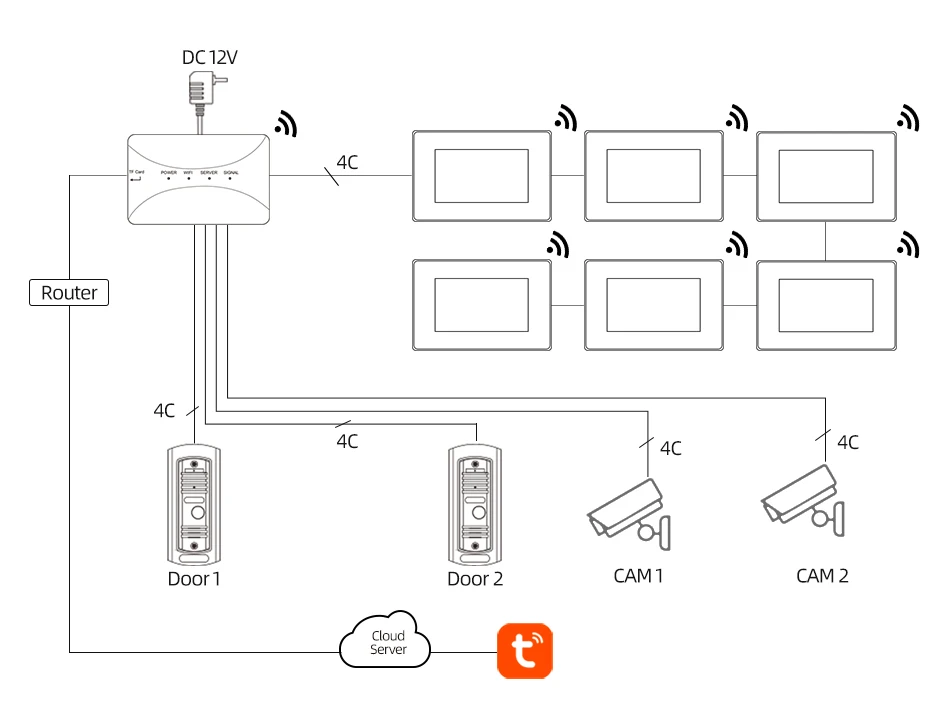

WiFibox is a globally revolution product that convert traditional wired analogy system into WiFi IP intercom system. It can be connected to4wires villa systemormulti apartment intercom system.

-WiFibox is compatible to any of our old and new products.

-All old and new users also can use WiFibox to extend to smart phone.

-With WiFibox, no matter where you are, you won't miss any visitor to your house.

• -Simple and easy DIY setup;

• -Instant incoming call alert: Permanently free App-Tuya Smart

• -Support Android/iOS devices;

• -Support smart phone3G/4G/Wifi connection;

• -Remote unlocking;

• -Three types of Net Confighration Modes

• -Wifi or wired router enabled for option;

• -Support multiple smart phone users;

• -Support villa and multi-apartments system

•

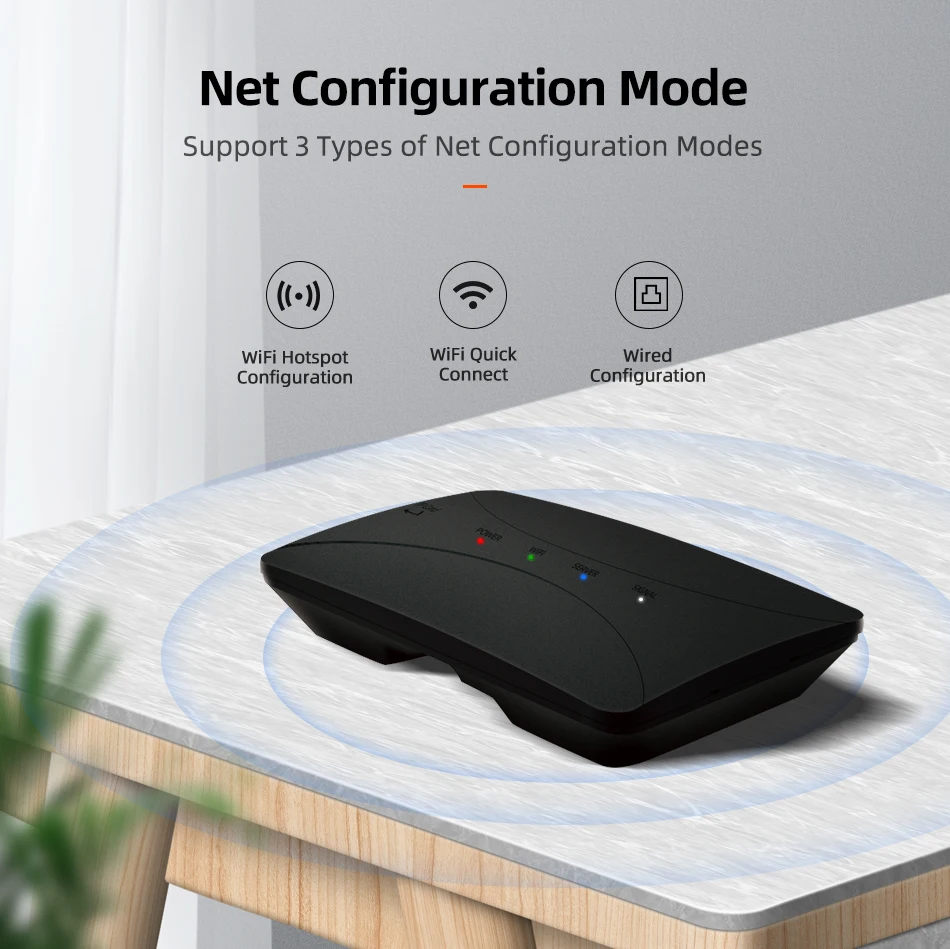

Three types of Net Confighration Modes

-WiFi Hotspot Configuration

-WiFi Quick Connect

-Wired Configuration

Net Confifiguration Mode

(each configuration's step will mention in manual book)

Wireless WiFi IP BOX For Analog Video Doorphone Intercom System Control 3G 4G Android iPhone Tuya APP on Smart Phone

WiFibox is a globally revolution product that convert traditional wired analog system into WiFi IP intercom system. It can be connected to 4wires villa system or multi apartment intercom system.

This is a IP box, called Wifi Converter too.

It can convert your 4-Wired Analog Video Door Phone system to IP Wifi Video Intercom System, after converted, the IP intercom system will support "TuyaSmart" APP, support remote unlock, monitor the door from smart phone.

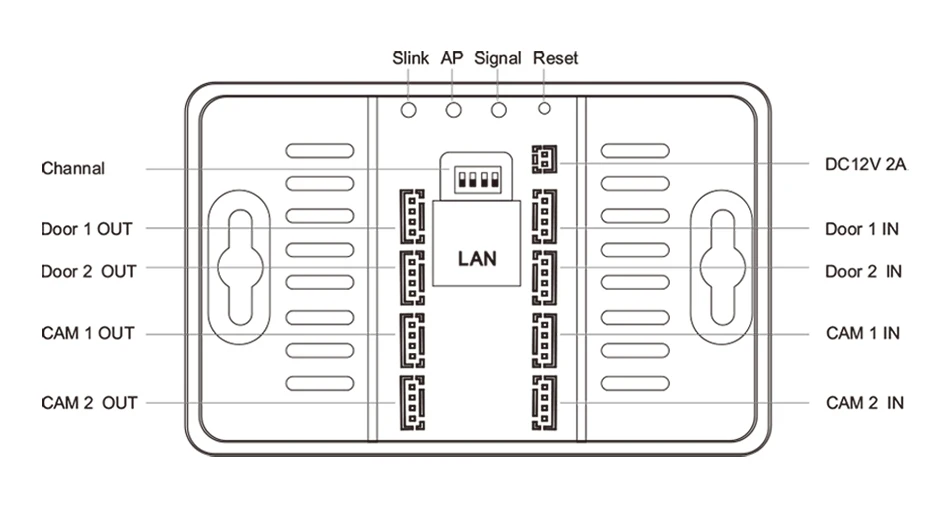

Buttons Instruction:

Slink button:

Switch the confifiguration network mode to WiFi quick connect mode. The switch is valid only when the SERVER light is not always on. Short press the SLINK button to restart the WiFi box. After the restart, the WiFi light (green light) flflashes slowly, and switches successfully.

AP buttoon:

Switch the network confifiguration mode to WiFi hotspot network confifiguration mode. The switch is valid only when the SERVER light is not always on. Press the AP button brieflfly to restart the WiFi box. After the restart, the SERVER light (blue light) flflashes slowly, and the WiFi hospot is generated, and switches successfully. Mobile WiFi hotspot SSID: “doorbell” password “12345678”.

SIGNAL button:

Setup PAL manually, short press SIGNAL button to switch the channel, long press SIGNAL button confifirm and exit from setup.

RESET button:

Long press with 5s, the device will enter into factory setup, and restart the WiFi box again.

Note:

1. Restoring the factory setup manually setting standard will restore automatic recognition. 2. Restoring the factory setup will disconnect from the network, mobile App need to reconfifigure network to connect the device.

Support Tuya Smart APP, Controlling your smart Phone

-You never miss a vistor anytime & anywhere

App Download And Register

.

Rich Interface, Simple Connection

Support CVBS/AHD/TVI/CVI/4 Wires doorbell input

Package:

WiFi Box: 1PCS Plastic anchors:

Screws: 2PCS

4 Pin connection wire: 8PCS

User Manual: 1PCS

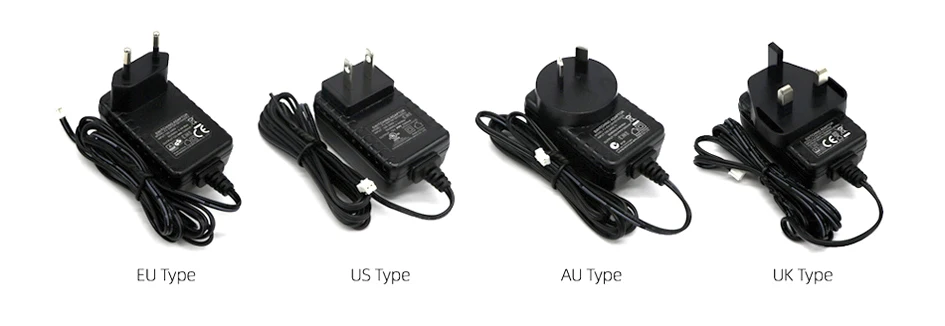

External power supply switch (DC12V 2A): 1PCS

The Extension Cable(5m,15m,25m) Is Not Included, You Need To Buy It Separately According To Your Needs.(Input:100V-240V)
