Описание товара

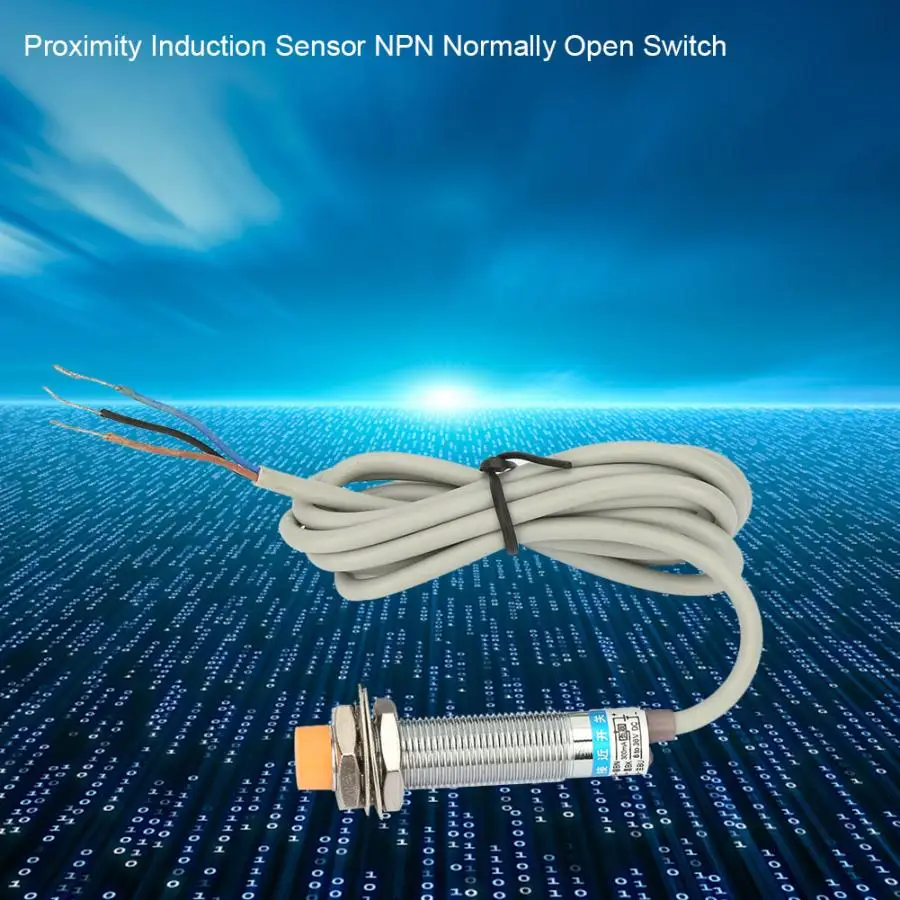

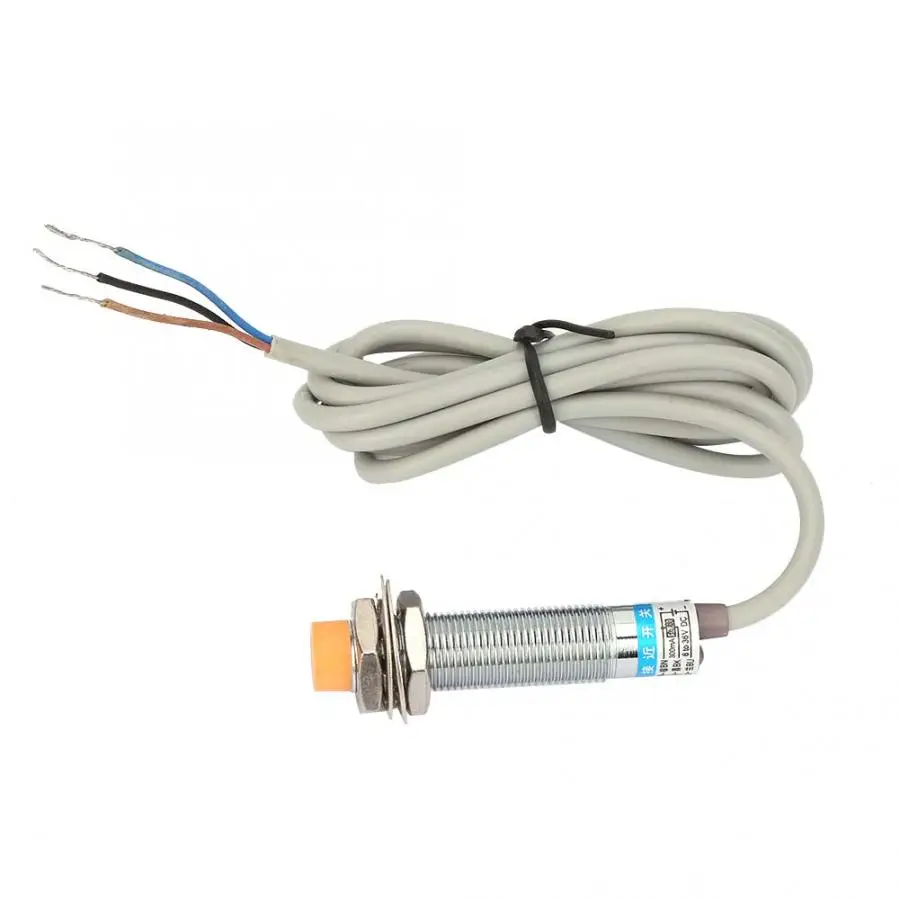

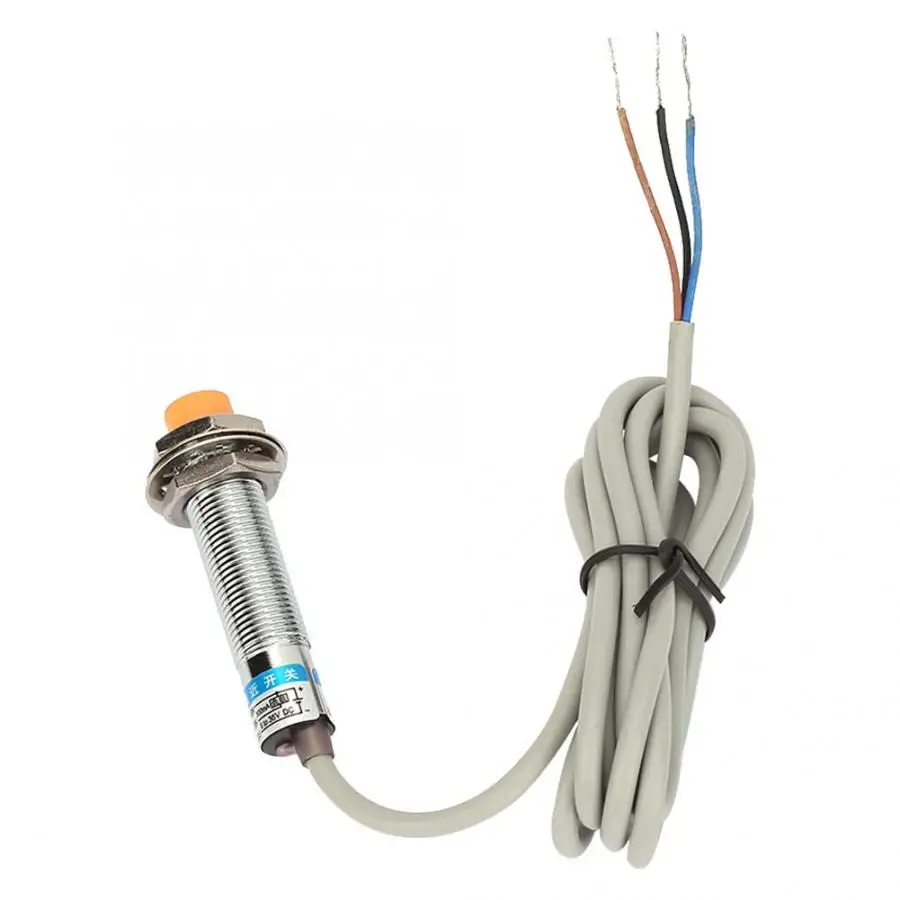

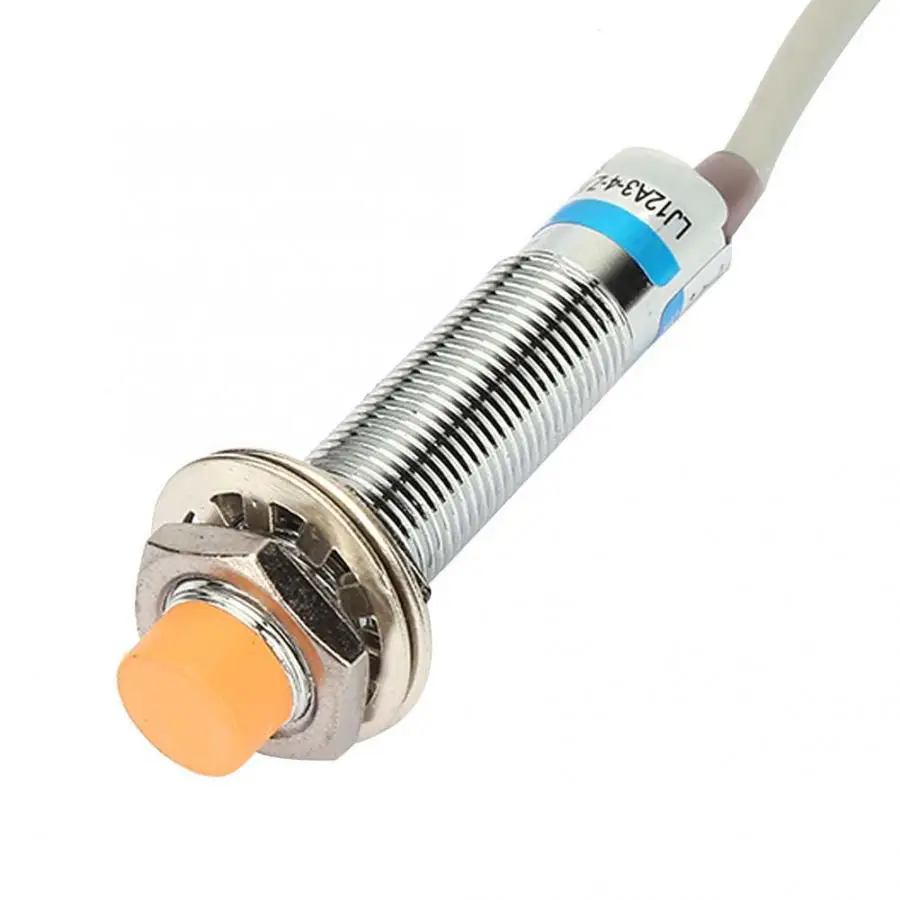

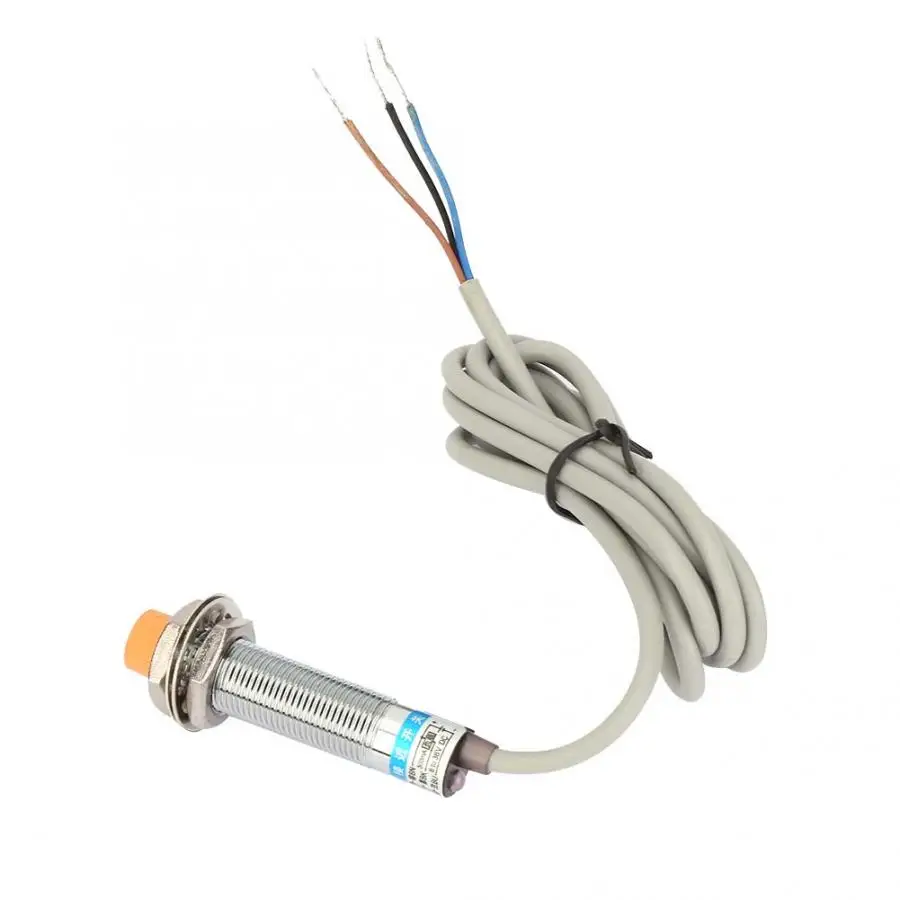

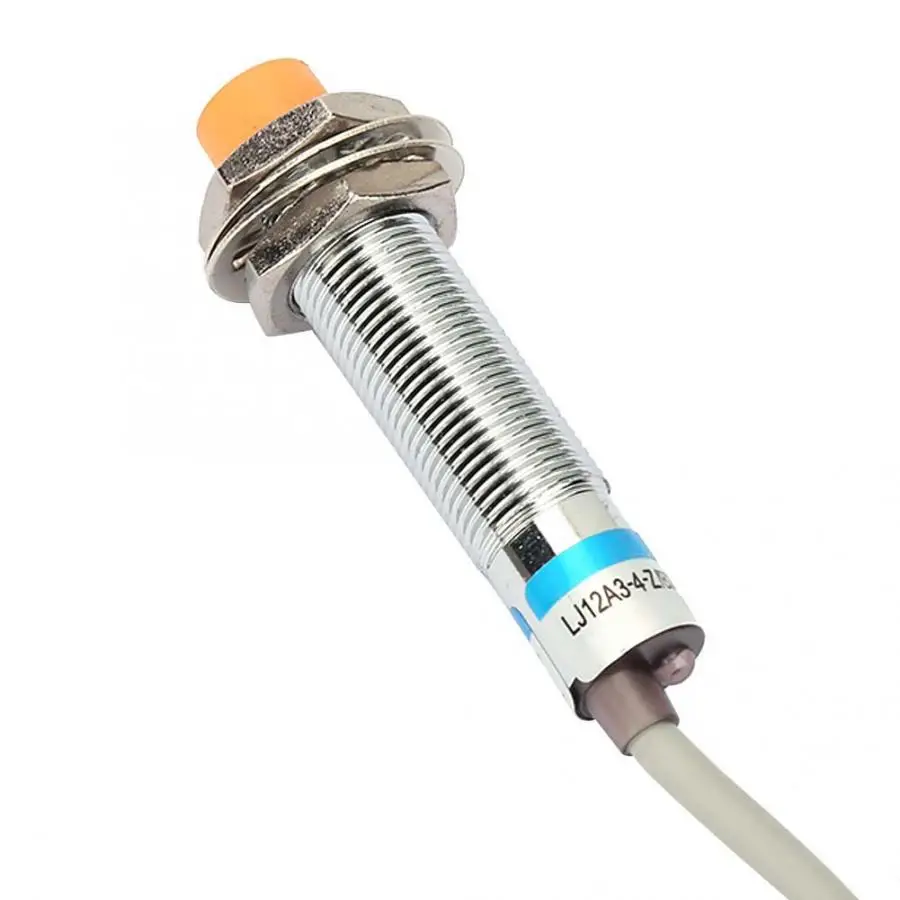

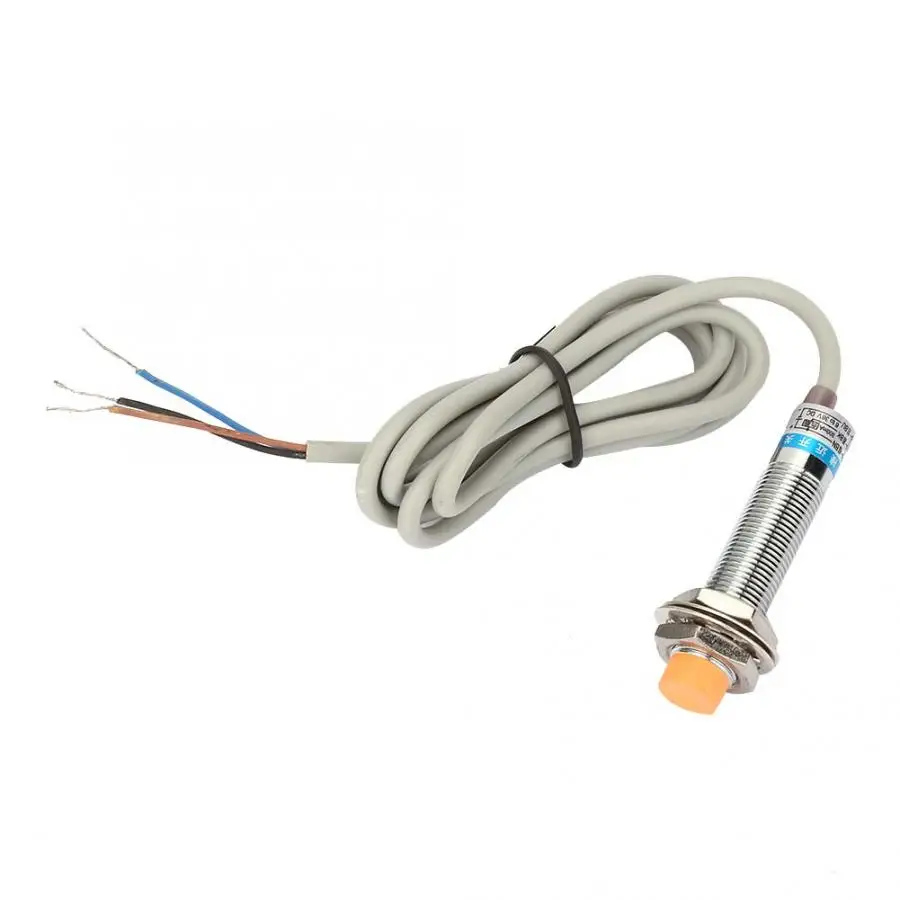

Proximity Sensor Switch LJ12A3-4-Z/BX Proximity Induction Sensor NPN Normally Open Switch Rotary Switch
Features:
- Proximity switch is a position sensor with switch output that can be connected with microcomputer
- It also can drive directly from, electromagnetic relays, counters and contactor to achieve automatic control purposes
- It is a component widely used in automatic control industry for detecting, controlling, and non-contact switching.
- When proximity switch is close to some target object, it will send out control signal.

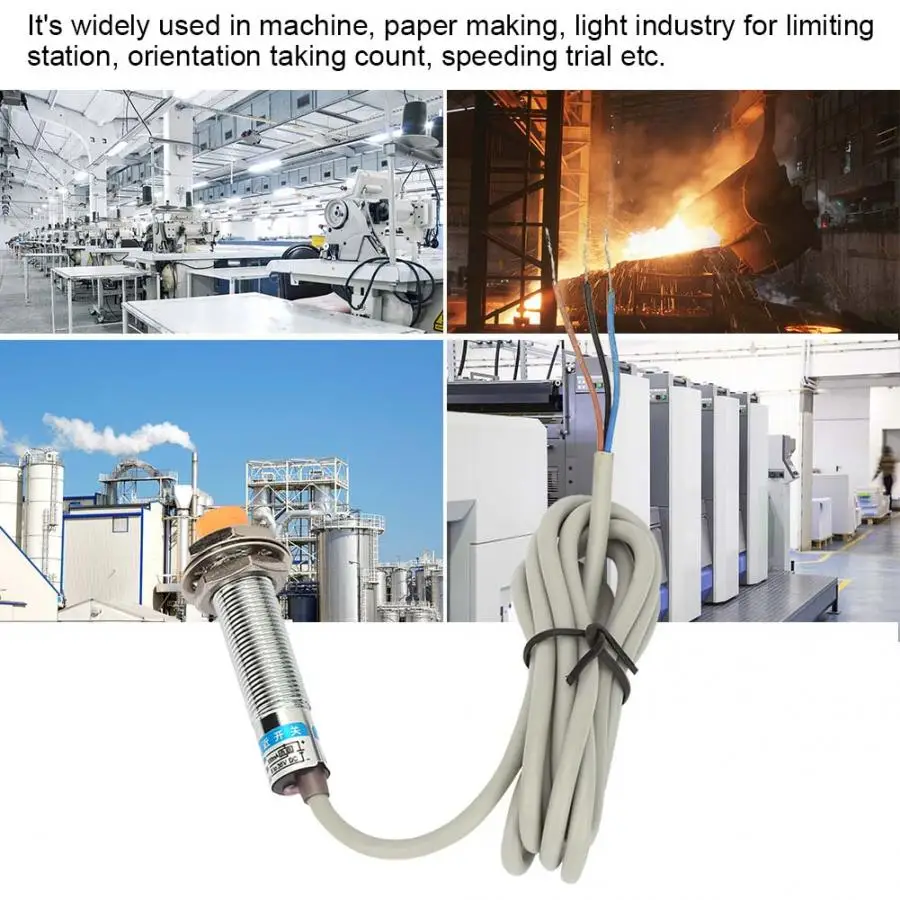

- It's widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial etc.
| Detection distance | 4mm ± 10% | |||
| set distance | 0-3.6mm | |||
| Delay distance | < 10% detection distance | |||
| Detection of objects | Magnetic metal (decreased detection distance for non-magnetic metal) | |||
| Standard test object | iron 15*15*1mm | |||
| Response frequency | DC:0.5kHz AC:25Hz | |||
| power supply voltage | DC:DC12-24V(6-36V)pulse（P-P）10%Below |
|||
| Withstand voltage | AC1000V 50/60Hz 1min Between the charging part and the enclosure | |||
| Voltage effect | Rated power supply voltage range within ±15%, when rated power supply voltage value within ±10% detection distance | |||
| Current consumption | N.P type:13mA below,D type:0.8mA below,A type:1.7mA below | |||
| Control output | N.P type:300mA below,D type:200mA below,A type:400mA below | |||
| Circuit protection | N.P.D type:Reverse connection protection, surge absorption, load short circuit protection, type A: surge absorption | |||
| Ambient temperature and humidity | Activity, save: each - 30 ~+ 65 ℃ (no ice, no frost), action time, save time: each 35-95% RH |
|||
| Temperature effect | Temperature range-30~65℃, at 23 ℃, ±15% detection distance within Temperature range - 25 ~ 60 ℃ , at 23 ℃, ± 10% detection distance within |
|||
| Insulation impedance | More than 50 m Ω (DC500 megger) charge between parts and the shell | |||
| material | Case: brass plated nickel detection surface: ABS | |||
| Weight |
46 g / 1.6 oz(approx.) |
|||
1 x Proximity sensor
