Rational WTA05 0.5um 200mm linear scale TTL 5V 0.0005mm digital glass dro for milling lathe CNC | Автомобили и мотоциклы

Rational WTA05 0.5um 200mm linear scale TTL 5V 0.0005mm digital glass dro for milling lathe CNC | Автомобили и мотоциклы

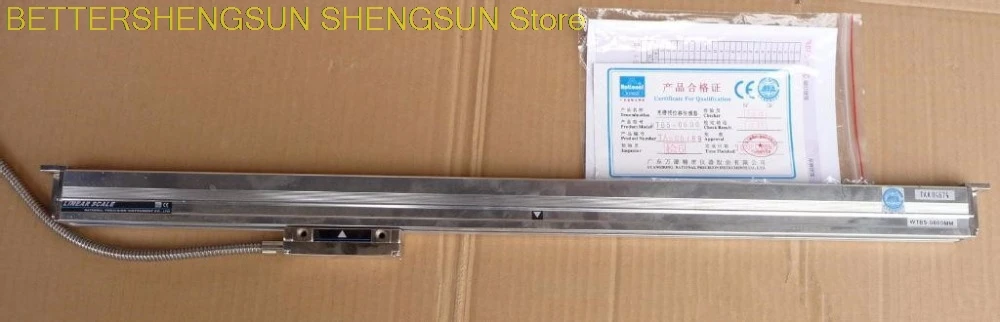

WTA grating ruler series Product use Our company's linear grating ruler for CNC machines can be applied to almost any application. The grating ruler is the best choice for all closed-loop control machines and equipment, such as milling machines, machining centers, boring machines, lathes, and grinding machines. Linear grating dynamic performance, speed high reliability, acceleration along the measuring direction, these properties make it not only can meet the conventional dynamic performance requirements, but also to meet the high dynamic performance of direct drive equipment requirements. Product features Running speed: more than 60 meters per minute Long distance transmission: more than 100 meters, no need to add any interface The sliding part adopts five bearings, excellent repeatability and positioning The signal line is made of multilayer isolating wire net and metal soft shell, which is waterproof and anti-interference The foot body is made of aluminum alloy, treated by anode. The head part is alloy die-casting, hard chromium plated and corrosion resistant Dustproof piece adopts special plastic, it is scratch resistant, corrosion resistant and small friction resistance The individual parts, installation, maintenance and maintenance are simple, waterproof and dustproof, and long service life The sensor adopts glass precise measuring grating as measuring reference Technical specification parameter Name of product precision production output signal length resolution grating working speed of R1 WTA05 (Bo Chi) + (3+3L0/1000) mu m Or higher accuracy, 2 way TTL square wave, 0 degree and 90 degree; Another can provide 4 TTL square wave, 0 degrees, 90 degrees, 180 degrees, 270 degrees 50~1000, 0.001, 0.02mm, 50mm, 30 meters / minute WTA1 (Bo Chi) 50~1000, 0.001, 0.02mm, 50mm, 50 m / m. WTA5 (Bo Chi) 50~1000, 0.005, 0.02mm, 50mm, 90 m / m. Other information The phase deviation is 90 degrees + 15 degrees Operating temperature: 0 ~ 40 DEG C Storage temperature: -20 ~ 50 DEG C WTA nominal length L0=50~1000mm, every 50mm for a file Maximum travel within 500mm: nominal size +30mm, signal line length: 2m 900mm max. stroke: nominal size +50mm, signal line length: 5m
