C7500 EVDO Long SUNG MINI PCIE 3G module provides SMS Phonebook 100% new original | Компьютеры и офис
История изменения цены
*Текущая стоимость 4 741,42 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Jun-24-2026 | 6021.16 руб. | 6141.13 руб. | 6081 руб. |
| May-24-2026 | 4883.80 руб. | 4981.51 руб. | 4932 руб. |
| Apr-24-2026 | 5926.62 руб. | 6045.53 руб. | 5985.5 руб. |
| Mar-24-2026 | 5879.51 руб. | 5997.22 руб. | 5938 руб. |
| Feb-24-2026 | 4694.10 руб. | 4788.45 руб. | 4741 руб. |
| Jan-24-2026 | 5784.48 руб. | 5900.42 руб. | 5842 руб. |
| Dec-24-2025 | 5737.89 руб. | 5852.98 руб. | 5794.5 руб. |
| Nov-24-2025 | 5689.81 руб. | 5803.64 руб. | 5746 руб. |
Описание товара

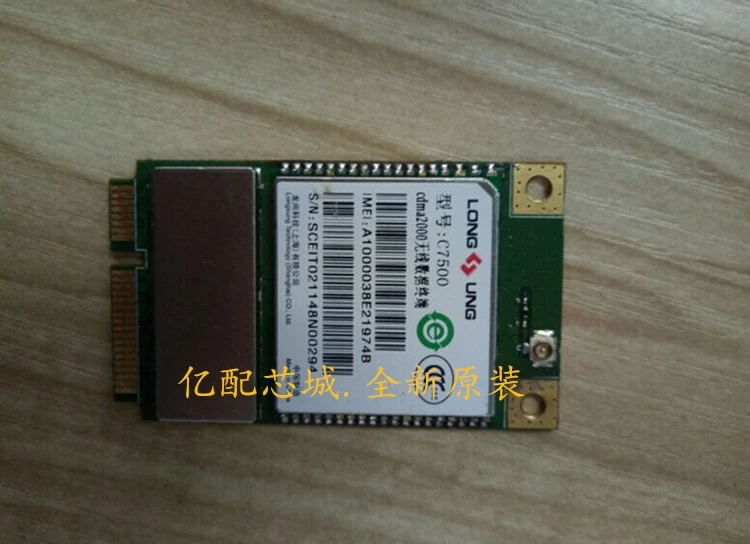

C7500 is a wireless module which is designed for the global market. It is a consumptive product; it can be designed in many kinds of applications which can work on 1xEV-DO/CDMA2000 1x/IS-95 network.
C7500 supports the band is 800MHz.
C7500 provides SMS, Phonebook functions as well as high speed access to 1xEV-DO network. It can be designed in many kinds of applications. Such as Data card, Video monitor, Tablet, Electric-book, , Vehicle equipment, etc.
C7500 integrates the RF and Baseband onto one small PCB(28.0×25.0×2.2mm). It can fulfill all the functions of RF signal receiving and transmitting, Baseband signal processing and audio signal processing so that the customers can realize all kinds of their own wireless products with very few peripheral components.
With surface mounted technology, the low profile and small size of LCC package makes C7500 easily embedded into the low-volume applications and ensures the reliable connectivity with the applications. This kind of package is ideally suited for large-scale.
C7500 supports Longsung extended AT commands, which are very suited for developing all kinds of the customized applications.
Key benefits
● Wireless Broadband access up to: 3.1Mbps(DL)/1.8Mbps(UL)
● One of the smallest EVDO module: 28.0mm×25.0mm×2.2mm
● Support AP-BP bidirectional sleep and wake control
● Support serial interface for voice
● Embedded powerful TCP/IP protocols, multiple Sockets & IP addresses
Key features of C7500
|
Feature |
De ion |
|
|
Power supply |
3.4V～4.2V(Typical 3.8V) |
|
|
Frequency Bands |
Single-Band 800MHz |
|
|
Data |
1xEV-DO- |
DL 3.1Mbps，UL 1.8Mbps |
|
1xEV-DO Rev 0 |
DL 2.4Mbps，UL 153.6Kbps |
|
|
CDMA 1x |
DL 153.6Kbps，UL 153.6Kbps |
|
|
SMS |
Point-to-point MO and MT SMS cell broadcast Support Text and PDU mode |
|
|
Temperature |
Normal operation:-20℃~+65℃ Restricted Operation:-30℃~+75℃ Storage temperature:-40℃~+85℃ |
|
|
ESD |
VBAT, GND: Air dis ge ±8KV，Contact dis ge ±4KV RF interface: Air dis ge ±8KV，Contact dis ge ±4KV Else ports: Air dis ge ±4KV, Contact dis ge±2KV |
|
|
Max power RF transition |
0.25W |
|
|
Receiver sensitivity |
<-106dBm |
|
|
Current consumption |
Off mode: <50uA Sleep mode: <4mA Idle mode: <45mA Voice mode: <260mA Data mode: <500mA |
|
|
Connector |
37-pin LCC SMT package |
|
|
Antenna connector |
LCC SMT Antenna PAD, impedance of 50Ω |
|
|
Dimensions |
28.0mm×25.0mm×2.2mm |
|
|
Weight |
<5.0g |
|
|
Fixed structure |
Fixed by SMT |
|
|
AT commands |
Standard AT commands (Hayes 3GPP TS 27.007 and 27.005) Support LongSung Extend AT commands |
|
|
Approvals |
RoHS |
|
