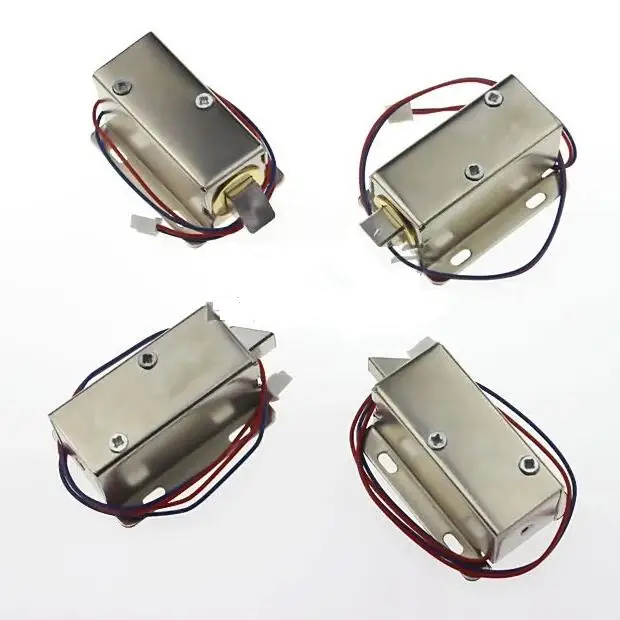

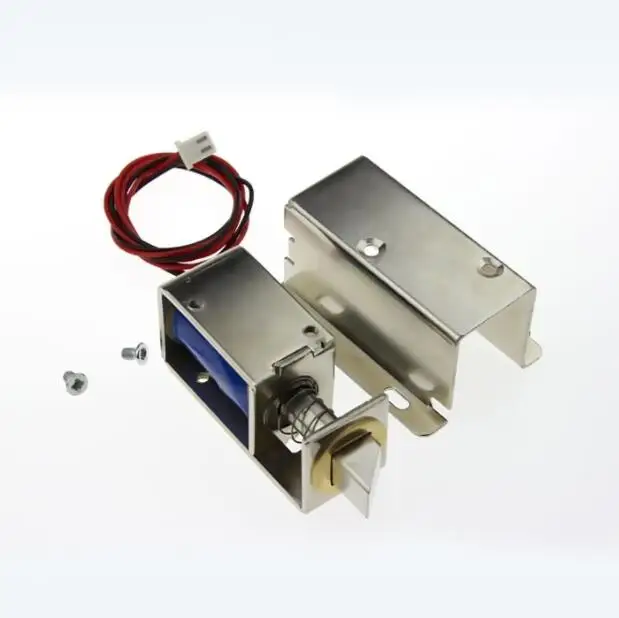

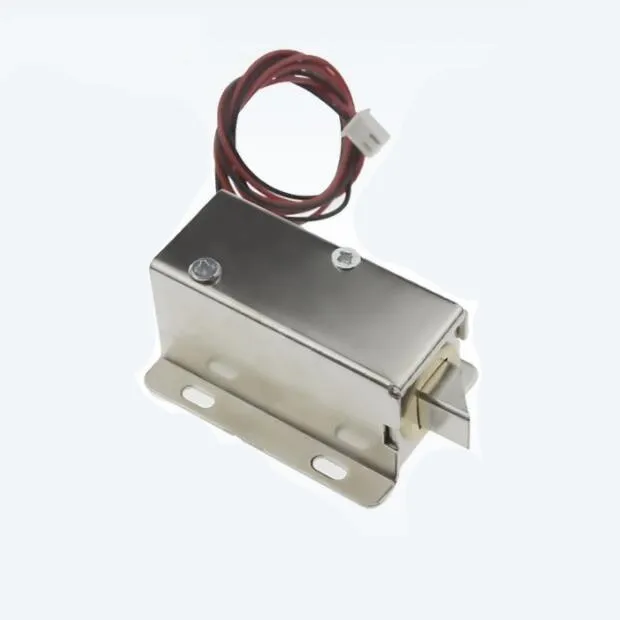

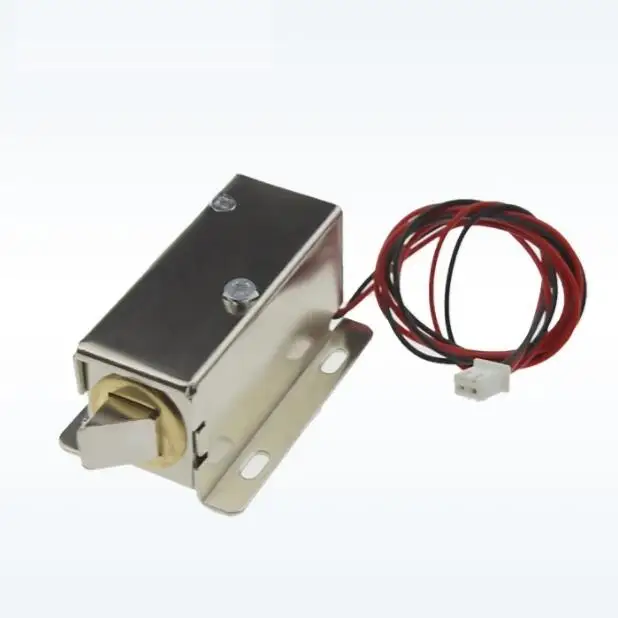

DC12V electromagnetic lock switch /drawer electric | Электроника

---

  This small electric lock uses the working principle of the solenoid valve. It only supports the momentary power-on unlocking. It does not support the long-time power-on work and the excessive frequent unlocking action, otherwise it will burn the small electric lock.   Note: It is recommended that the power-on unlocking time should not exceed 5 seconds, and the average unlocking interval should be no less than 2 minutes.   Features:   1, model: Y-03 2, the scope of application: a variety of doors, windows, boxes, cabinets, such as lockers, distribution cabinets, safes, savings cabinets, can be used in a variety of boxes, cabinets and other occasions, with the store's safe deposit box, lockers, etc. Installation and use.   Note that the electronic lock is unlocked by power, and the unlocking time is (1-30 seconds). It is suitable for instant power-on unlocking.   Main parameters of electric plug lock: Use voltage: 12V   Allowable current: 0.8A   Power consumption: 9.6W   The energization action time ≤ 1s allows continuous energization time ≤ 10s;   Pin telescopic length: 10mm;   Uses: It can be used in various boxes, cabinets and other occasions where it is frequently opened, and it can be installed and used in the safe deposit box and locker of the shopping mall.   Power will expand and contract. When the switch is turned on, the lock will be retracted and the door will open;   When the switch is disconnected from the power supply, the lock pin is extended and the door is locked and cannot be opened;   The electric plug lock is energized instantaneously, and the power consumption is saved. The common type has the advantages of large size, simple structure, convenient installation and low use cost.   About installation and wiring: Power: Dc12V   Red line connection: 12V+   Blue line connection: 12V Wiring: Cut the plug directly   Unlocking time: no more than 10 seconds in an instant Working principle: power off, power off
