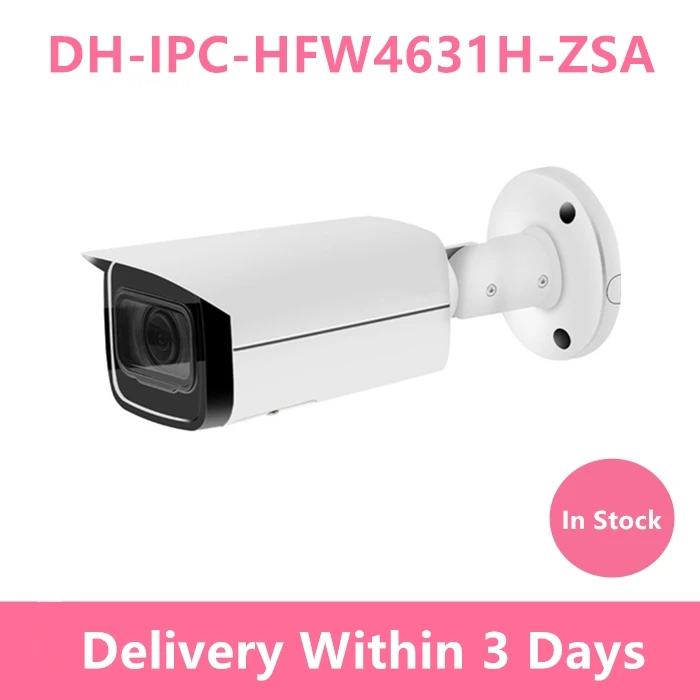

DH OEM VF lens Zoom Auto Focus Bulle IP Camera CCTV Security POE 6MP Night 80m IR 2.7~13.5mm H.265 IPC-HFW4631H-ZSA | Безопасность и

DH OEM VF lens Zoom Auto Focus Bulle IP Camera CCTV Security POE 6MP Night 80m IR 2.7~13.5mm H.265 IPC-HFW4631H-ZSA | Безопасность и

Feature

1/2.9” 6Megapixel progressive scan CMOS H.265&H.264 triple-stream encoding ,ROI , SVC 20fps@6M(3072×2048) Smart Detection supported WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC Multiple network monitoring: Web viewer, smartpass 2.7~13.5mm VF lens, Motorized Zoom,Auto focus Max. IR LEDs Length 60m ,Smart IR Support Built in MIC Micro SD memory, IP67, IK10, PoE/12V DC power

Details

Camera Image Sensor 1/2.9” 6Megapixel progressive scan CMOS Effective Pixels 3072(H) x 2048(V) Scanning System Progressive Electronic Shutter Speed Auto/Manual, 1/3~1/100000s Minimum Illumination 0.002Lux( Color) 0.0002( black/white) 0Lux(IR on) S/N Ratio More than 56dB IR Distance Distance up to 60m IR On/Off Control Auto/ Manual IR LEDs 2 Lens Lens Type Motorized Zoom,Auto focus Mount Type Board-in Focal Length 2.7~13.5mm Max. Aperture F1.6~3.13 Angle of View 2.8mm:H: 95.1°~ 25.7° 3.6mm;V: 64.3°~18.1° Focus Control Auto Close Focus Distance 0.3m Intelligence IVS Tripwire, Intrusion, Object Abandoned/Missing Video Compression H.265/H.264/MJPEG Streaming Capability 3 Streams Resolution 50HZ:Main (3072×2048@20fps),Sub(704×576@20fps),Third(1280×720@6fps); Main(2592×1944@25fps),Sub(704×576@25fps),Third(1280×720@4fps) 60Hz: Main(3072×2048@20fps),Sub(704×480@20fps),Third(1280×720@7fps); Main(2688×1520@30fps),Sub(704×480@30fps),Third(1280×720@10fps)" Bit Rate H.264:32K~10240Kbps H.265:12K~9984Kbps Day/Night Auto(ICR) / Color / B/W BLC Mode BLC / HLC / WDR(120dB) White Balance Auto/Natural/Street Lamp/Outdoor/Manual Gain Control Auto/Manual Noise Reduction 3D DNR Motion Detetion Off / On (4 Zone, Rectangle) Region of Interest Off / On (4 Zone) Mirror Off / On Privacy Masking Off / On (4 Area, Rectangle) Audio Compression G.711a/ G.711Mu/ AAC/ G.726 MIC 1 Built in MIC Network Ethernet RJ-45 (10/100Base-T) Protocol HTTP; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP;IGMP; SNMP Interoperability ONVIF, PSIA, CGI;GB/T28181 Max. User Access 10 Users /20 Users Edge Storage NAS;FTP;128G Micro SD memory Local PC for instant recording Web Viewer IE Management Software Smart PSS, GDMSS,IDMSS, Easy4ip Smart Phone IOS, Android Electrical Power Supply DC12V, PoE (802.3af)(Class 0) Power Consumption <13.2W Environmental Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Ingress Protection IP67,IK10 Vandal Resistance N/A Construction Casing Metal and Plastic Dimensions 186.4mm×87mm x 84.2mm Net Weight 0.77Kg Gross Weight 1.1Kg

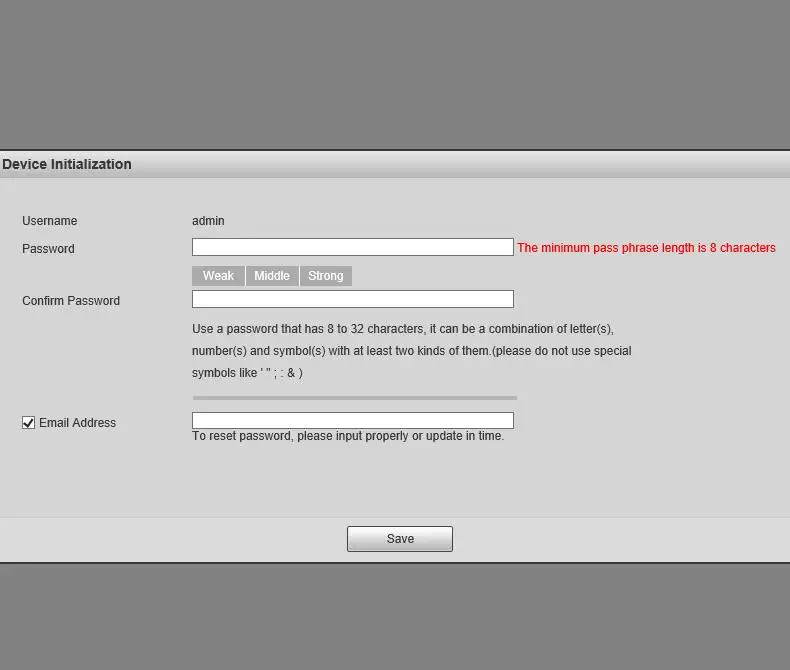

IE

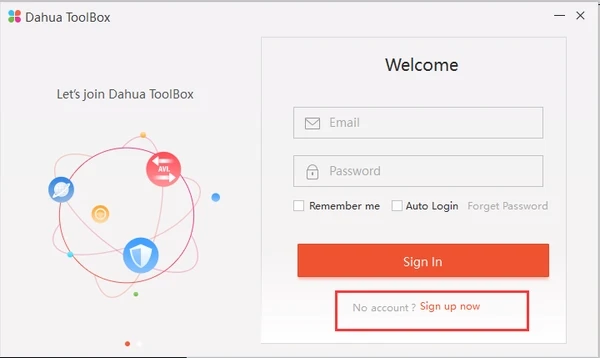

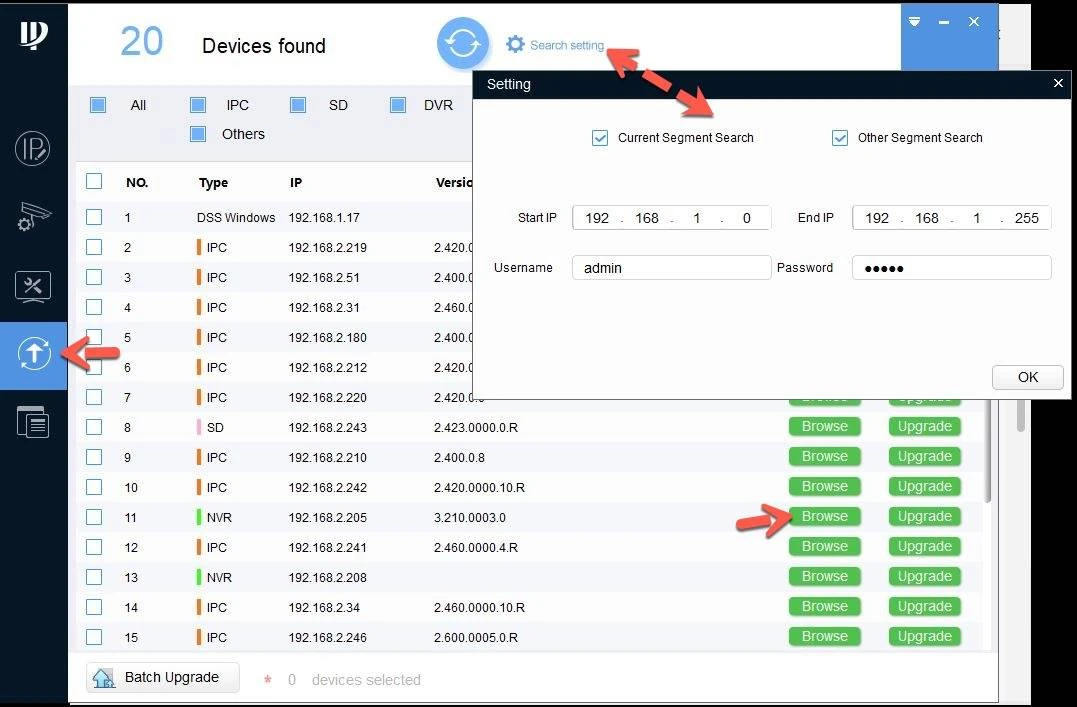

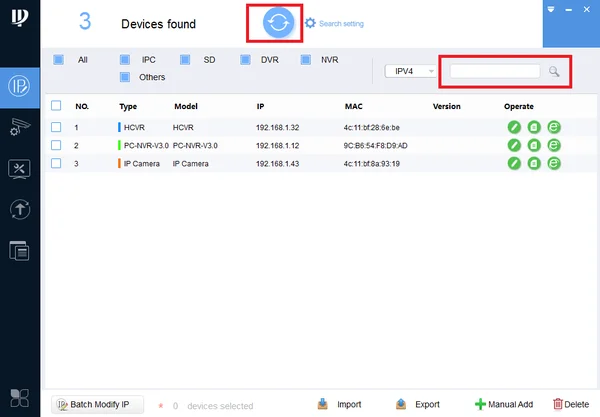

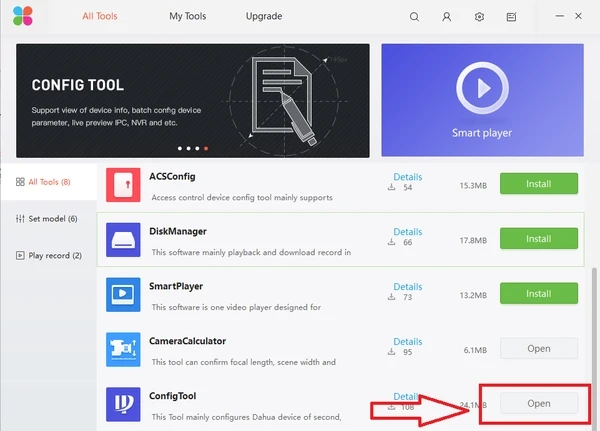

PC Client

FAQ

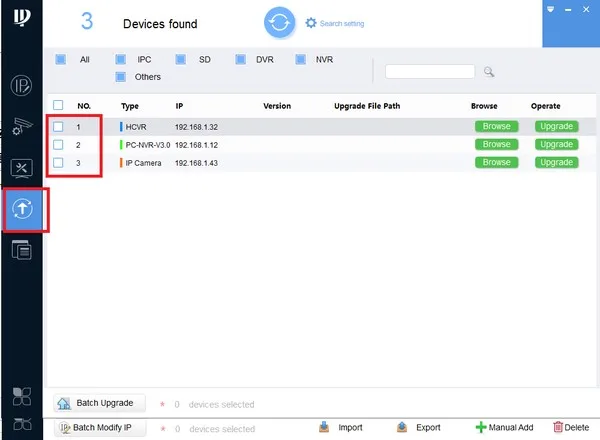

can i upgrade the firmware?

No, It not support upgrade the firmware.
