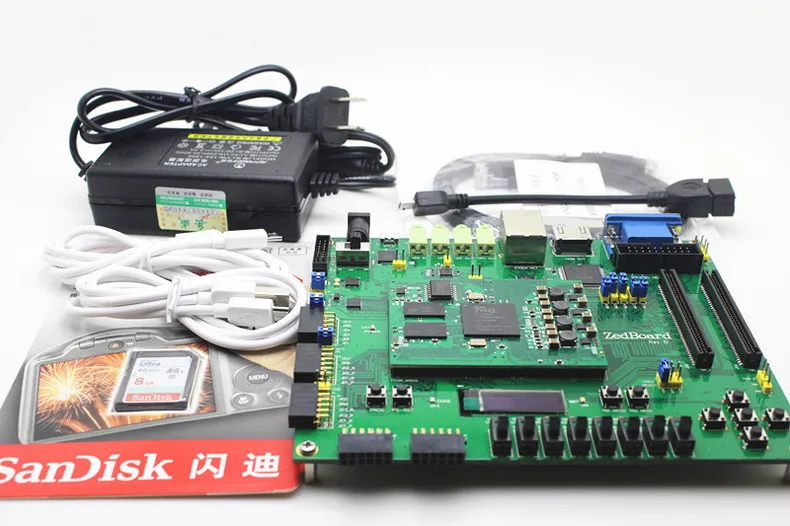

Shipping list:

1. ZEDBOARD is fully compatible with one motherboard.

2,12 v 2A power converter one.

3. Two MICRO USB cables (one connects to the USB serial port for terminal, and the other can be used as the download and debugging cable).

4. One MICRO USB OTG cable (used for USB OTG test, such as external mouse or keyboard connection)

5,8 G SD card, original brand of high quality.

6. One SD card reader.
7,1 m gigabit (compatible with 1000M/100M/10M) Ethernet cable.

The boards shipped now are equipped with radiator fins and 3M adhesive stickers, which can be affixed by themselves. The pictures have not been updated.

The current XC7Z020 chips are all industrial grade high speed chip -2I.New chip with qr code.As a sales promotion, the price can be raised at any time.

Speed and stability are much higher than -1c.The chip costs about twice as much as minus 1C.

I have been engaged in the research and development of processor system, FPGA verification and the establishment of software and hardware development environment since I released the open-source 32-bit MIPS processor soft-core MIPS789 of the 5th level assembly line in 2007.Has worked for slide dragon core group, jun zheng, in the number of countries rui...

You may notice that you can directly access our online store through SYSCLK.taobao.com. Yes, I registered the SYSCLK domain name in 2008, which contains my ideal and interest: every detail research and grasp from operating SYStem SYStem to CLocK.

Luckily, ZYNQ7000 series chips were born out of the blue. Within four years, after I used ZYNQ7000 to do several projects, I became more and more fond of ZYNQ7000 series system. Therefore, I decided to make a popular ZEDBOARD, do supporting materials by myself, and promote it.I plan to focus on this for at least five years from now.I seem to see that with the promotion of Z7 and the popularization of Z7 series chips in 2-3 years, the application of Z7 will sweep everything and the popularity of Z7 will be unstoppable.Whether you are engaged in embedded automation software or hardware, there will be Z7 development capability requirements.

In addition to high quality stable, highly compatible board, I hope complete, detailed, professional, in-depth tutorials and perfect service to become our outstanding features!You will receive more than just boards, but our ZYNQ7000 development guidance and technical support.

We are willing to provide you with uncompensated ZYNQ7000 and FPGA technology services. Please contact me if you have any technology in this field.Make friends, no matter whether buy board, can contact me to consult and discuss.For customers who have purchased products, I will do my best as a technical consultant or technical support to provide technical support and help them learn and develop all the way!

Group id of more than 1000 active users:.

In addition, there are video tutorial download address in the group file.These video's are free to download, but the corresponding examples are only available after purchasing the development board.

The tutorial directory has been updated recently

• the processor

The Zynq™-7000 AP SoC xc7z020-clg484-100 logical resources are about four times as large as 7Z010!Meet the requirements of running video!

• memory

O 512 MB DDR3

O 256 Mb quad-spi Flash

O 8 GB SD card

• communication

O Onboard USB - the JTAG Programming

O 10/100/1000 Ethernet

O USB OTG 2.0 and usb-uart

• extension

O External connector (68 single-ended or 34 differentii /Os)

O 5 Pmod™ compatible headers (2x6)

O Agile Mixed Signaling (AMS) headers

The clock,

O 33.33333 MHz clock source for PS

O 100 MHz oscillator for PL

• display

O HDMI output supporting 1080p60 with 16-bit, YCbCr, 4:2:2 mode color

O VGA output (12-bit resolution color)

O 128 x32 OLED display

• configuration and debugging

O Onboard USB - the JTAG interface

O Xilinx Platform Cable JTAG connector

• general IO

O 8 user LEDs

O 7 push buttons

O eight DIP switches

1. What are the modifications compared with the original ZEDBOARD?
A: there are four main differencesA, USB serial port chip official use of uncommon CYPRESS chip, driver compatibility is not very good, in software from the side and unstable. We use the most stable CP2102 chip.
B. The original ZEDBOARD must turn on the power before opening the serial port.
