F450 Quadcopter Rack Kit Frame APM2.8 Flight Controller and 7M GPS with Stand A2212 1000KV 30A 1045 Props For Rc | Игрушки и хобби

F450 Quadcopter Rack Kit Frame APM2.8 Flight Controller and 7M GPS with Stand A2212 1000KV 30A 1045 Props For Rc | Игрушки и хобби

Built from quality glass fiber and polyamide nylon.
Integrated PCB connections for direct soldering of your ESCs
Pre-threaded brass sleeves for all of the frame bolts.
Colored arms for orientation to keep you flying in the right direction.
Large mounting tabs on main frame bottom plate for easy camera mounting.
Easy assembly.

Specs:
Width: 450mm
Height: 55mm
Weight: 280g (w/out electronics)
Motor Mount Bolt Holes: 16/19mm
G.Weight: 395g

Wheelbase: 17.7in/450mm
Net weight: 272g
Made by advanced engineering material,super strong & smooth

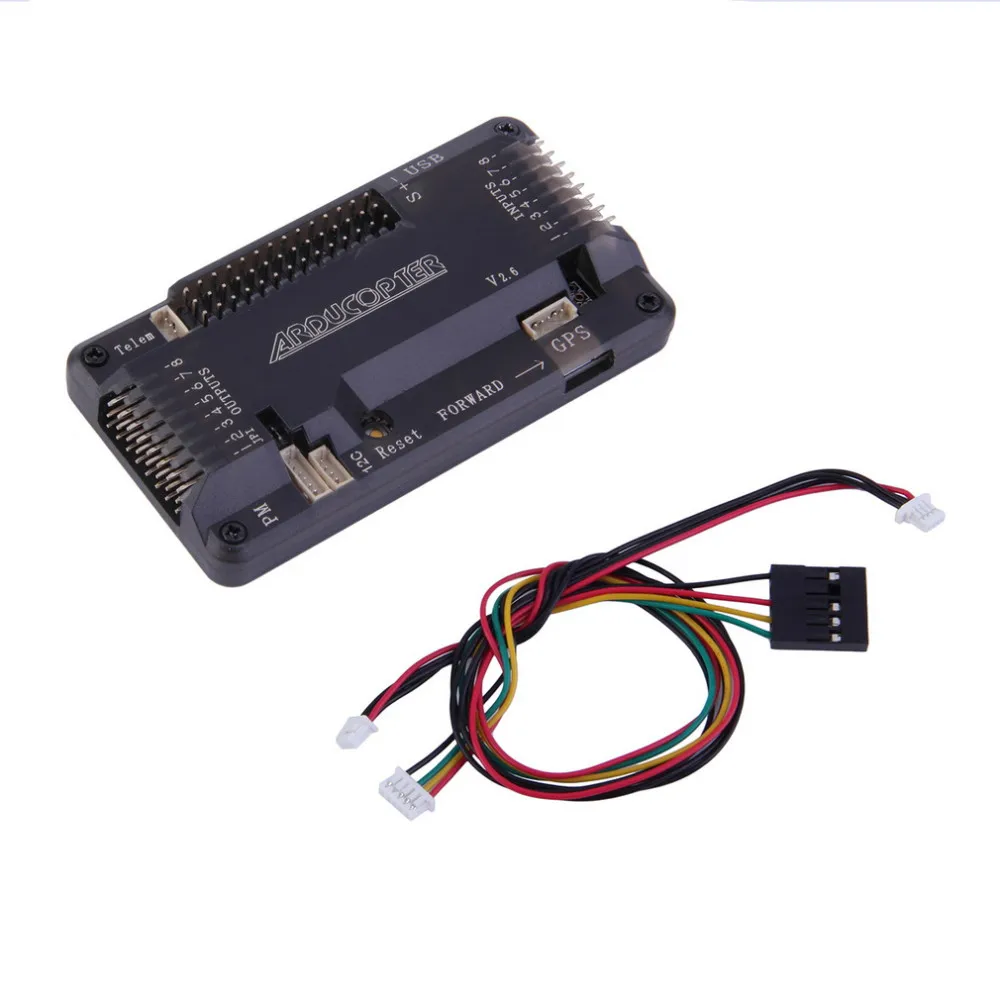

APM2.8 ArduPilot Mega 2.8 APM Flight Control Board

APM is an open source flight control, can you play APM well depend on individual ability. Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first.

Features:

- Arduino Compatible!
- Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally
- Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer
- Onboard 4 MegaByte Dataflash chip for automatic datalogging

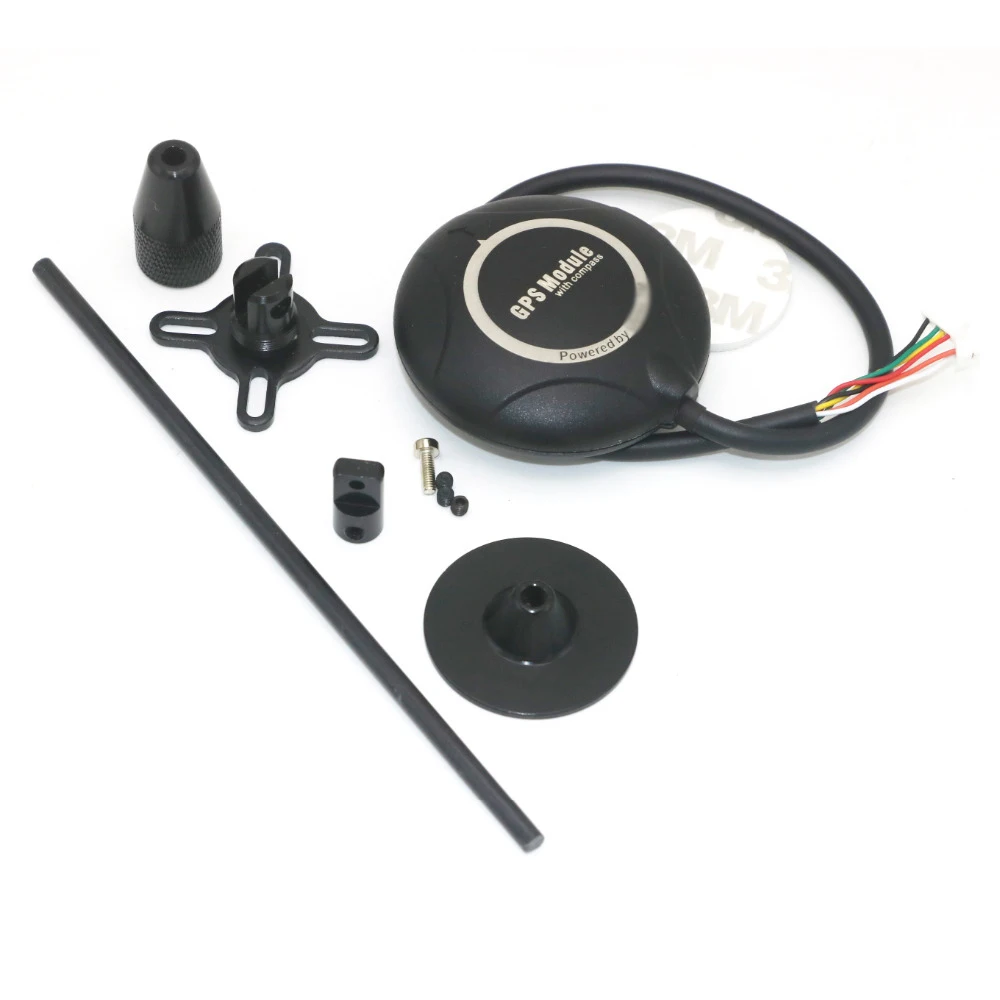

- Optional off-board GPS, uBlox LEA-6H module with Compass.
- One of the first open source autopilot systems to use Invensense's 6 DoF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
- Atmel's ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively

XXD 2212 1000kv motor
KV: 1000
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: Φ27.5 x 30mm
Shaft Diameter: Φ3.17mm
Weight: 47g

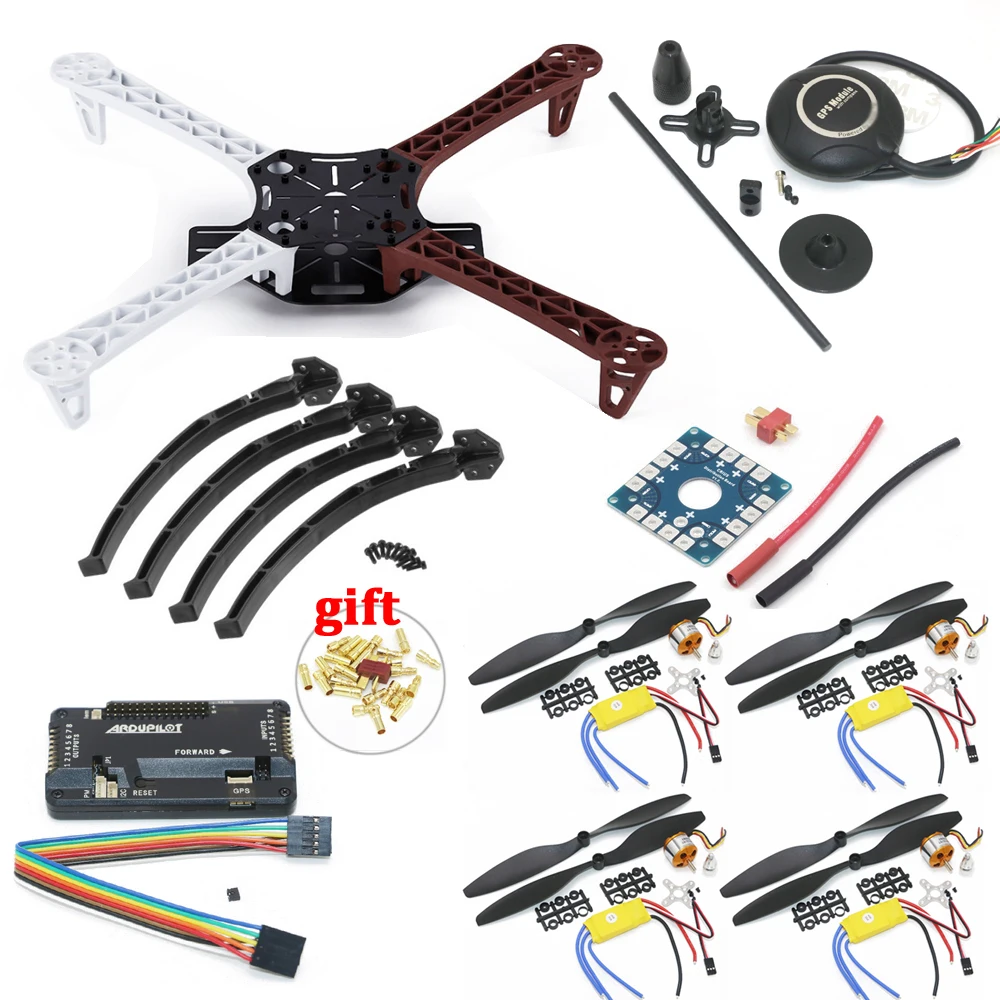

Package Included:

F450 Quadcopter Frame x1
APM2.6 Flight Control x1
7M GPS x1
ESC Connect Board  x1
2212 1000KV Brushless motor  x4
Brushless 30A ESC  x4
1045 Propeller  x4 (2Pairs)
Not assembled, just a kit

ESC
