Radiolink is a high technology manufacturing company dedicated to researching, manufacturing and marketing of RC model radio transmitters. Our products included: RC transmitter, flight controller, receiver, GPS, drone etc. We are committed to providing customers with a high reliability and high performance product solution, as well as providing technical support and friendly after-sales service.

Note:

Please choose Mode 1(Right Throttle) or Mode 2(Left Throttle)as you need!

The operation menu ONLY support English and Chinese.

User Manual Download: http://radiolink.com.cn/doce/UploadFile/ProductFile/T8SManual.pdf

2019 Radiolink New T8S 8CH Mini RC Transmitter with R8FM Mini Receiver 2.4G Remote Handle Controller Game Gamepad for Drone Fixed Wing, Multicopter, Quad, Car and Boat

T8S 8ch radio controller features:

Excellent Anti-interference: FHSS 67CH pseudo random frequency hopping, anti-interference performance to both same and different frequency bands and stable remote control distance 2000 meters in the air.

8CH: Only 3ms for 8 channels synchronously, support SBUS&PPM&PWM output.

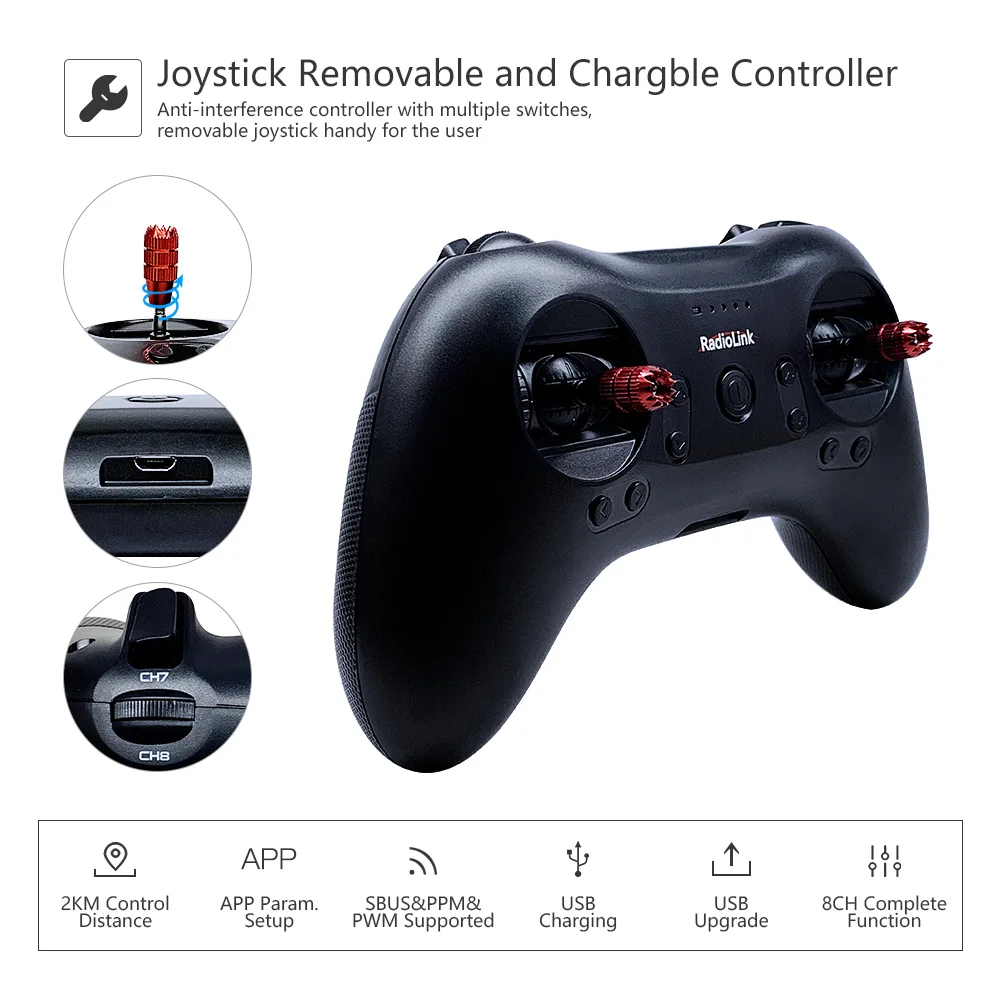

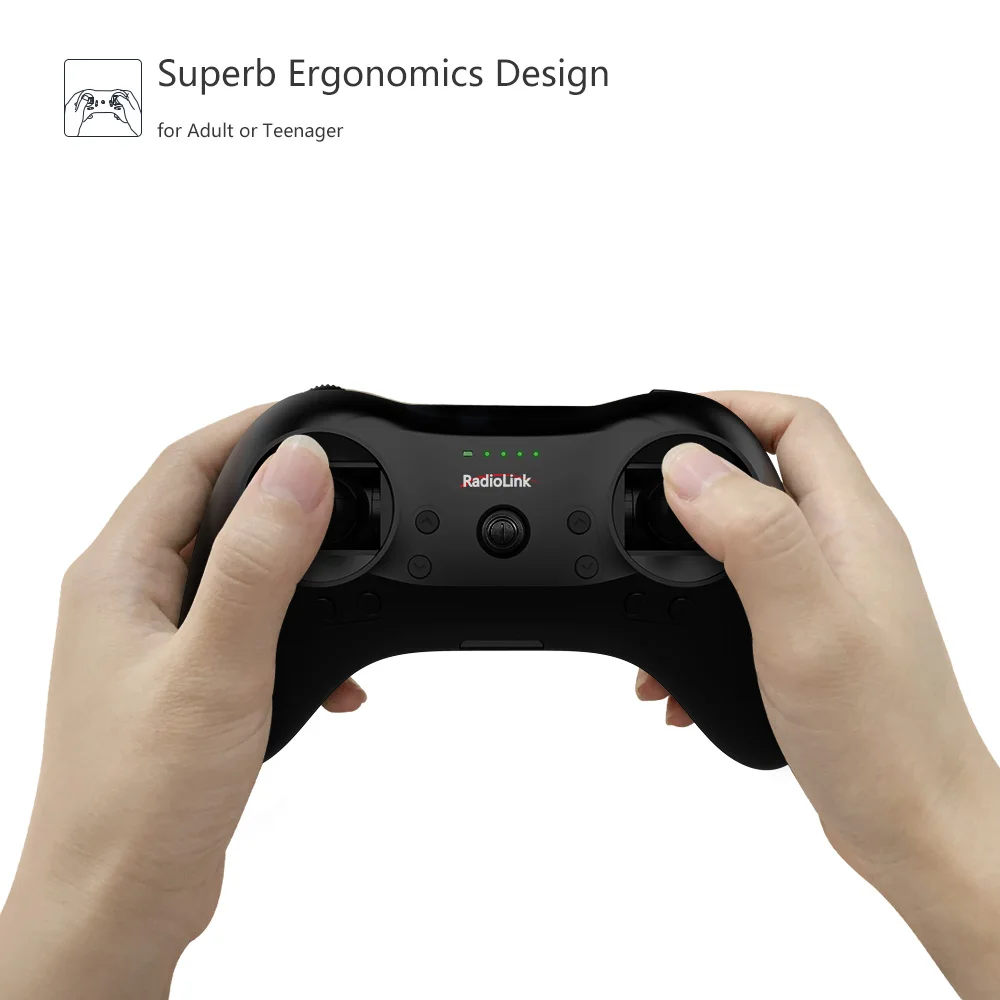

Ergonomics Design: Perfect ergonomics design with the small size and suitable weight and the removable joysticks personalized to player’s hands and make the long flight more pleasant.

USB Charging and Low Consumption: The built-in1S 900mAh lithium battery can be directly charged by computer or mobile charger with a USB cable. Total using time lasts 5 hours long when battery is fully charged.

Data Copy: Only personalize the parameters once and data can be easily copied in quantities to the same model remote controllers.

Low Battery Alarming: When the voltage is less than 3.7V, the green battery indicator will flash with Dee sound as an alarm.

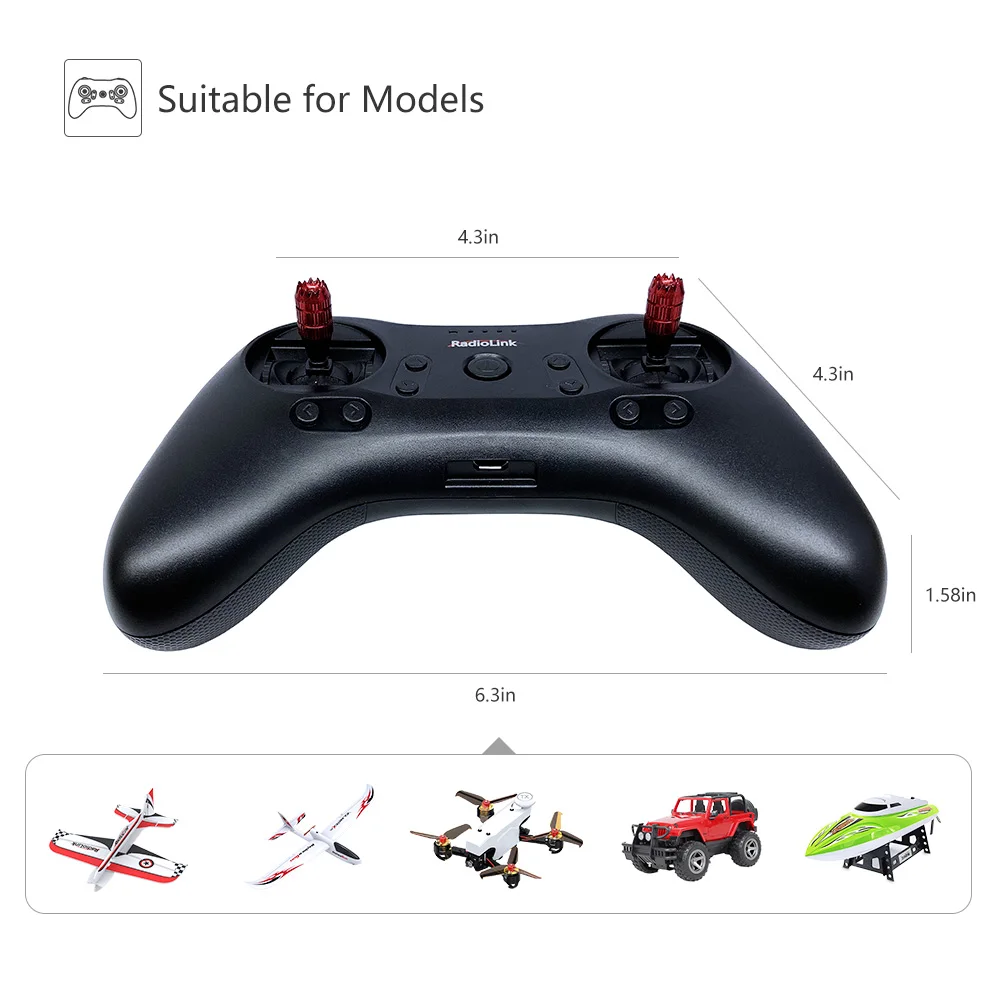

Support Multiple Models and Receivers: Compatible with fixed-wings, gliders, multicopters, RC cars and boats. T8S can use with R6FG,R6F, R7FG, R8EF, R8FM mini receiver.

App Setup and USB Upgrade: Parameters can be easily setup and modified with Android App. USB port design with new functions added and keeps T8S always advanced.

Programmable Mix Control: 5-8CH can be customized of programmable mix control.

Navigation App setting reminds you next step setting, easy to use it even without user manual.

Basic menu, advanced menu and various mix controls can be personalized to channel 6 and above. Flight modes are set with the 3-position switches in the fight controller PIX by default.

How to charging T8S?

Use the Android USB cable to charge it.

T8FB RC Transmitter Specifications:

• Channels: 8ch

• Mode: Mode 1 or Mode 2

• Frequency: 2.4GHz ISM band（2400MHz~2483.5MHz）

• Channel Bands width: 400KHz

• Spread Spectrum: FHSS

• Adjacent Channel rejection: >38dbm

• Transmitter Power: <100mW (20dBM

• Operating Voltage: 4.2V

• Sensitivity: -104dB

• Speed Rate：38kbps

• PWM Output: 1.0ms~2.0ms

• Control Range: 2000meters(according to the enviroment)

• Size: 16.2*5.7*9.5cm

• Weight: 0.142kg

R8FM Receiver Specifications

• Signal output: SBUS,PPM

• Channel: 8ch

• Control Distance: 1000m on air

• Working Voltage: 4.8-6V

• Working Current: 30mA(input voltage 5V)

• Section precision: 4096

• Size: 0.62*0.85*0.4in/ 1.6*2.1*1cm

• Weight: 2.5g

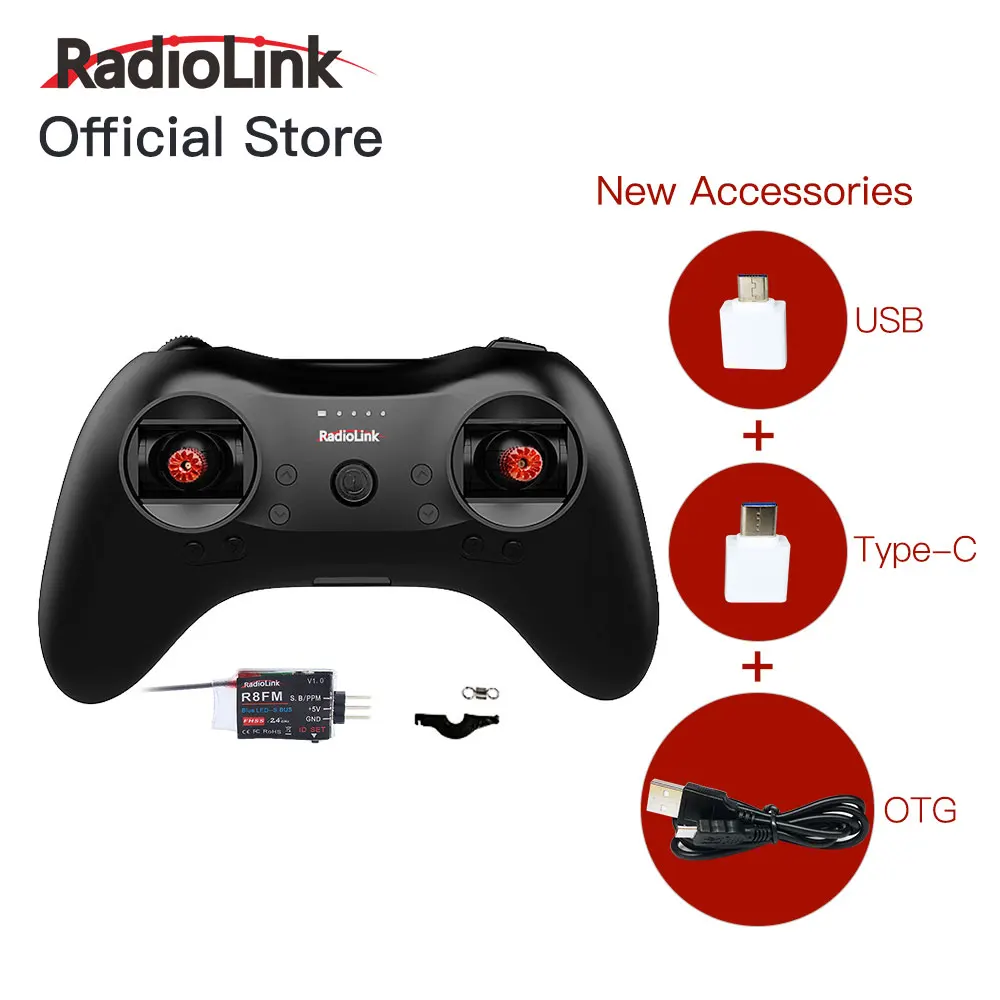

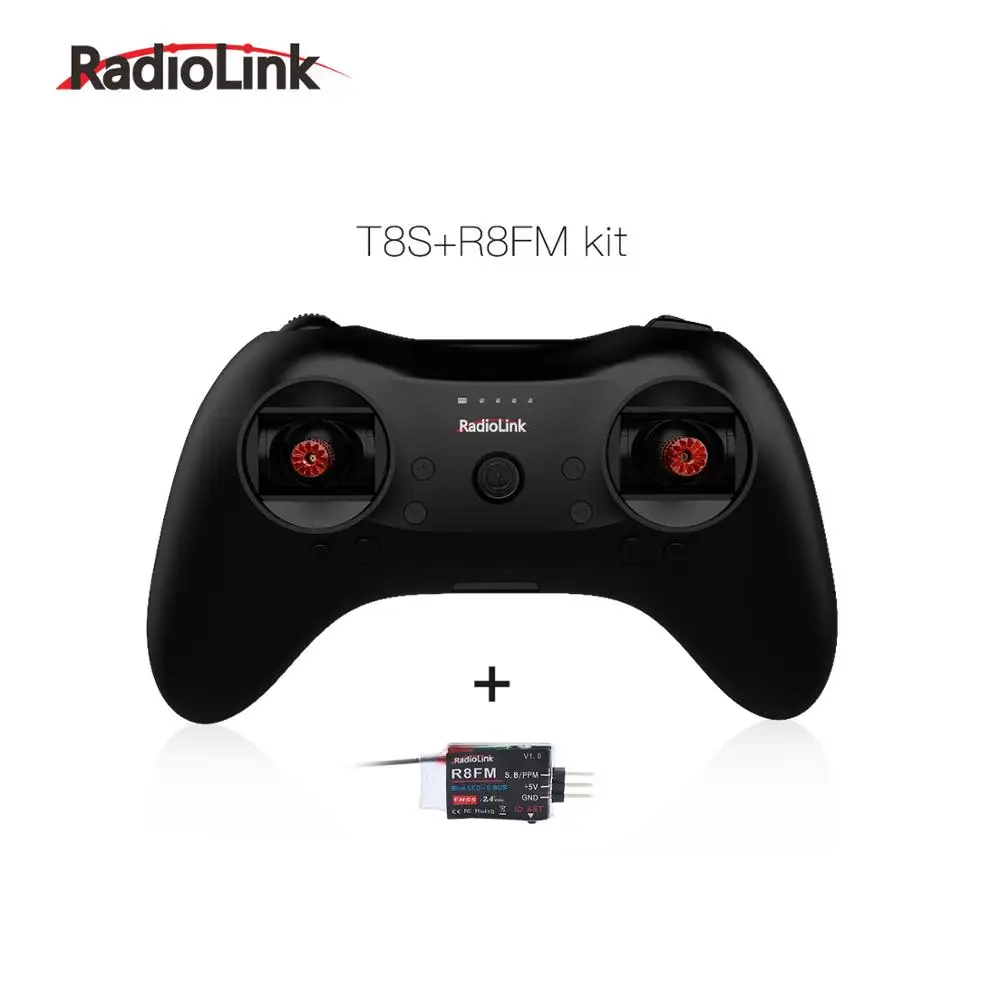

Package Included:

• R8FM receiver x 1

• T8S X 1

• OTG Connector x 1

• Type C Connector x 1

• Spring Accessories x 1

• User Manual x 1
