Welcome to our store. Please writer your right address and post code so that you would get your packages soon. It's would be lower if you buy more. Please feel free to contact us if you have any questions. Best Regards!

The HDMI interface that does not occupy the signal source can be connected to the display device, and the audio signal is separated synchronously, supporting one SPDIF optical digital audio output and one L/R stereo analog audio output.HDMI resolution supports up to 4K/60fs and supports3D
SPDIF optical output supports Dolby Digital AC3, DTS, LPCM and other digital audio formats, supporting 5.1CH output.Supports switching between 3 audio EDID read modes (2CH/5.1CH/PASS).Support ARC.Panel design LED indicator to clearly indicate the working status of the product.24-bit/192KHz DAC chip ensures high quality sound quality
Connection and Operation：Connect the DVD/BD HDMI HD output to the HDMI input of the splitter via the HDMI cable.Connect the HDMI output of the splitter to the TV/display HDMI input via the HDMI cable.
When digital audio is required, connect it from the OPTICAL output of the splitter to the fiber input of the amplifier through the fiber optic cable.When analog audio is required, connect the 2-channel analog audio to the TV or amplifier analog audio input via the RCA audio cable.
Note that the channels correspond one-to-one and the EDID mode switch is selected in 2CH mode.Finally connect the DC head of the power adapter to the DC input of the decoder, and then plug the adapter into the power outlet.

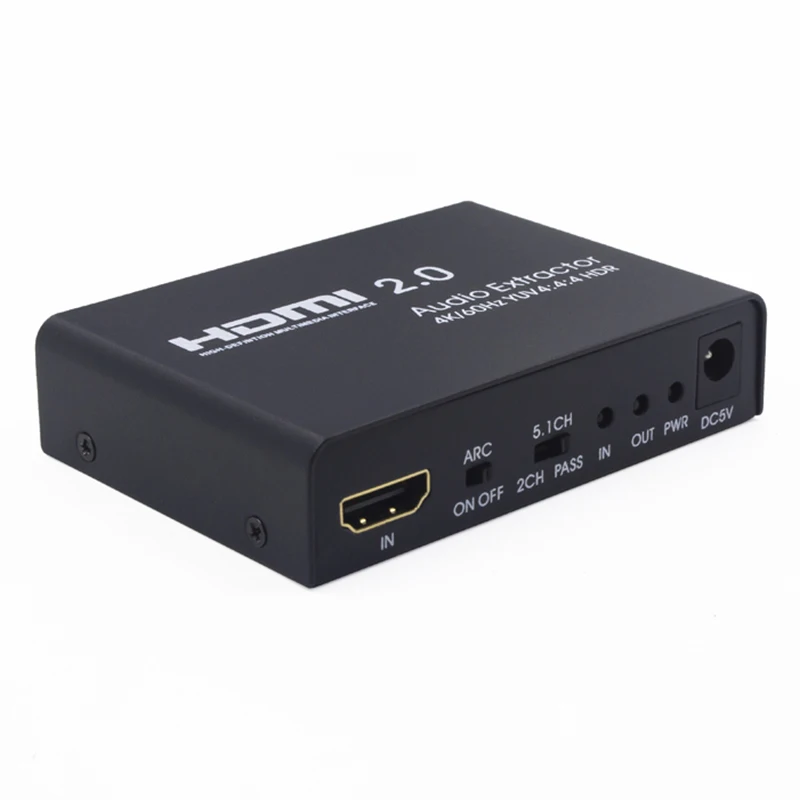

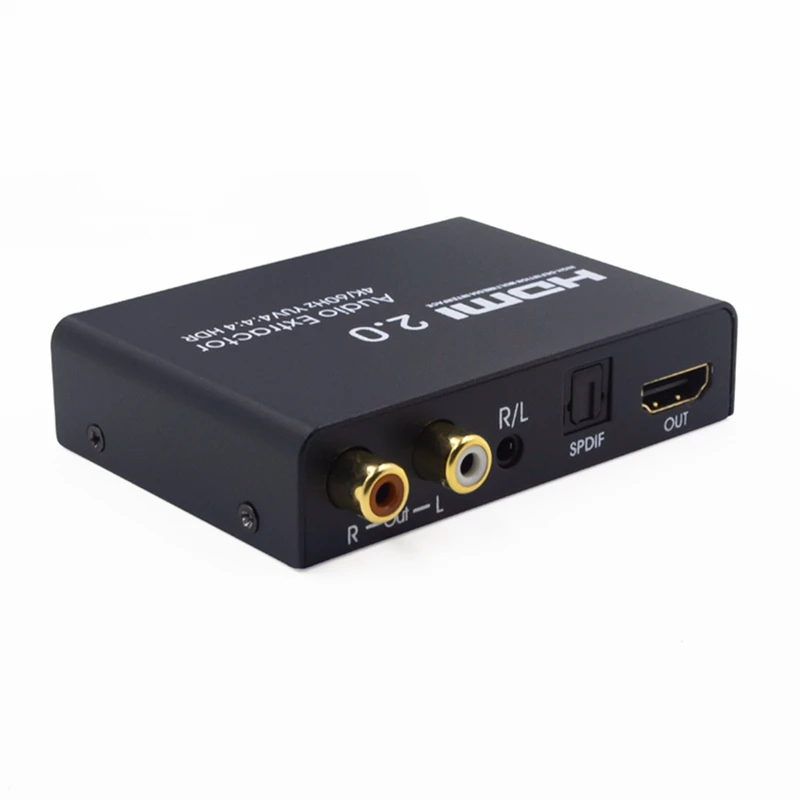

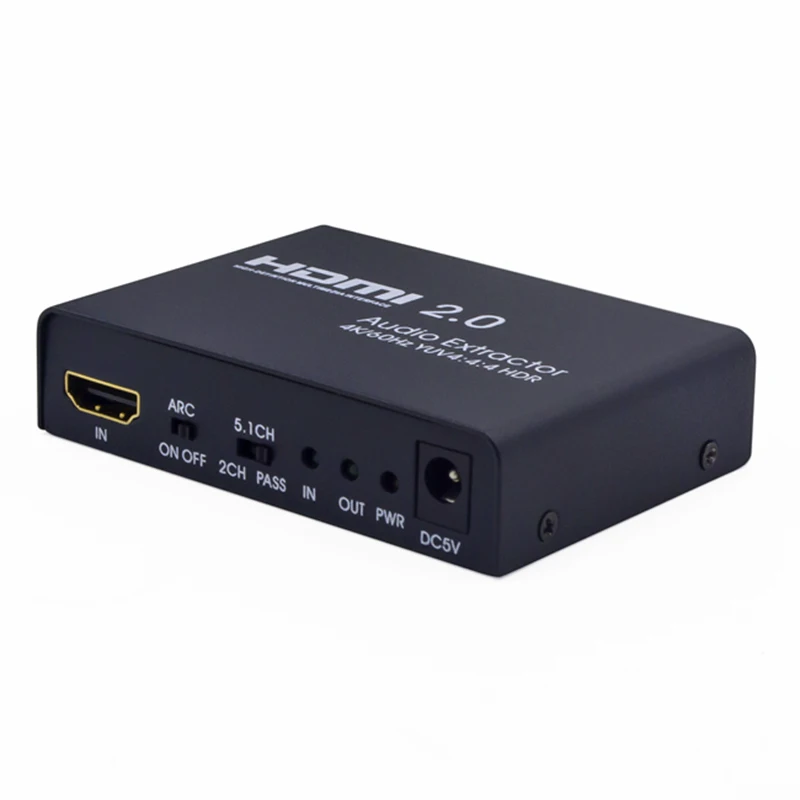

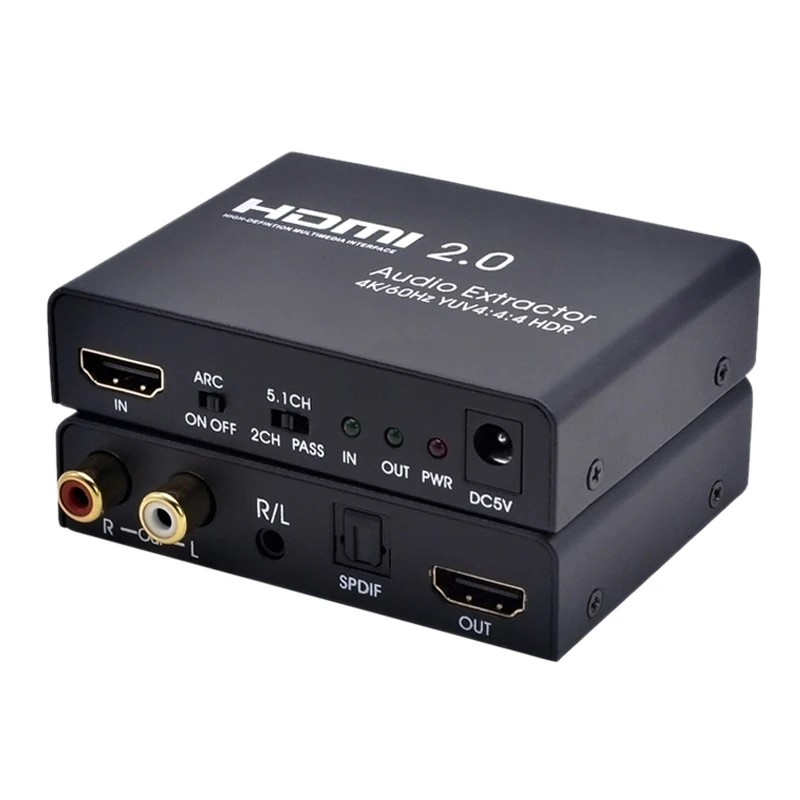

Diagram of Interfaces:
R/L:R/L Audio Output/3.5mmAudio Output
SPDIF:SPDIF Output
IN/OUT:HDMI Output port
ARC ON/OFF:ARC Switch
5.1/2.0/PASS:Audio Switch
OUT/IN:Indictor Light
PWR:Power Indictor Light
No signal loss
Powered by DC5V/1A
Suppoort HDMI HDCP Version：HDCP 2.2
Support HDMI Video Color Format:2160P,10/12bit
10/12 bits, 24/25/30Hz, 2160p,10/12 bits, 50/60Hz
HDMI Audio Format:DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/olby-AC3/DSD
HDMI Max Bandwidth:600MHz
HDMI Max Baud Rate:18Gbps
Input Output TMDS Signal:0.5~1.5Vp-p(TTL)
Input Output DDC Signal:5Vp-p(TTL)
DAC sampling frequency:32~192 KHz
DAC bit rate:16~24 Bit
RCA analog output (1KHz@0dB)：1V RMS
Signal to noise ratio @0dB(CC1R/ARM)：greater than equal 90dB
Distortion degree:less than equal 0.1%
Frequency response：20HZ~20KHz
HDMI Input/Output Cable Distance:less than equal 3m AWG26 HDMI Standard Cable
Max Working Current：400mA
Power Adapter Format:AC 100V-240V 50/60HZ,DC 5V/1A
Operating Temperature Range:-10~+55 Celsius
Storage Temperature Range:-20~+60 Celsius
Operating Humidity Range:10~90%RH（No Condensation）
Storage Humidity Range:5~95%RH（No Condensation）
Case Dimension:85×60.5×20（mm）
colour:black
Material:Aluminum alloy

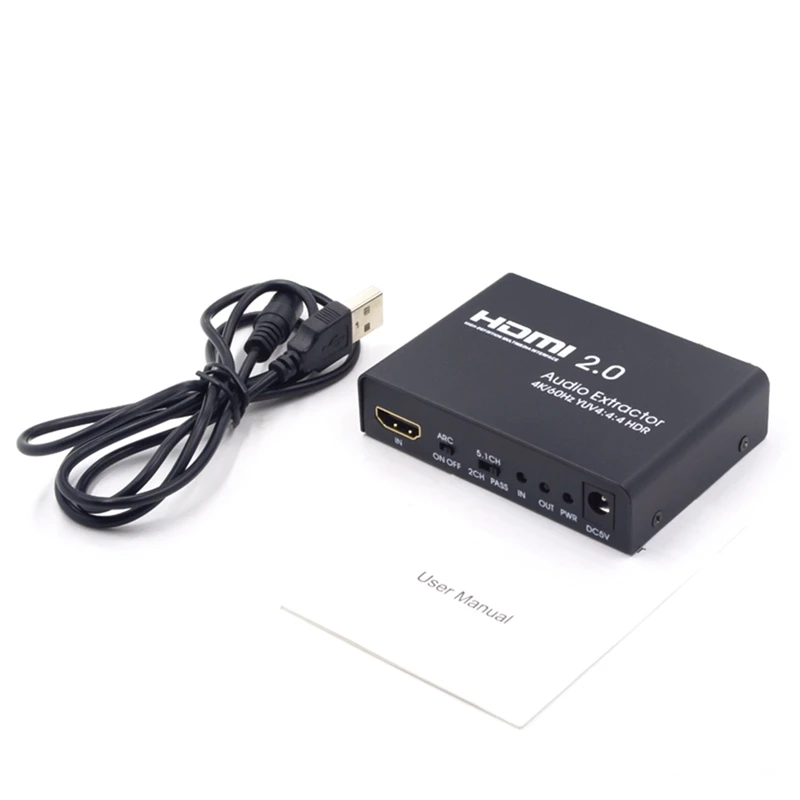

Package Contents:
1 * HDMI Audio Extractor
1 * USB Power Cable
1 * User Manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
