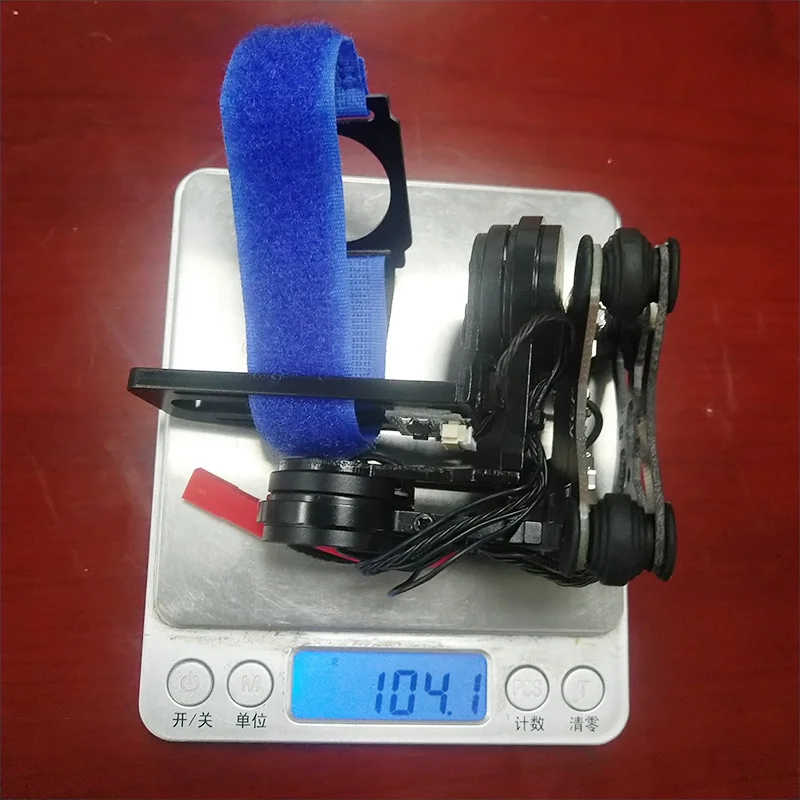

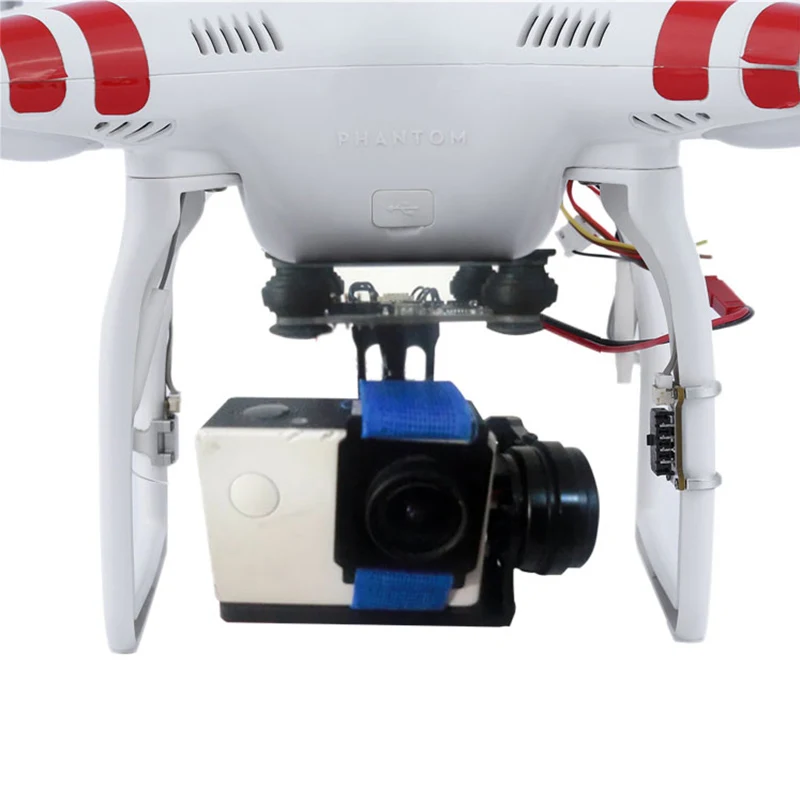

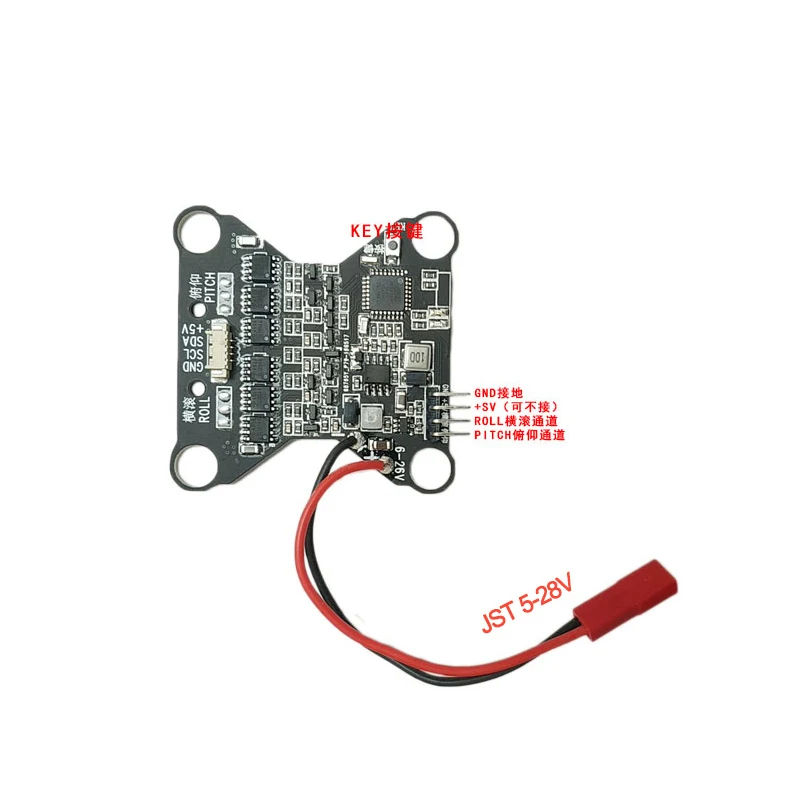

2 Axis Gimbal Stabilizer 2-6S Drone for GoPro DJI Phantom 2 Aerial Photography Gimbal w/ 2204 Motors 5-28V Plug and Play PTZ     Specifications: Name: lightweight brushless gimbal Assembled and debugged, plug and play Material: Aluminium alloy Motor: 2204/100T brushless motor*2 Strap: strap for GoPro camera Compatible camera: with a weight of 60-100g , such as GoPro HERO 3/3+/4 or other cameras ( camera not included ) Battery plug type: JST / HX Input voltage: 5-28V / 2-6S LiPo battery ( wide voltage range ) Pitch: -90~+90 Roll: -45~+45 Weight: 104g ( super lightweight ) Size: 80 x 65 x 80mm Compatible model: for DJI phantom 1/2 or other DIY drones. Color: black   How to install: 1. Remove the damping balls, open the top cover of the mounting plate. 2. Install the top cover of the mounting plate to the bottom of the drone. 3. Install the damping balls. 4. Install your camera, and fasten it with straps. 5. Position the camera and then power it on.   Do not power on the gimbal before mounting the camera, or the gimbal will shaking greatly. Do not power on the gimbal unless the gimbal and the camera are horizontal hanging. The camera strap must be bundled securely. The weight of the camera should be within the specified range(60-100g). (The steady red light is the power indicator. The yellow light lighting after flashing, it is detected that the gyroscope is working normally.)   Question 1: Why the gimbal shaking so much after power supply? 1:When receive the gimbal, first install the camera, then supply the power, otherwise the gimbal will shake if not install the camera.  2:The gimbal can only load the camera, becausethe gimbal has requirement to the weight, if equipped with a light camera , it will also shake, because it is too light. 3: If the cable bind the gimbal , the motor will also shake, pls let the cable far away from the gimbal.    Question 2: The Gimbal cannot work after supply the power? 1: pls insert the sensor again, the sensor may be loose during transportation. Just insert once again.   Question 3: Why the gimbal board  burned? 1: the current is too large, the breakdown of the IC module,pls use batteriy of low Amperage。   Question 4: What voltages can be used of the gimbal? 1:we proposed using 5-28V ( 2-6S LiPo battery )   Package included: 1 * 2 Axis gimbal 1 * Camera fix strap 1 * Receiver pin cable 1 * JST cable 1 * Screw set 1 * Manual   Notes by OK -Studio Store: Gimbal stabilizer only, others not included. Not Recommended for high-impact sports. Only recommended for non-impact activities. There may be some deviation due to manual measurement. The colors deviation might differ due to different monitor settings, please kindly understand.
