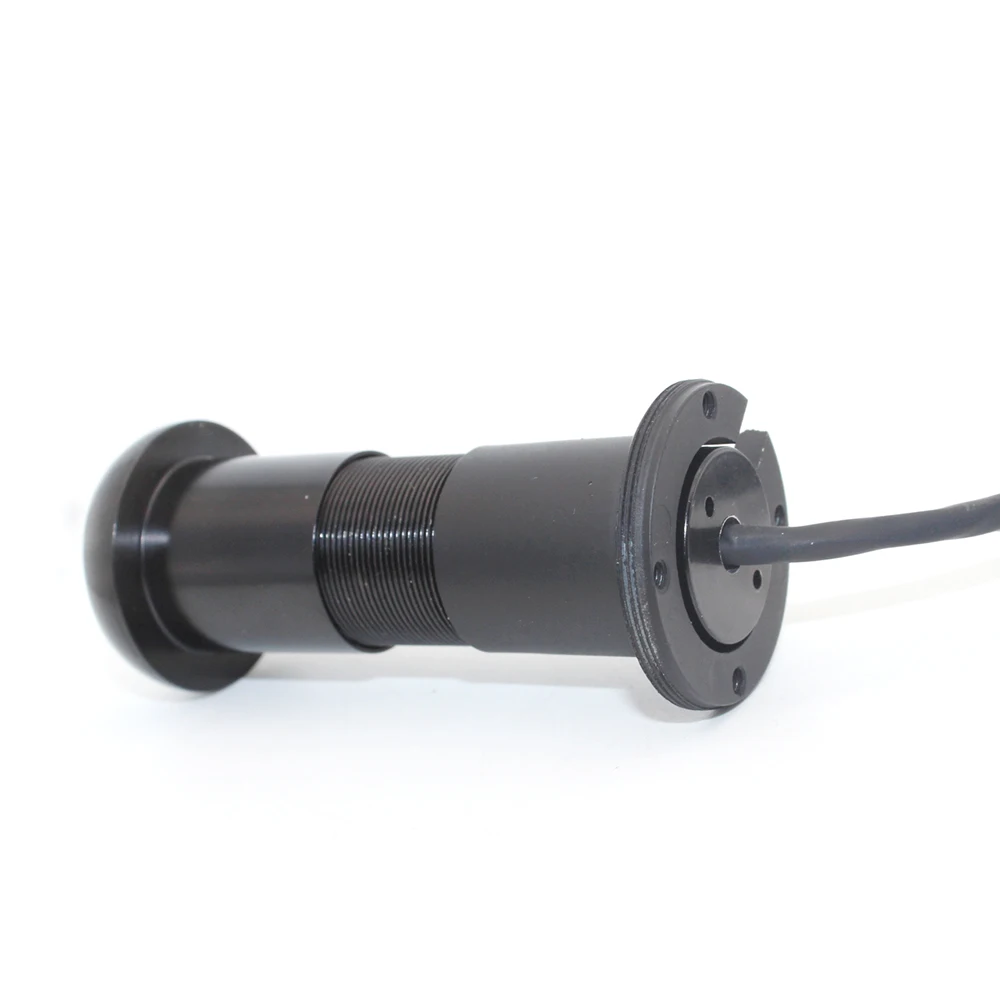

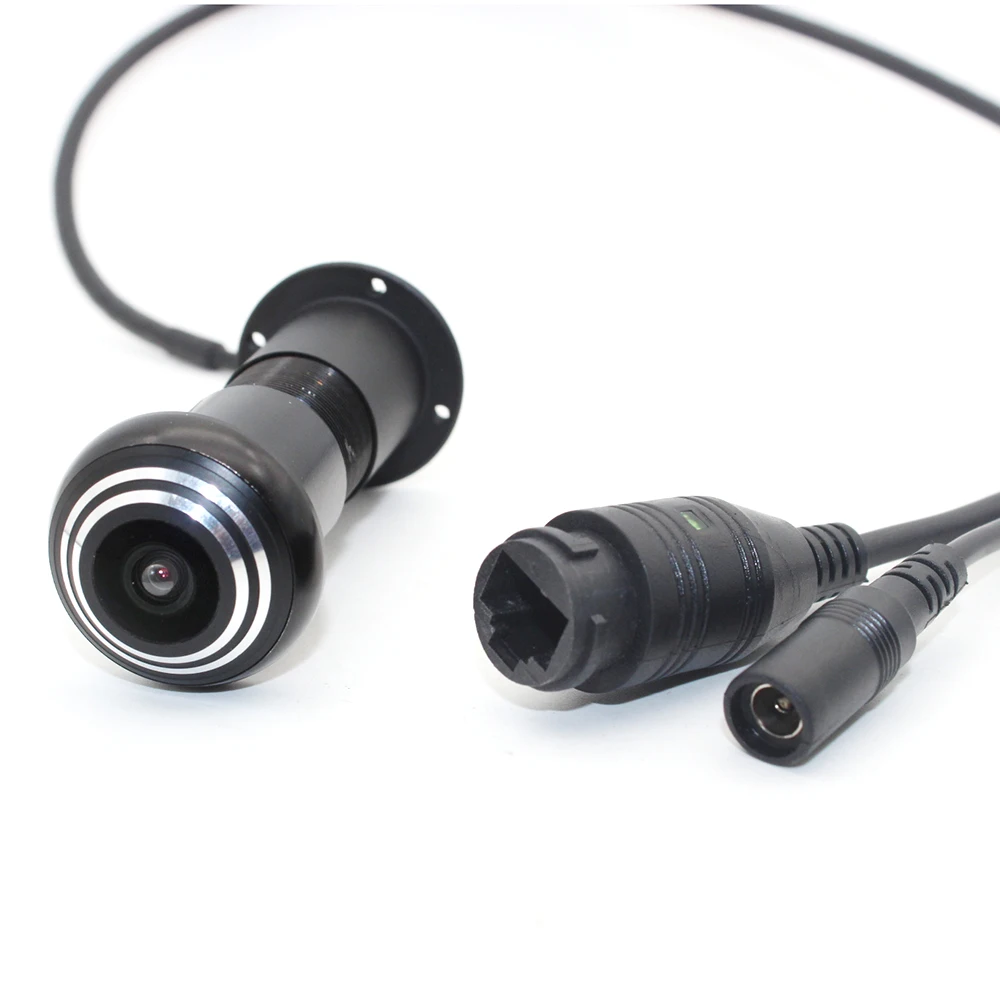

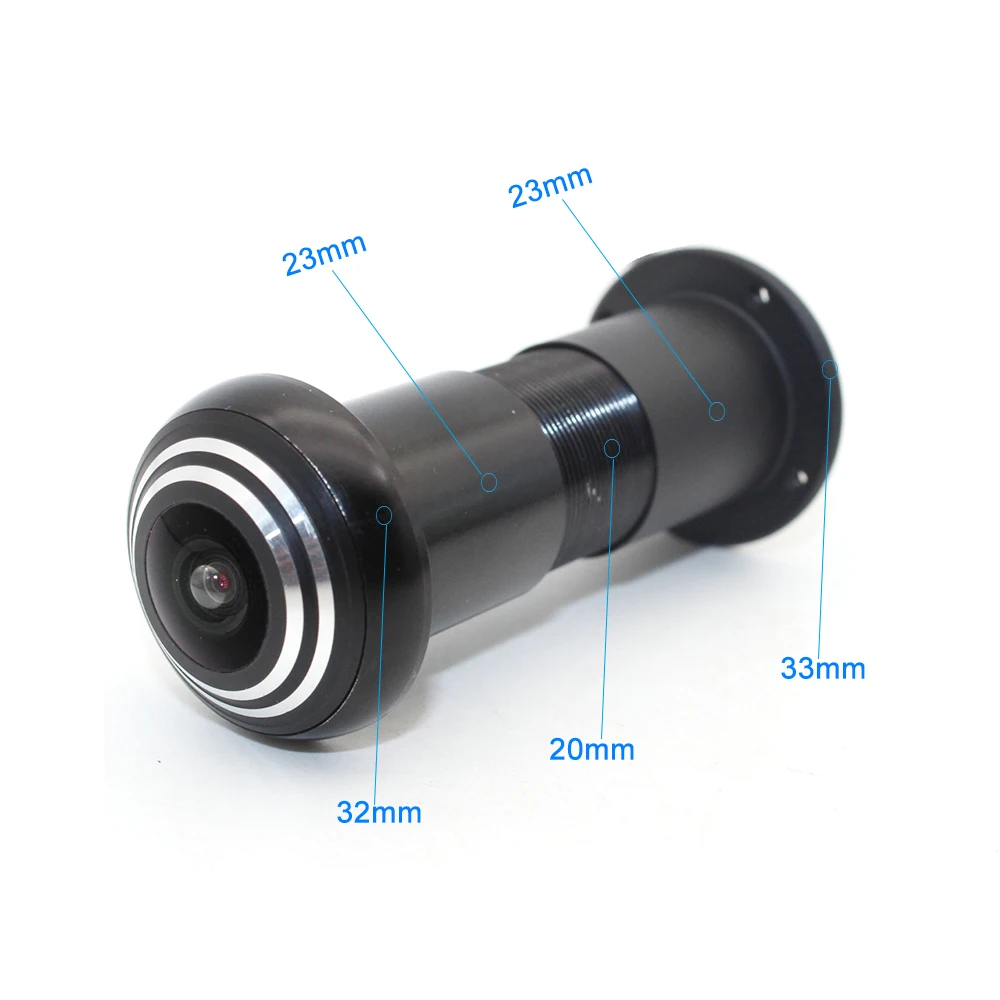

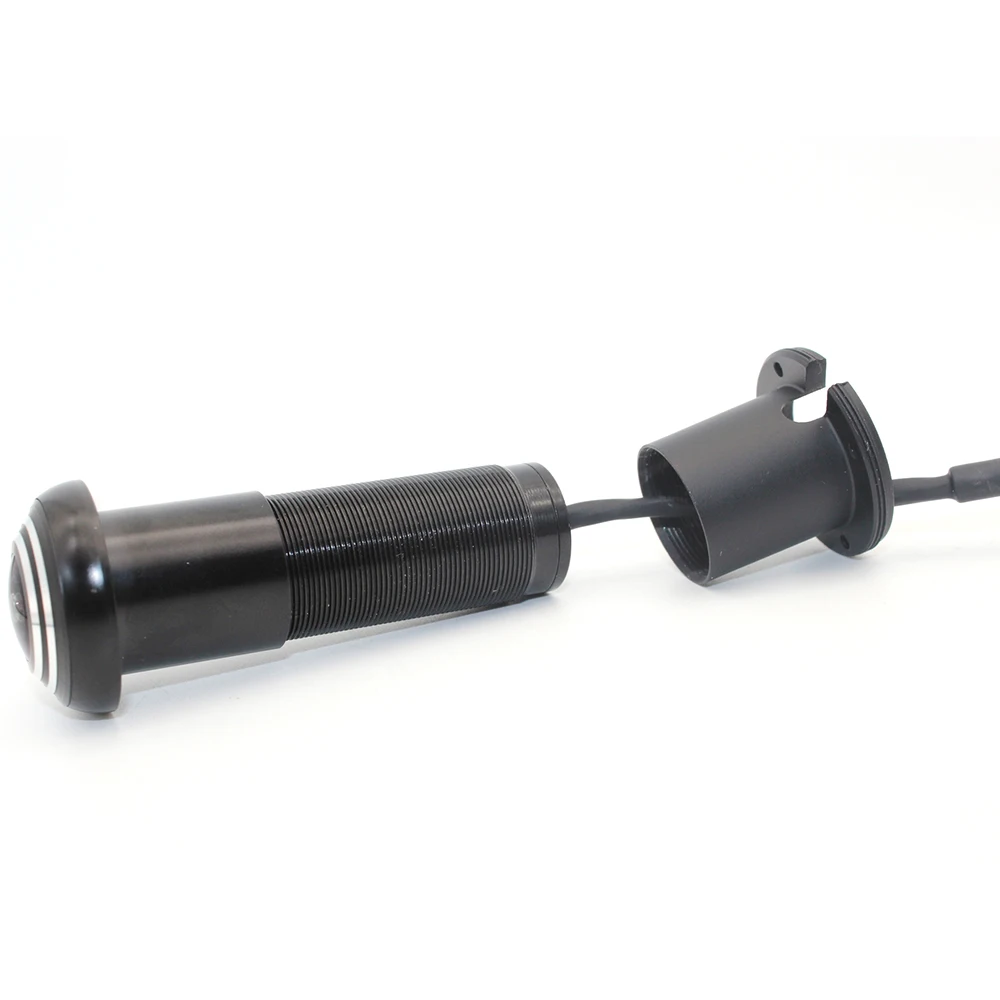

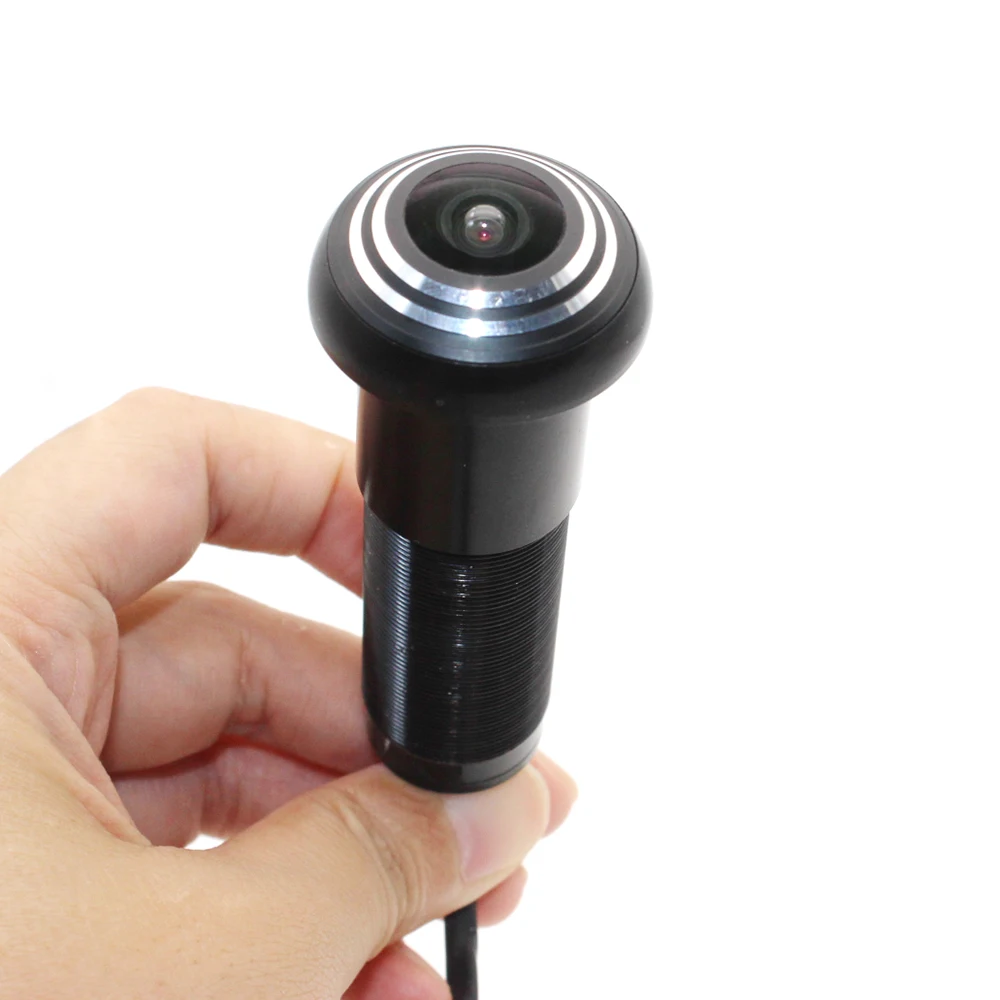

Upgrade Home Security 1080P HD POE Power Door Eye Hole IP Camera 1.66mm FishEye Lens CCTV Mini Network Web POE Camera XMEye
![]()
Note:we upgrade the This Models Chipset , it is most stable now !
Mini IP Camera With Unique IPC Board ,We accept all Custom Made for our clients,just feel free to contact us!!!
IMX307 +XM530
1920*1080P video record
Tt is widely used in Helmet , Police , Industrial equipment, medical instrument , Laboratory Instruments etc.
Support P2P compatible with NVR , Like Xiongmai . Dahua .Hikvision NVR.
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
If you have any problems about product or installation problem,please contact us first,thank you!!!
H.265 advantages
1. It is approximate 2 times as effective as H.264.2. Reduces file size up to 50% with the same quality.3. Supports resolution up to 7680 × 4320 (8K).4. Reduces video noise and increases dynamic range.5. Extend far greater video quality experience compared to H.264Features:1. H.265 2MP2. H.265support dual-stream,AVI;0.1M~8Mpbs variable;1~30f/s variable;3. Color 0.1Lux; B/W 0.01Lux;4. 1 RJ45 Ethernet interface, 10/100M automatically adapting; 5. Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc network protocol;6. Mobile monitoring;7. Metal case.How To Use On PC Or Phone?(Very important)
Downloaded CMS On PC
CMS Downloaded ADD: http://kss.ksyun.com/xmcfs/jsUploadTest/2019-03-13/General_Bate_CMS_V3.1.0.9.T.20190306.exe
![]()
![]()
Downloaded On Phone(IOS&Android)
APP : XMEye or iCSee
![]()
![]()
Fetures: System structure Embedded RTOS,dual-core 32bit DSP,pure hard compression ,watch dog Sensor 2.0MP:1/2.9" CMOS image sensor Video compression H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable Image output 2MP:Main stream:1920*1080(25fps), Audio YES Noise reduction Support 2D/3D lens 1.78mm lens(2.1mm lens is optional) Storage Via PC/Mobile Phone/NVR With HDD Wide dynamic Support digital Network interface 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc SD Card YES Reliability Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C high temperature stable and reliable testing (including mounted machine testing) Other function Mobile monitoring Support multiple mobile monitoring(iOS,Android) Power DC12V power interface support Q & A1, IP camera default IP address:192.168.1.10User name:admin,password:empty(null)If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.Please click "Edit Device" to change the camera's ip address,For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX."DeviceManage" It can find and change the IP address, upgrade the firmware. 2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .then please input your P2P ID,user name and password to login and preview.Access to the IPC through the web, only one screen can be displayed. There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR) 3,The camera's port information.Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465.4,Does the cameras can be compatible with other manufacturers NVR?Please confirm whether other manufacturers NVR support onvif protocol. 5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.A,How to set up motion detection?Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save.B, About FTPFTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.We suggest the Sever-U and FileZilla FTP Server to upload the video or image.C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .D, RTSP URL for VLC media Player :RTSP port: 554rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_streamExample:rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream) If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set6, About DDNSMapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)Note: The two ports in the network settings can be viewed, can be modifiedWhat domain names are supported?- CN99 / DynDns / Oray / NO-IP / MYQ-SEE7.Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.10 in the menu . F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router. Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment ! For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX . Package Contents: 1 x Camera 1x Adapter 1 x English User Manual ![]()
![]()
![]()
