480A Brushed Esc Dual-Way Bidirectional Esc Water/Air-Cooled Waterproof Speed Controller For Rc Cars/Boats

Features:

1.One-piece structure: built-in anti-high voltage capacitor, waterproof, adapt to various climatic conditions.

2.Can be bidirectional / climbing / one-way switching:three-in-one, adapt to various models.

3.480A has 5V/3A BEC output:320A 480A has 5V/3A BEC output function.

4.Protection:With low voltage protection (2s/6.5V 3s/9.75v), over temperature protection (90 degrees Celsius), out of control protection (signal loss automatic brake).

Description:

Automatic throttle calibration, easy to use.

Specifications:

Color:multicolor

Forward: Continuous current 80A / peak current 480A

Reverse: Continuous current 60A / peak current 300A

Supported voltage range: 2-3 lithium-ion (Lipo) or 5-9 nickel-hydrogen (NiMH) batteries

Support motor speed:

2 lithium batteries or 6 nickel-metal hydride 540, 550, 775 size motors: >=12T or RPM less than 20,000 rpm

3-cell lithium or 9-cell NiMH 540 550, 775 size motor: >=18T or RPM less than 15,000 rpm

Protection voltage: 6V (factory can be set), when the voltage protection is effective, the throttle motor will be activated for 3 seconds to stop, and the throttle can be operated again for 3 seconds.

Protection temperature: 90 degrees Celsius. When the ESC temperature reaches 90 degrees, the ESC will stop working completely until the temperature drops below 90 degrees.

BEC output: 5V/3A

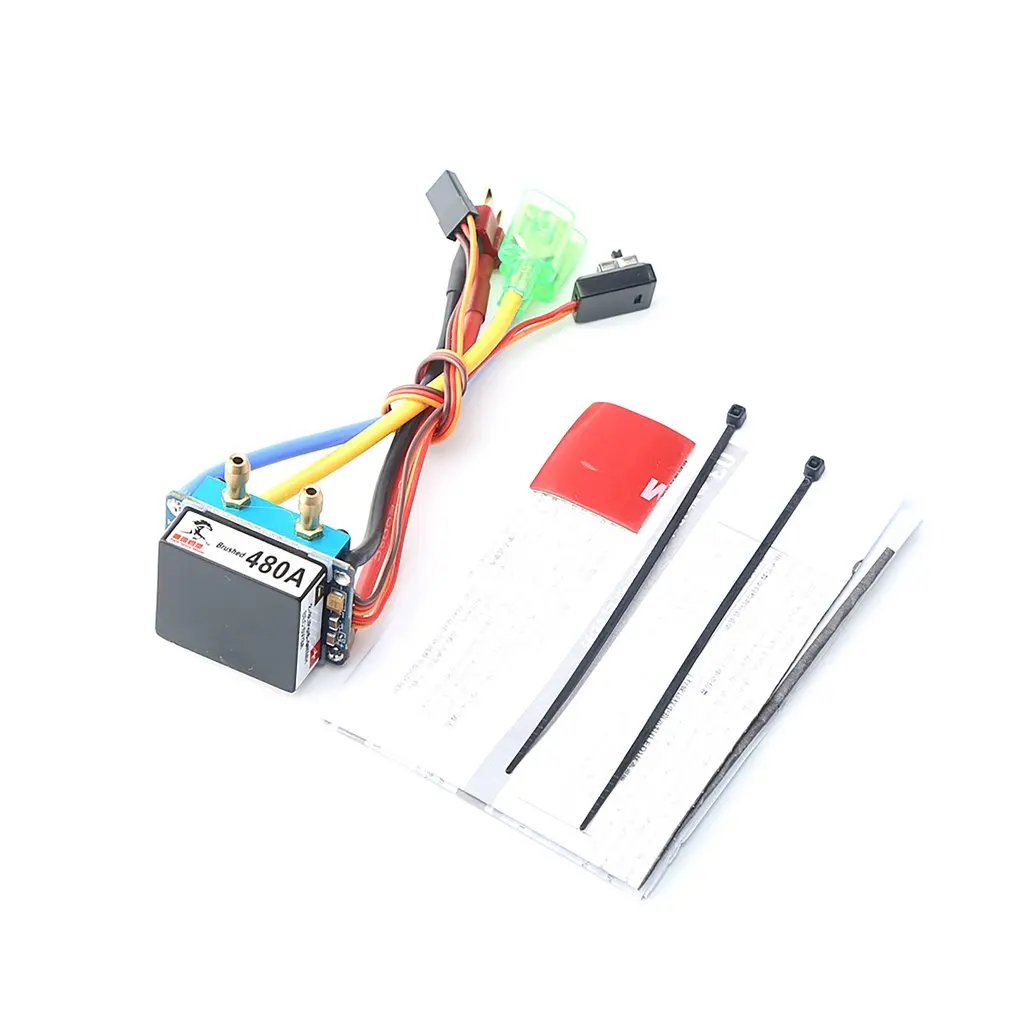

Package Included:

1 * 1 * Brush ESC
