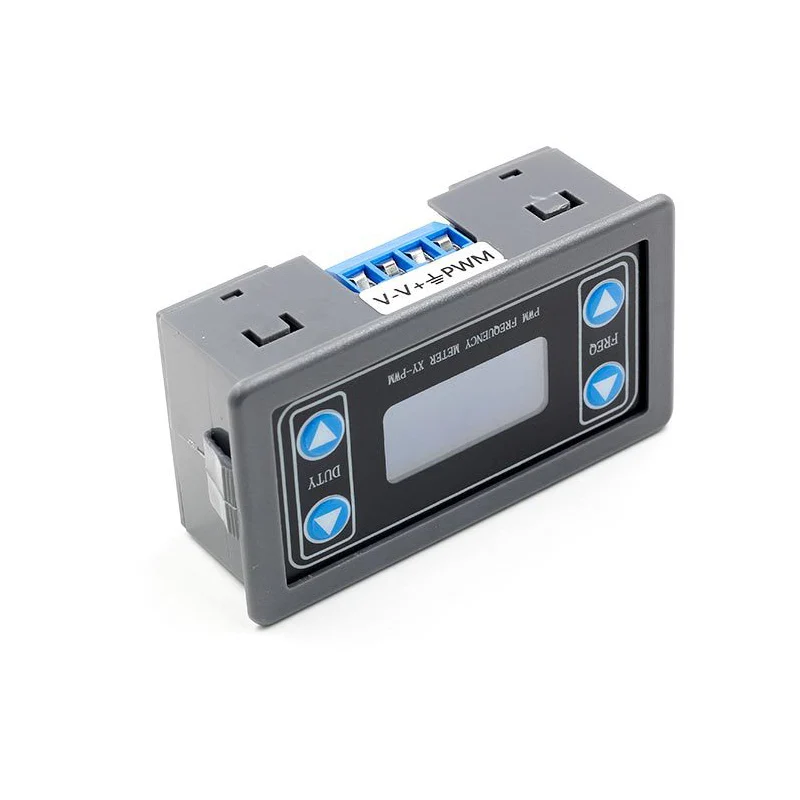

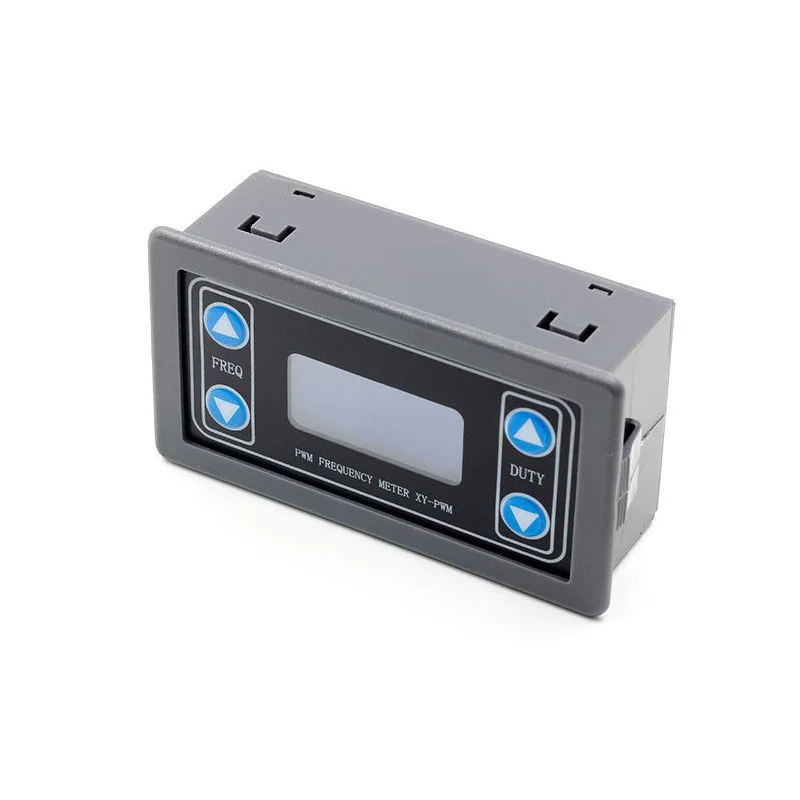

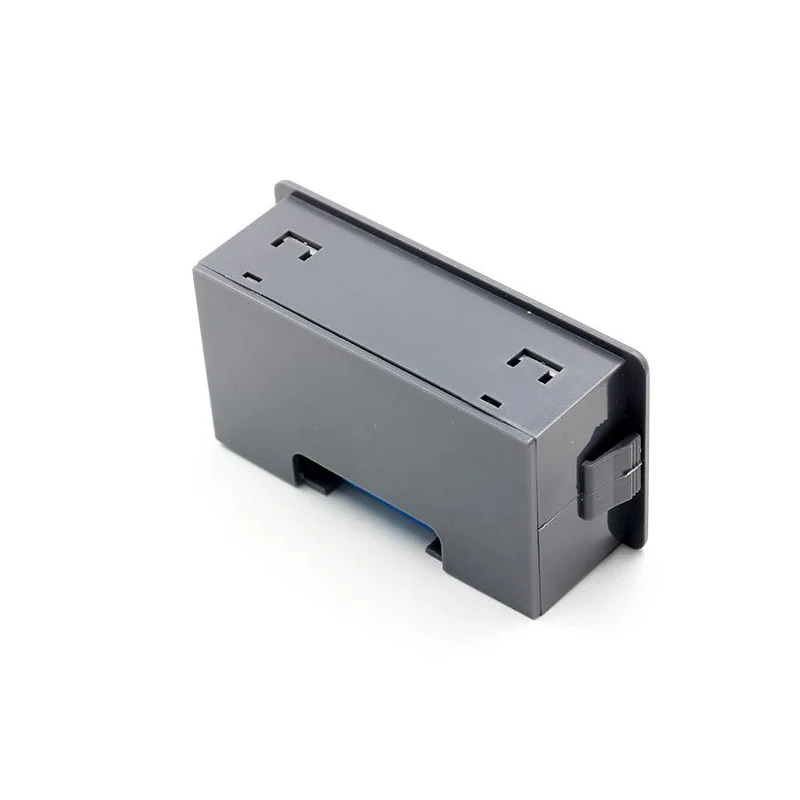

DC 3.3-30V Function Generator LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Signal | Инструменты

DC 3.3-30V Function Generator LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Signal | Инструменты

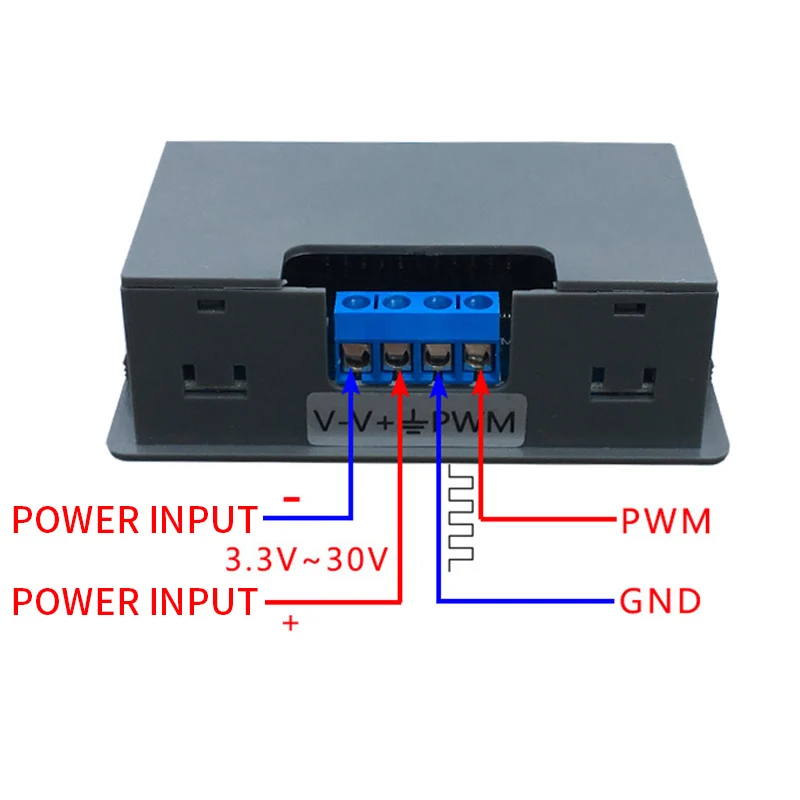

Work voltage: DC 3.3V-30V
Frequency range (Normal mode): 1Hz ~ 150KHz
Frequency Range (Precise mode): 1Hz ~ 15KHz
Frequency accuracy:  approx. 2%
Output current: About 5-30mA
Output Amplitude: Same to input voltage
Work Temperature: -20 ° C ~ 70 ° C
Size: 79*42*26mm
Color: black
Material: plastic

Features:
** Range: The adjustable frequency range: from 1Hz to 150KHz.

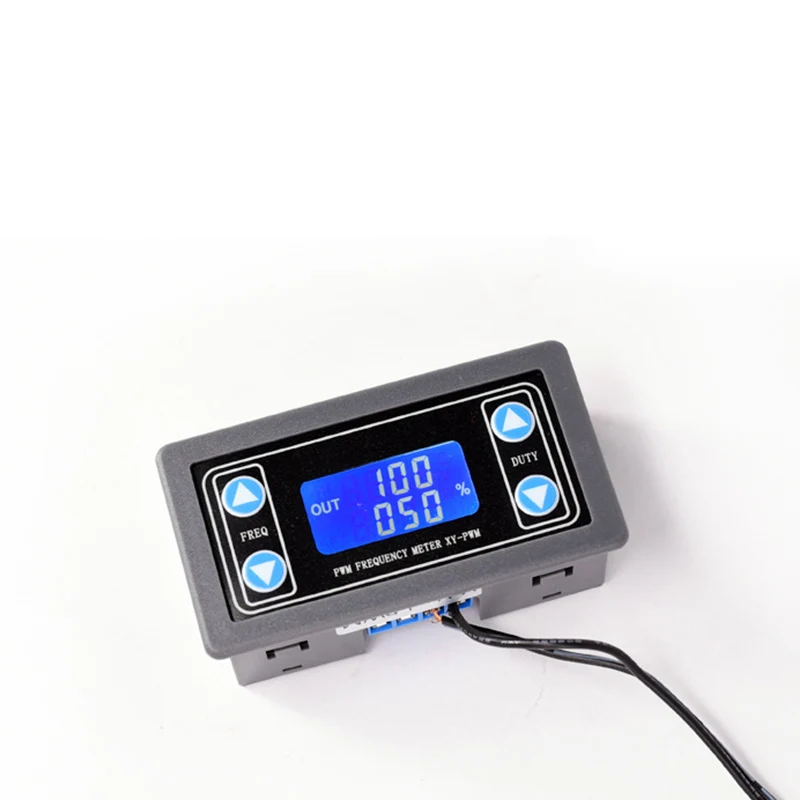

** Clear LCD high definition Display: Display both frequency and duty cycle in more clear status. High precision detection.
** Dual work mode: Support both frequency adjustment and duty cycle adjustment.
** Power-down memory function: No need to set the data again after power-off. Knob supports lock function to avoid misoperation.
** Application: Can be used as square wave signal generator for experimental development, square wave signal generator for motor driver,

adjustable pulse generator for MCU, pulse generator, control related circuits (PWM dimming, speed regulating).

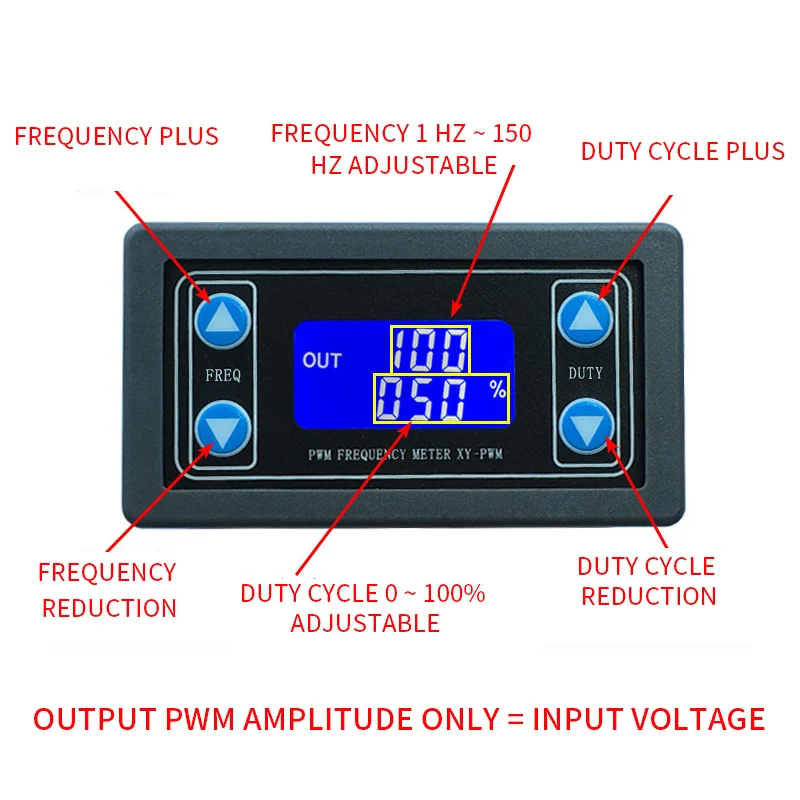

** Setting: There are 4 independent buttons on the module for setting the frequency value and the duty cycle value.

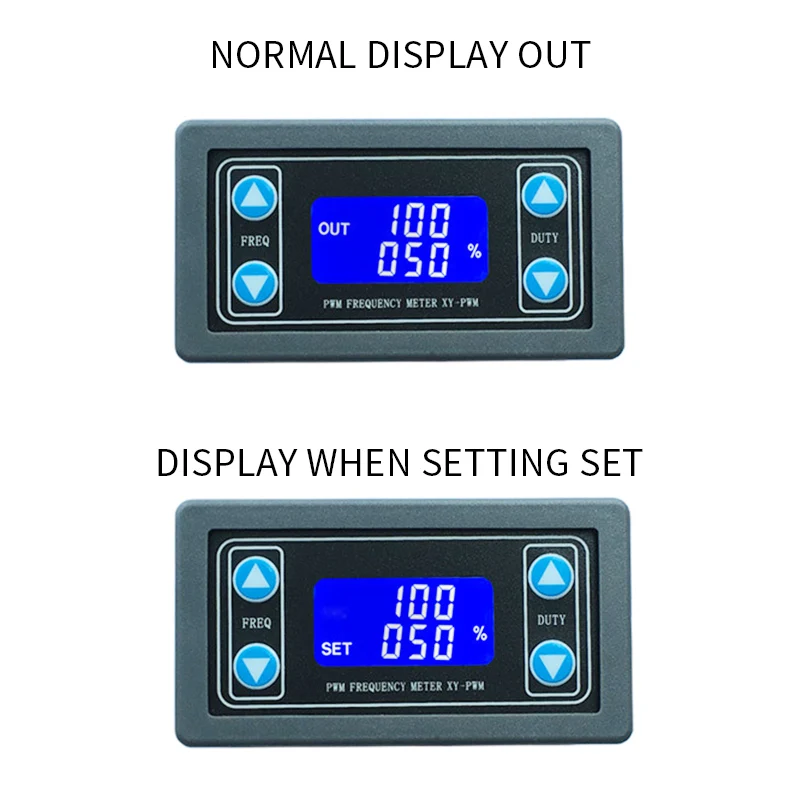

** Frequency Display Instruction:

The frequency is divided into 4 ranges and switched automatically.
1. XXX (without decimal point): minimum unit is 1Hz, value range is 1Hz~999Hz.
2. X.XX (the decimal point is in the hundred digit): minimum unit is 0.01kHz, value range is 1.00kHz~9.99kHz.
3. XX.X (the decimal point is in the ten digit): minimum unit is 0.1kHz; value range is 10.0kHz~99.9kHz.
4. X.X.X (full decimal point): the minimum unit is 1kHz; the value range is 1kHz~150kHz
e.g. Frequency displays 100 represents 100Hz; displays 1.01 represents 1.01kHz;
 displays 54.1 represents 54.1kHz; displays 1.2.4 represents 124kHz

Notes:
1. Please allowed 1-3mm differences due to manual measurement, thank you for your understanding!
2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.
