Delivery time around town Krasnodar 1-2 days.
The other subjects according to расчетному delivery time

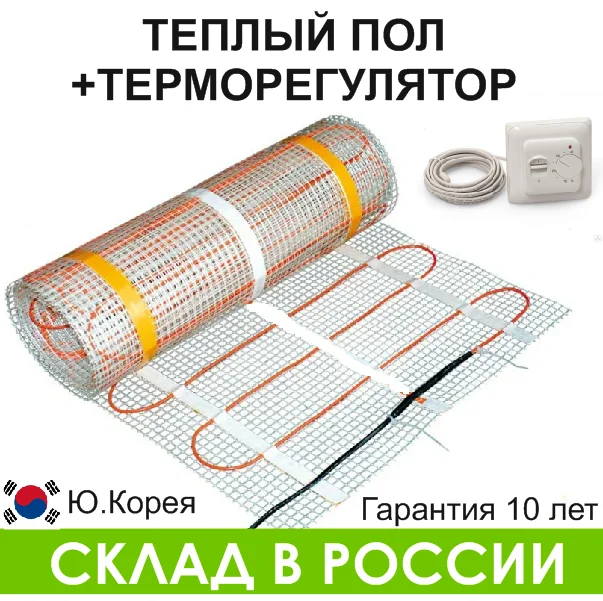

Warm floor Electric + thermoregulator RTC 70.26 complete

Mats heating, двухжильные

Appointment

Heating mat based двухжильного heating cable are used for systems warm floor and maintain a comfortable temperature indoors. Designed for laying in tile adhesive or cement песчаную zip tie.

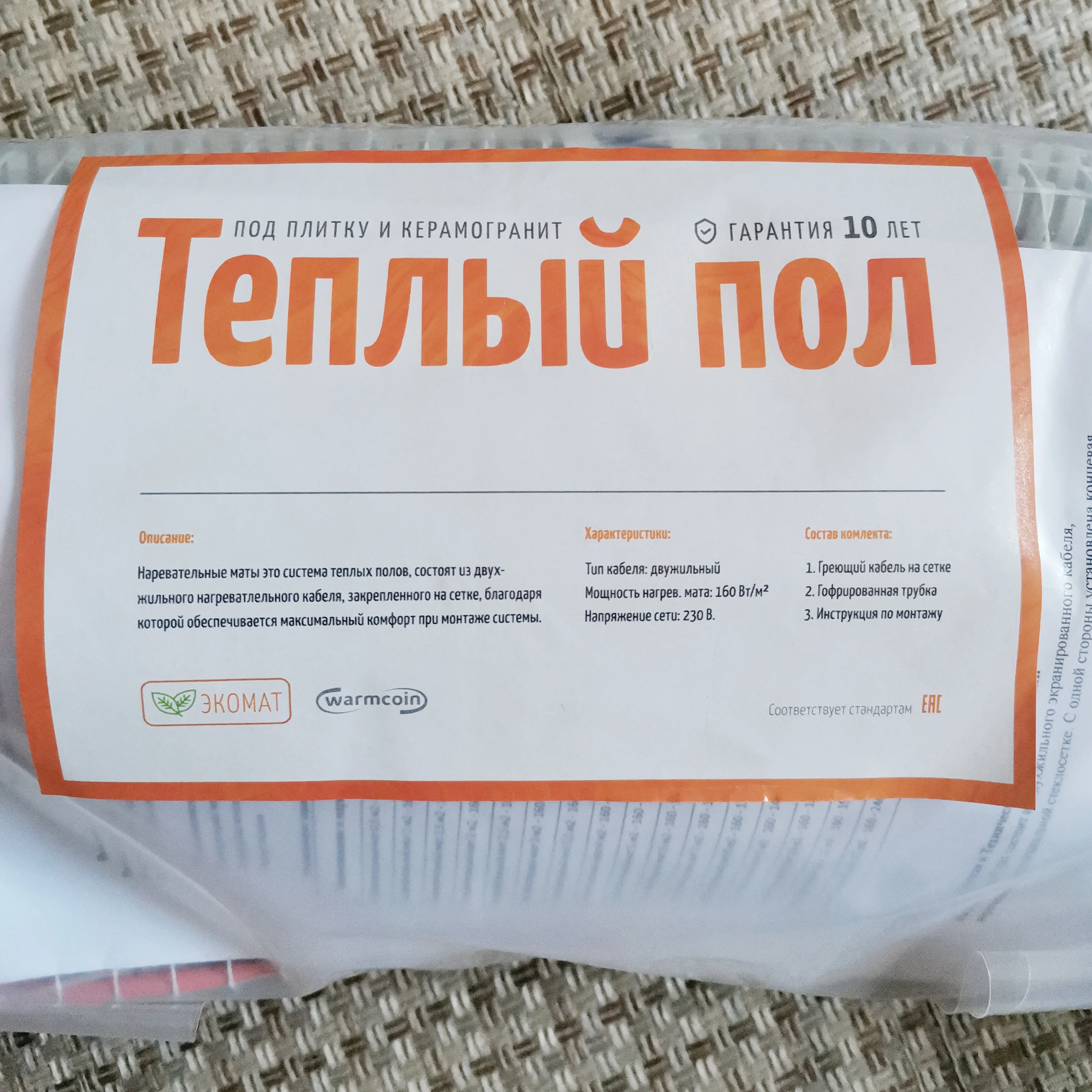

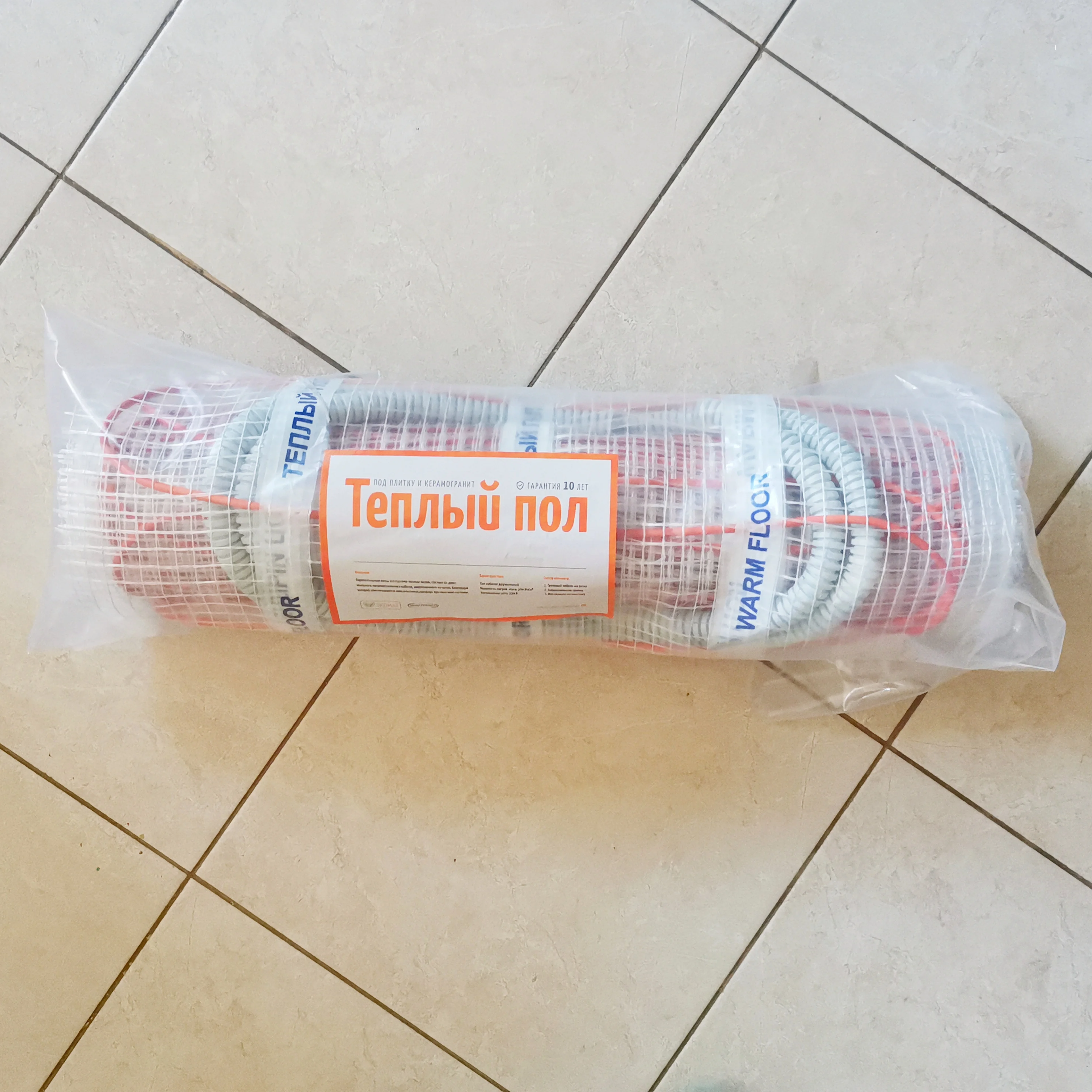

Composition kit

• Heating mat
• Гофротрубка mounting
• Data Sheet Products

Design and specifications

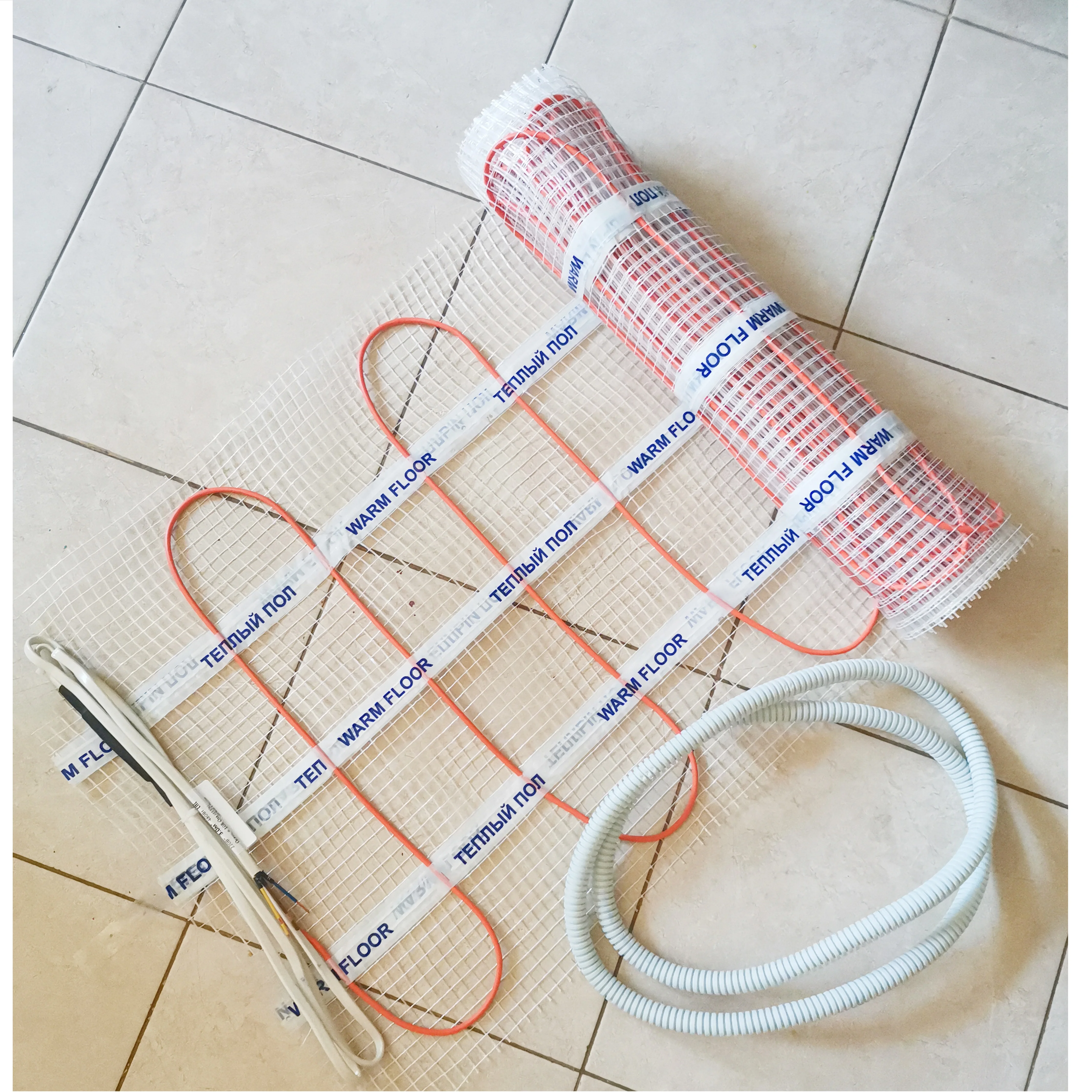

Heating mat is made up of двухжильного shielded cable, закрепленного on special стеклосетке. With one hand fixed end coupling, with another-Shaft Coupler and connecting wire to the power supply.

Heating mats comply with technical регламента Customs Union "on the security низковольтного equipment 'TR TS 004/2011.

• Power supply voltage ~ V ± 10%
• Specific power 160 W/m2
• Mata width 0,5 m
• Length установочного wire 2 m ± 2%
• Degree of protection IPX7
• Minimum temperature mount + 10 ⁰с
• Humidity mounting ≤ 80%

Installation and operation

Before монтажом heating mat check the integrity of the heating cable and connector clutches.

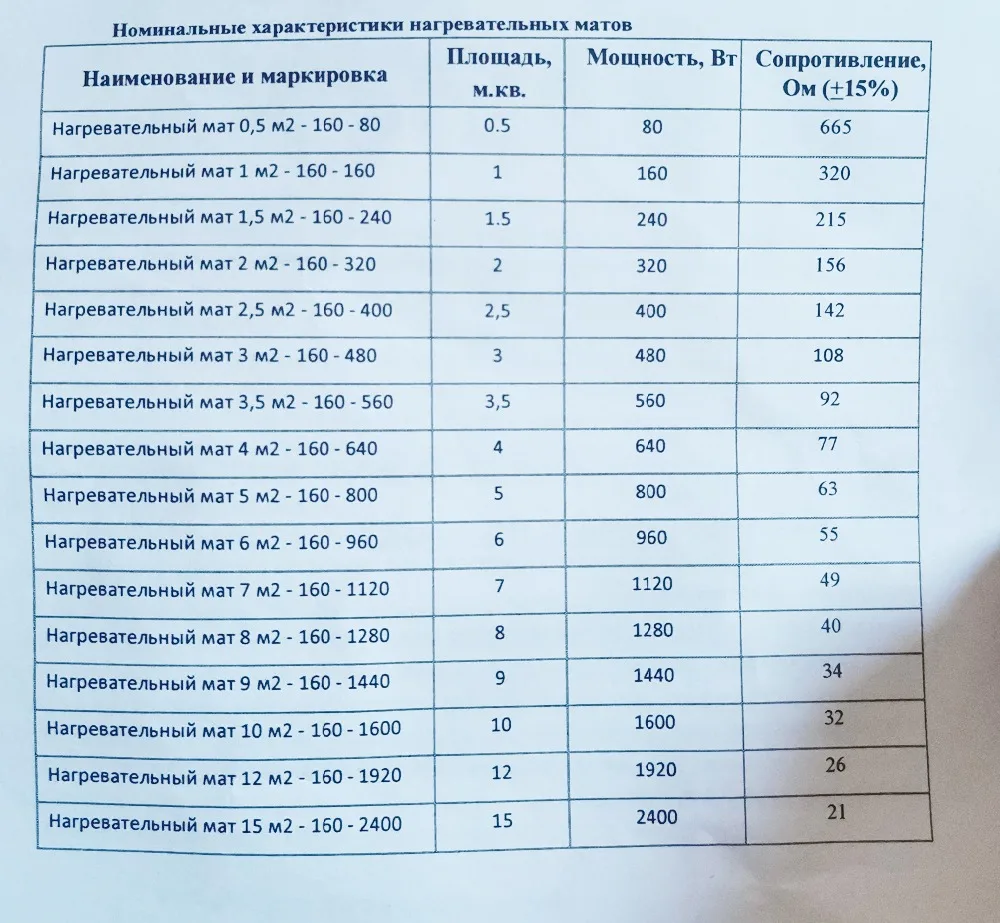

Check the matching characteristics of Mata (resistance), by metering test measuring instrument in отключенном from power condition.

Do not turn on the heating mats to convolute as in electrical network. Do not expose the heating mats механическому effects.

1. Prepare the surface of the floor to install heating mat: clean surface, align in stock неровностей and впадин. Make groove in стяжке for setting temperature sensor and notch in the wall to install терморегулятора.
2. Уложите and смонтируйте in groove sensor temperature by laying it in mounting гофротрубу.
3. Prepare heating mat to укладке: check the electrical heating mat for compliance табличным values. Draw a plan layout heating mat with обозначением place терморегулятора arrangement. Уложите heating mat in accordance with the wiring diagram, distance between матом and the wall should be not less than 10 cm.When укладке heating mat, remember that cut the heating mat is allowed only by стеклосетке, cut directly heating cable is not allowed!

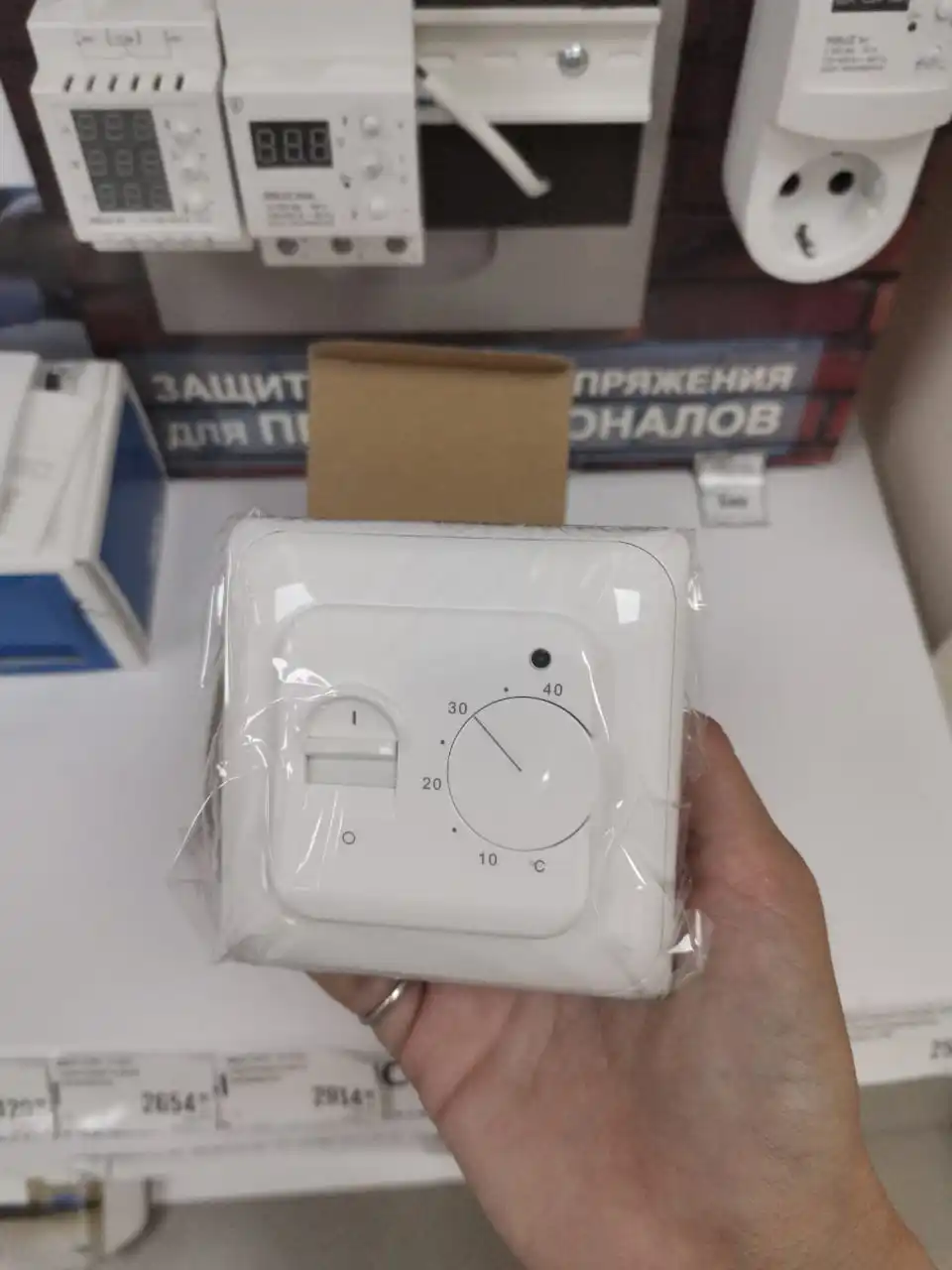

4. Mount распаячную box for installation терморегулятора. Mount thermoregulator and connect it with mounting wire heating mat. Operation Warm floor always should be carried out only by thermoregulator.
5. Apply tile glue or a thin layer of ties, thick 5-8mm. Wait for dry mortar. Prohibited include warm floor to dry the glue solution or ties.
6. Уложите decorative cover/tile on the newly cooked solution плиточного glue. Wait for dry плиточного glue.

Warranty policy

• Manufacturer set warranty life within 10 years of sale, Subject to enforce rules transport, storage, installation and operation.
• • Fault detection and наступлении warranty case should contact according to the place of purchase products
• • Detection deviations parameters product when mounting and installation of preset manufacturer and изложенных in data sheet products, need to stop installation and operation of products and ask for консультацией in organization, продавшую product.
• • Keep documentation (passport, товарную invoice, cash register check, etc. N.) the product for whole life

Limit warranty

Warranty does not cover any damage and flaws caused due to:

• Improper transport, storage, installation and operation.

• Making any unauthorized changes in design jewelry

• Improper installation and mounting jewelry

• Force majeure, as the fires, floods, Thunderbolt and T. N.

Квалифицированная setting jewelry is залогом further successful operation and its warranty service.
