DUOQI 20000MAH Notebook Multi-Function Move Power

Preface
Thank you for buying the "Notebook Multi-Function Move Power" with voltage regulation.
This manual will help you use it properly and provide you with the prompt and satisfactory after-sales service.

I am a supplier for ------(European and American Notebook Multi-Function Move Power),You can visit the catalogue on website.Find the products which you are intersted in,I will make quotation for you soon.My email address is as below:
Shenzhen Tuke Enterprise Designs Co., Ltd.
Alibaba WangWang: cn109710639 / mingsanlinzi / duoqiyoupin / tukeduoqi

China Alibaba Website:

http://mingsanlinzi.cn.alibaba.com/

Product User Manual

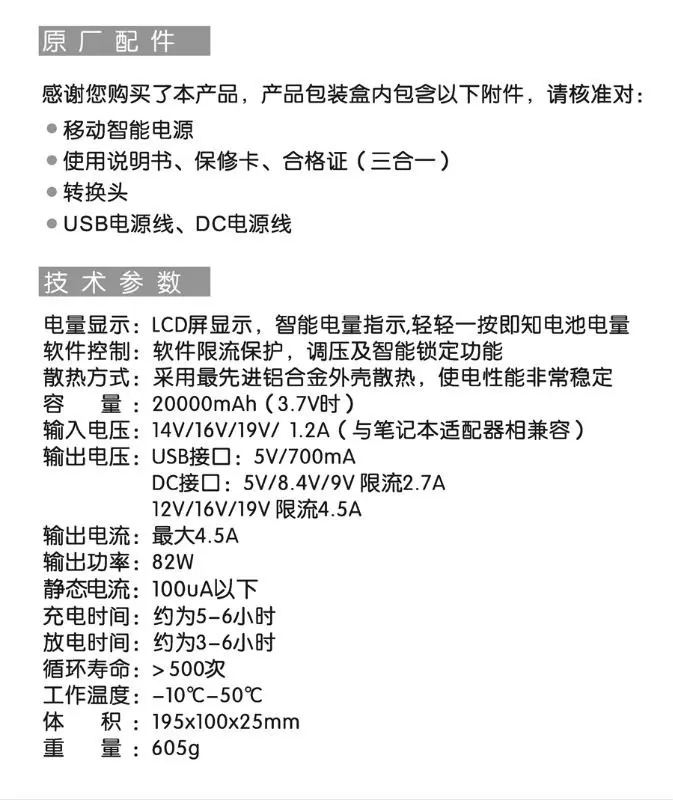

Original Package contents

Main device:1 piece
Manual/Warranty Card/Quality Certification (3 in 1):1 piece
Connecter (standard)
USB Power Cord.:1 piece
DC Power Cord.:1 piece

Specification and Features
Power display: LCD screen status display. Smart power capacity indication: you will know the capacity by touching"on/off"key
Software Control: controlling current, output voltage regulation and output lock function.
Overcharge and over discharge protection.
Cooling System: Advanced aluminium alloy cooler to make sure the stable electronically performance
Capacity: 20000MAH/3.7V
Input Voltage: 14V/16V/19V/  1.2A ( compatible with various of  laptop adapters)
Output Voltage: USB port: 5V/700MAH
                        DC port: 5V/8.4V/9V    2.7A max
                        DC Port: 12V/16V/19V  4.5Amax
Output Current: 4.5A Max
Power: 82WH
Static Current: <100 ua
Charging time: about 5-6 hours
Discharging time: about 3-6 hours
Cycle life: >500 times
Working temperature: -10t to 50t
Size: 195×100×25mm
Net Weight: 605g
Gross Weight: 910g

Operation

In order to keep safe in using the Move Power, please comply with the following:

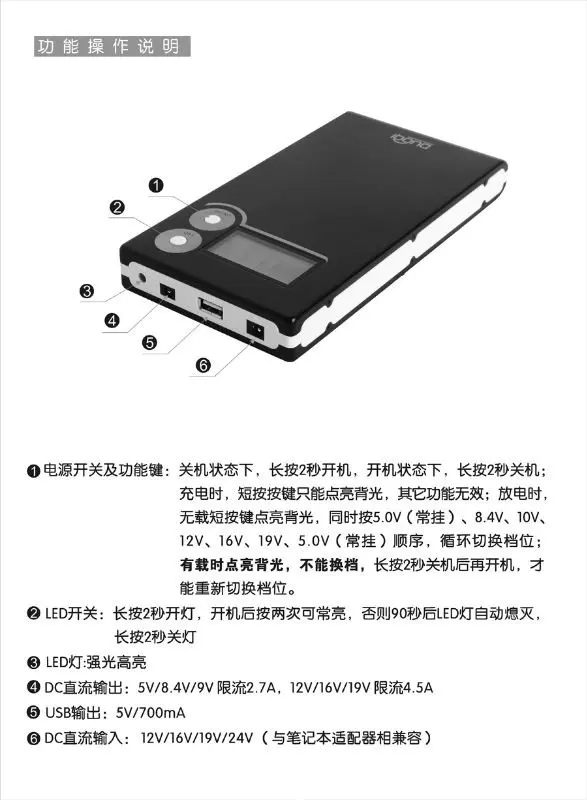

1. Power “ON/OFF” button and function key
When the device is power off, push power “ON/OFF” button two seconds to turn it on.
When the device is power on, push power “ON/OFF” button two seconds to turn it off
When charging, short-time push “ON/OFF” to backlight the LCD screen.
When the battery is not connected with other devices, you can change the output voltage from 5.0V to 8.4V, 10V, 12V, 16V, 19V.
NOTE:
When the device was connected with other portable electrical products, it cannot change the output voltage. After pushing the power “ON/OFF” button two seconds later, it can be changed output voltage again.
2. LED flashlight button
Turn On: Pushing LED button 2 seconds. Pushing it two times when the device is power on, it can be light until you shut it down when pushing LED button again.

Turn Off: Pushing LED button 2 seconds
3. LED flashlight
4. DC output: DC port: 5V/8.4V/9V    2.7A  max
      DC Port: 12V/16V/19V  4.5A  max
5. USB port: 5V/700 MAH           0.7A  max
6. DC input: 12V/16V/19V/24V (compatible with various of laptop adapter)

A.
Charging voltage and current: 16V/1.2A, 19V/0.7A, 24V/0.3A. The charging voltage can be shown when this situation.

 Status      Charging volatge     Charging current
charging     16V                        1.2V
charging     19V                        0.7A
charging     24V                        0.3A
When move bank voltage ≤9.9v 1/3 Constant-current charging
 ≥9.9v Constant-current charging
When each cell is 4.2V constant-voltage charging
 Charge finished  ≤1/10 Constant-current charging
When charging finished, each cells voltage≤4.23V, if not, the system will be shut down automatically;
B.
6 fixed output voltage: 5.0V±0.05V  8.4V±0.1V  9V±0.5V  12V±0.5V
                                  16V±0.5V      19V±0.5V
C.
Hardware controled output current
   1. USB output current: 700MAH
   2. 5V/8.4V/9V output current:2.7A
   3. 12V/16V/19V output current 4.5A±0.1A
D.
Software control output current
   1. 5.0V 8.4V 9V: 3.0A±0.1A
   2.12V 16V 19V: 4.8A±0.20A
E
Output Lockout Function (it’s very important to protect customer’s device)
   1. DC output: when output current is more than 75mA±10mA, this output voltage will be lockout. So you cannot change the output voltage now. If you need other output voltage, please remove the connected equipment and restart the move power
   2. USB output: when output current is more than 50mA±2 mA, it keeps output. Or it will be shut down after 1 minute.
F
The Move Power shuts down 1 minute later when it does not connect the load or do not comply with the lockout status.
G
Charging and discharging at the same time
H
Output holding function
    1. USB holding:  it keeps output whatever connected loads or not. You can change the status by pushing the ON/OFF button.
    2. DC holding : any output lockout s status, it can be held by pushing ON/OFF button two times, whatever connected loads or not. You can change the status by pushing the ON/OFF button.
I
Protection
    1. When DC 5V/8.4V/9V output short circuit, the Move Power will be protected automatically by IC inside. And recovered again when short circuit problem resolved. When DC 12V/16V/19V output short circuit, the Move Power shuts down instantaneous and could not be opened until charging it again. When USB output short circuit, the Move Power shuts down instantaneous.
2. When the Move Power voltage below 9.6V, the backlight and LCD screen flickering to remind you charging it. When below 9.3V, it will be shut down.
3. When the Move Power is power on, it will be shut down if do not connect the loads in 1 minute.
J.
LED button
Any status, push the LED button 2 seconds, you can power ON/OFF the flashlight. When flashlight was opened, push it 2 times again in 90 seconds, it will be lighted long time.
K
LCD Display
   1. When the Move Power is starting up, the backlight and LCD screen light together, shows battery symbol, USB symbol, voltage indicator and the last time output voltage. The backlight turns off but LCD display will not change after 5 seconds later.
   2. When insert the charger, the backlight and LCD screen light together, shows battery symbol, USB symbol, and charging voltage. The backlight turn off 5 seconds later, LCD display do not change.
   3. It will display symbol of continuous output status if the output lockouts

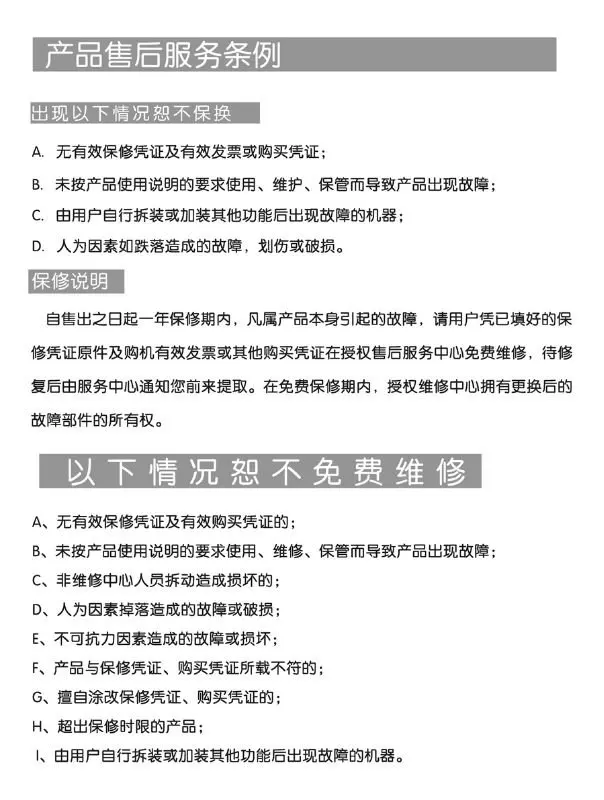

Warranty Card

The QA range
1. We provide the replacement service to all the defective products which sold out for 3 months and repair within 1 year.
2. In order to ensure you can enjoy the service of replacement and repair, please keep your Warranty Card and sale receipt well. Please contact the distributor if any question else.
3. The Warranty Card is unique. So we cannot give the duplicate if card is missing.

It will be charged as below:
1. The products without our warranty card and valid invoice or purchase vouchers or the barcode are inconsistent with the products.
2. The pproducts malfunctions caused by incorrect operation, maintenance and preservation that are not according to our required product instruction;
3. The product was damaged by dismantled privately, falling, scratch or damage.
4. All the man-made malfunctions. (Waterish logged or damaged by tool)
