Control Board: SCUN :

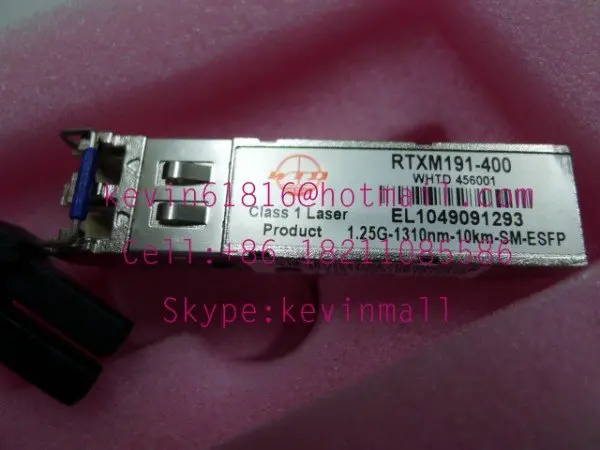

The following is the uplink SFP module:

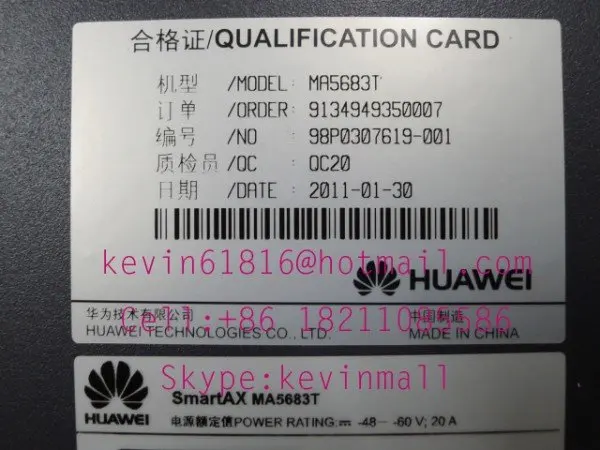

The power rating is DC,48---60V,20A :

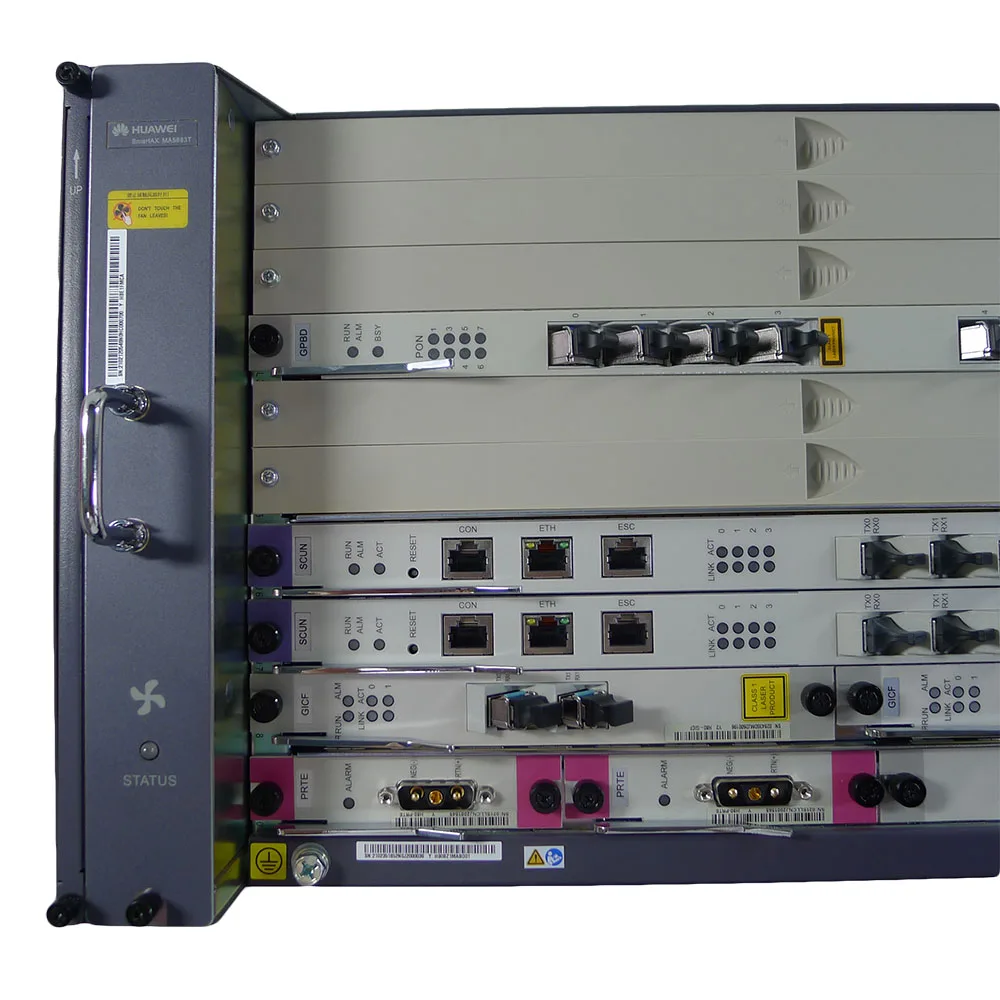

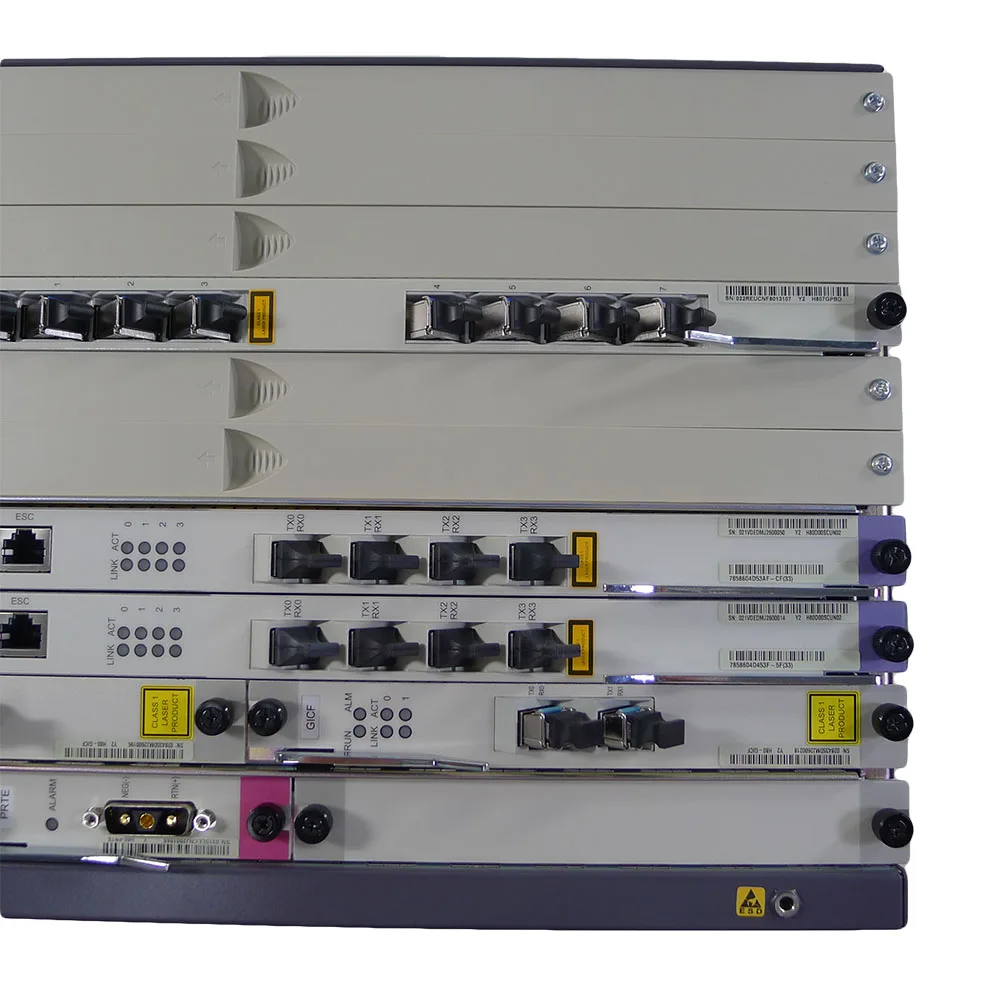

packing list

Main control board SCUN or SCUK: 2 pcs;

power board PRTE: 2 pcs;

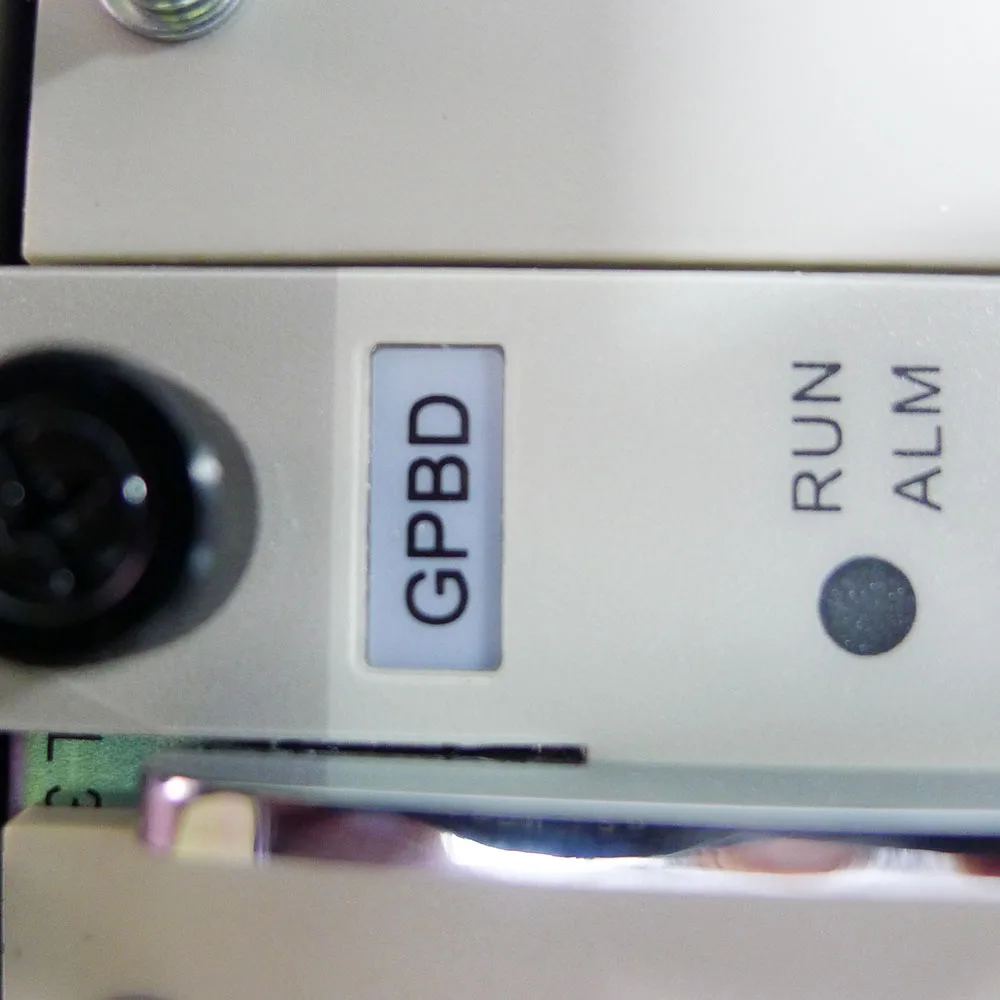

GPON board GPBD or EPON board EPSD: 1 pcs;

Uplink board GICF with 2 uplink module of 1.25G：1 pc

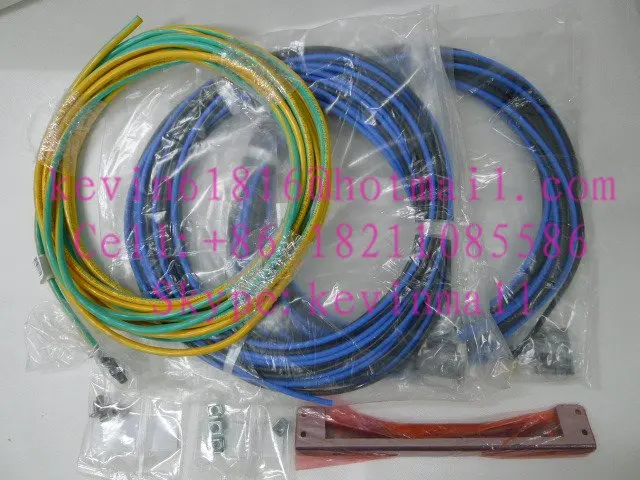

the other accessories:

power cable 2 pcs;

earth cable 1 pc;

mounting bracket 1 pcs;

screw nut.

The power rating is DC,48---60V,20A, the following link is for the power supply, you need to buy seperately:

http:/store/product/Original-Emerson-power-supply-in-cabinet-for-Huawei-OLT-or-ZTE-OLT-48V-20A-power-adapter/208276_622864530.html

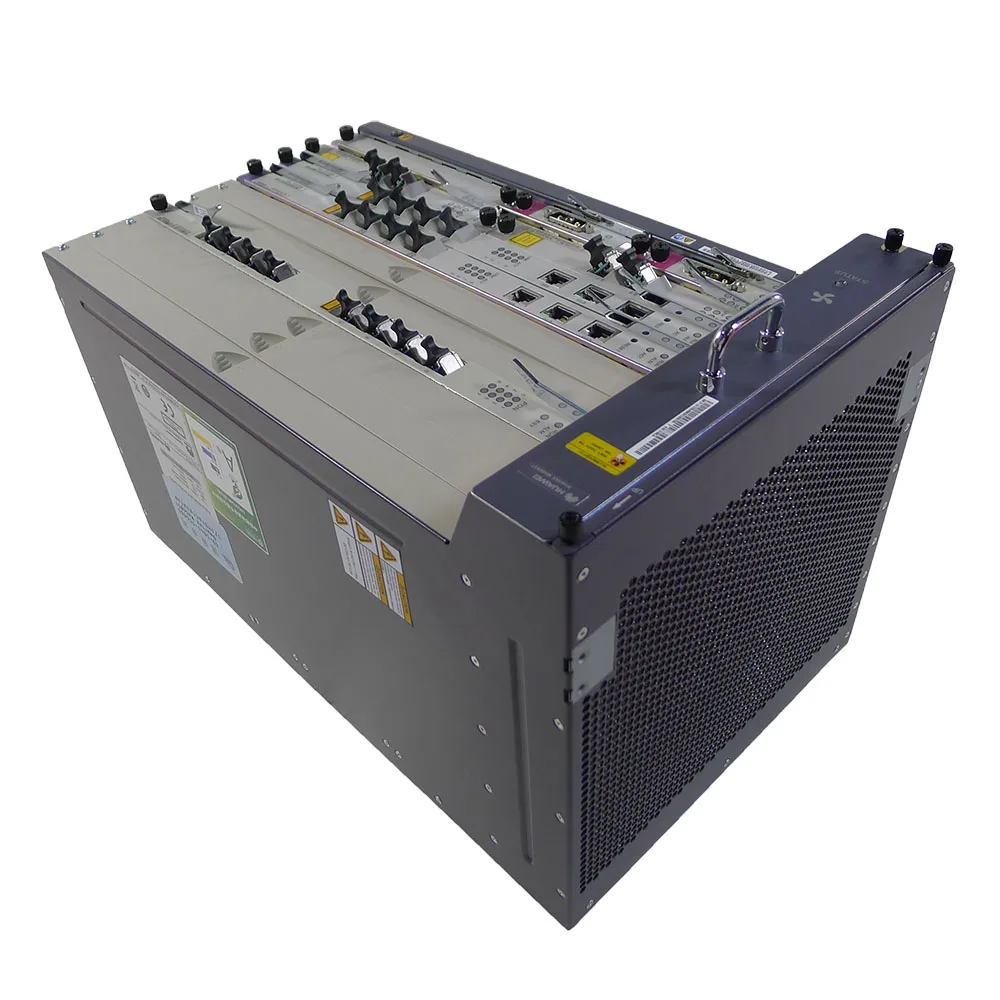

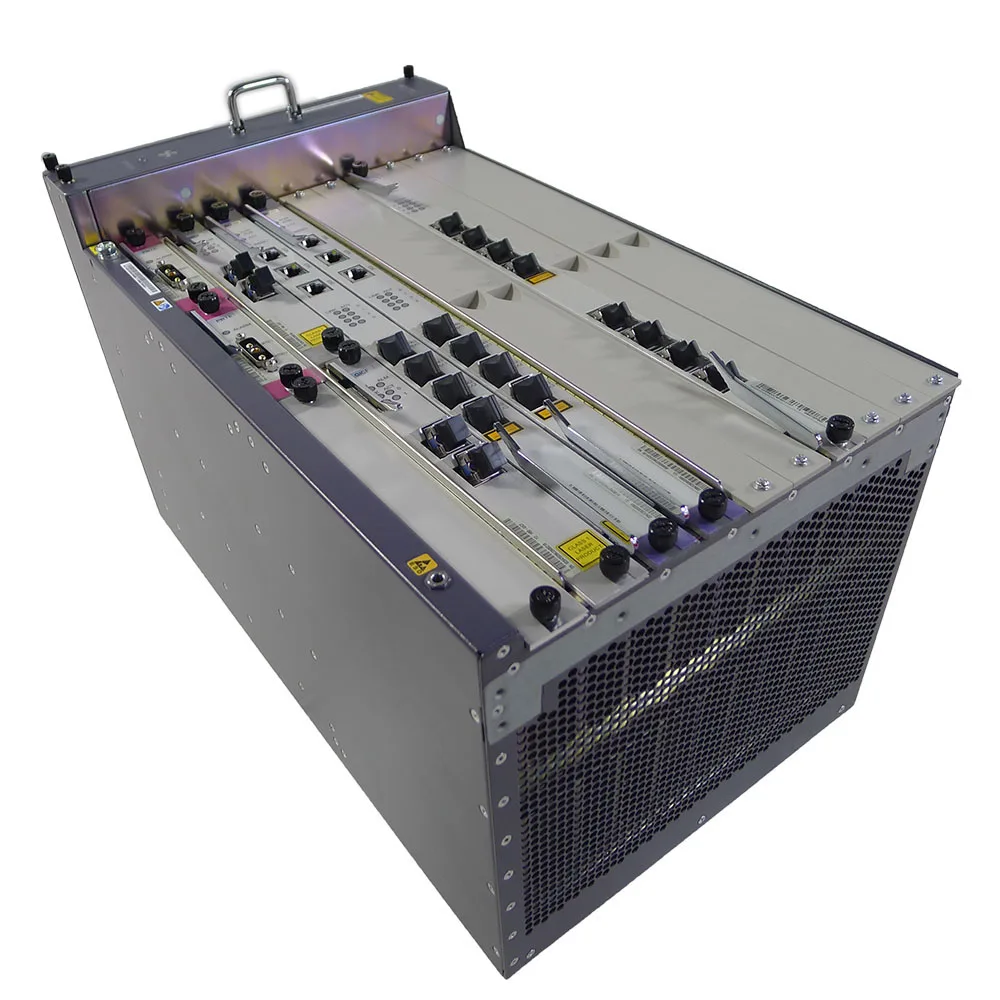

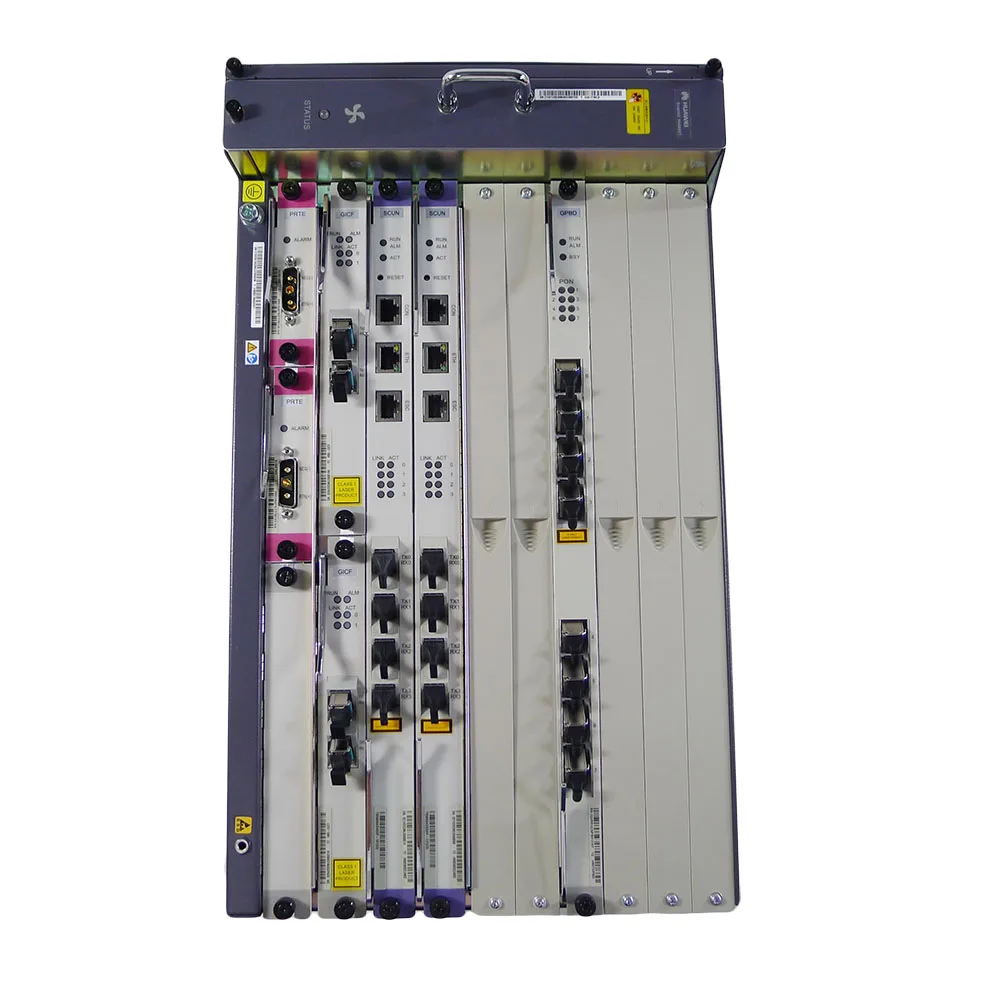

MA5683T

SmartAX MA5683T is the global first all-in-one access platform which can provide DSL and optical integrated access. It can provide high density ADSL2+, VDSL2, POTS, ISDN, PON and Ethernet fiber P2P access, triple-play service, and TDM/ATM/Ethernet leased line services for business customers.

The MA5680T can also offer mobile backhaul with high reliability and high precision clock, and high density GE/10GE interfaces for cascading remote access equipments. MA5680T helps to simplify network architecture, to enable seamless migration in FTTx network and lower TCO essentially.

Features

Any Access

Support multiple access methods, VDSL2/ADSL2+/G.SHDSL/POTS/ISDN/ PON/Ethernet P2P;

Support multiple scenarios: FTTC / FTTB / FTTH / FTTO / FTTM.

Any Service

Large capacity IPTV service provision, 8K multicast users and 4K multicast channels;

H-QoS support 3-level QoS (Different ISP/service/user) guaranteeing OLT wholesale;

Traditional E1 service access, NATIVE TDM or CESoP for traditional E1 service of enterprise and mobile backhaul;

E2E high reliability guarantee for business and mobile backhaul, BFD/LAG/Smart Link for uplink redundancy and 50ms switching time of Type B for fiber protection;

Support local traffic self-switching, which meets the requirements of enterprise and campus network.

Access and Aggregation Integrated

Large aggregation capacity, 3.2T bit/s backplane capacity,960G bit/s switch capacity, 512K MAC addresses;

High density GE/10GE interfaces for cascading, up to 36*10GE or 140*GE interfaces, no need for additional investment of aggregation switches;

High reliability networking support direct connection to the BRAS, and hitless software upgrade function.

Unique ATM DSLAM Cascading

Cascade ATM DSLAM with ATM STM-1 interfaces;

Reduce OPEX by reusing ATM DSLAM and removing ATM aggregation network.

Green

First company that complies to COC standard, average DSL port power consumption is 10% less than industry;

The maximum power consumption of the 8-port GPON line card is only 55W, which is 30% less than industry.

Applications & Benefits

Network Seamless Migration, Protect Investment

Unified fiber/copper platform, maximizes network resource value;

Lower investment risk in network transformation with equipment reuse: FTTE, FTTC, FTTB, FTTH or mix.

Full Service Access, Increase Revenue

Unified access for resident, business and mobile backhaul, reduce network equipment and TCO;

Enriched experience, reduce churn and increase ARPU.

Energy Saving

Cut down power consumption and maintenance cost.

Original equipment from Huawei factory.

the following are the related products:

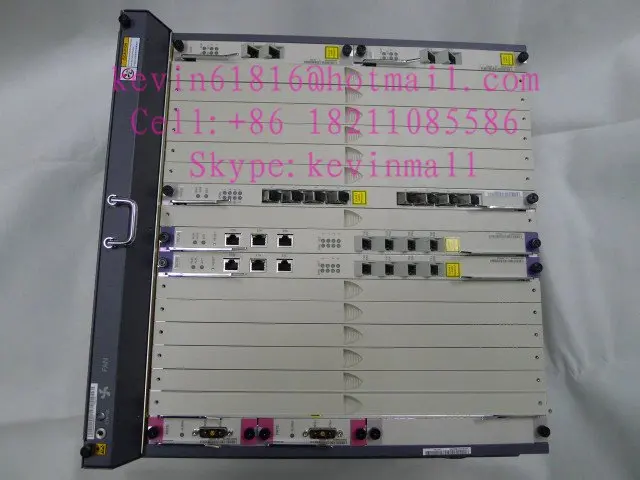

original Huawei MA5680T GPON or EPON OLT equipment of larger model, Optical Line Terminal, machine room netcore US$ 3400.00/piece
