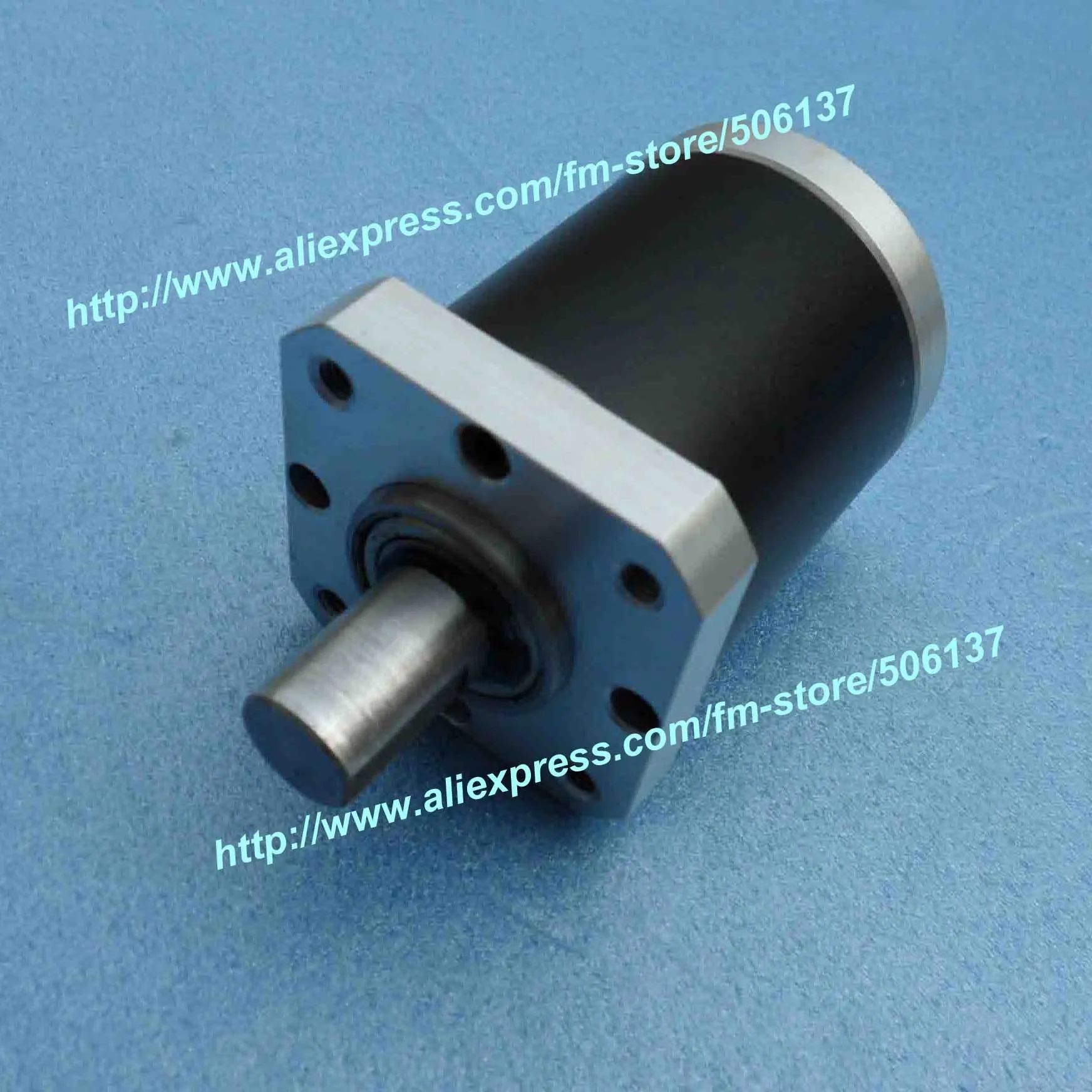

52mm Micro Planetary Speed Reducer GP60-10 planetary gearbox 343KG.cm high torque gear box | Обустройство дома

52mm Micro Planetary Speed Reducer GP60-10 planetary gearbox 343KG.cm high torque gear box | Обустройство дома

 Features:

1.cylindrical external shell, small volume;
2.compact structure;
3.output end plane connection;
4.easy installation;
5.the product can select appropriate flange and adapter bushings adapter any motor.

Ratio

•




  Stage 1 Efficiency 90%	Ratio:	4.4:1	3.6:1
  	Rated torque (N.m)	2
  	Max. torque(N.m)	6
  Stage 2 Efficiency 81%	Ratio:	15:1		18:1		13:1
  	Rated torque (N.m)	8
  	Max. torque(N.m)	25
  Stage 3 Efficiency 73%	Ratio:	47:1	55:1		65:1		77:1
  	Rated torque (N.m)	16
  	Max. torque(N.m)	50
  Stage 4 Efficiency 66%	Ratio:	168:1	198:1	234:1	276:1	326:1
  	Rated torque (N.m)	20
  	Max. torque(N.m)	60

Parameters of the gearbox

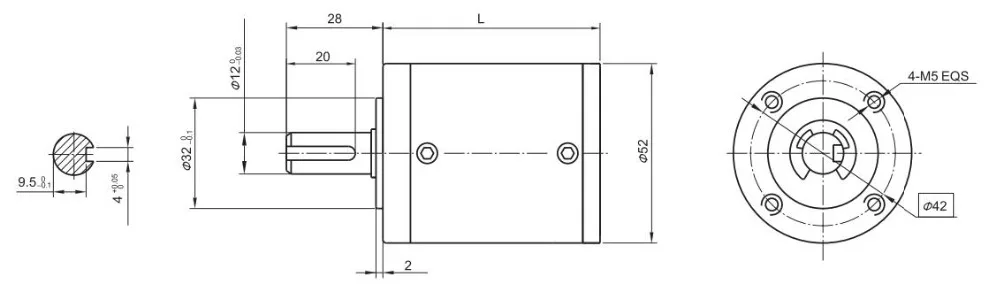

Dimensions:

Motor Installation:

 Other models:

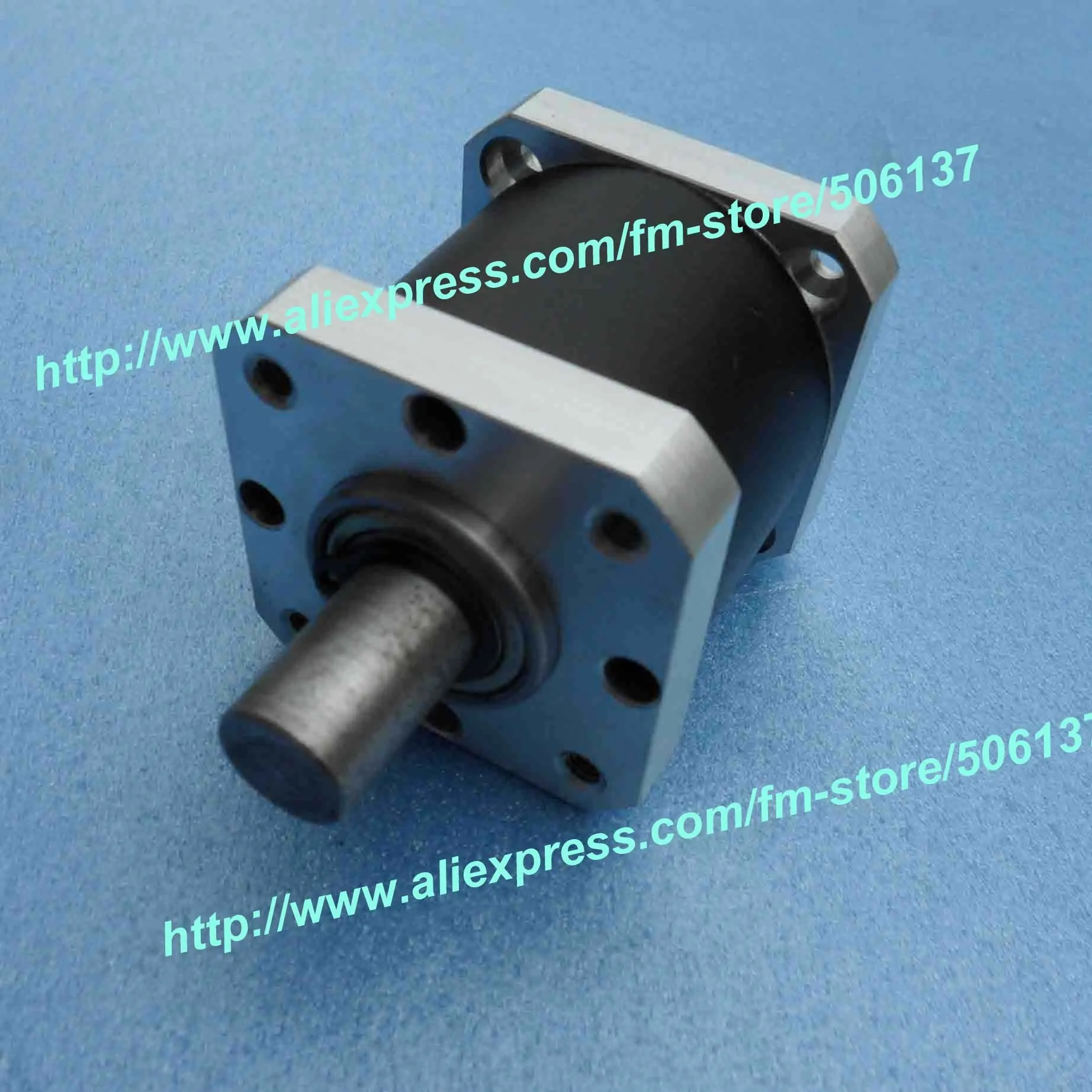

35mm Micro Planetary Speed Reducer , GP35-1 planetary gearbox US$ 49.00 - US$ 69.00/piece

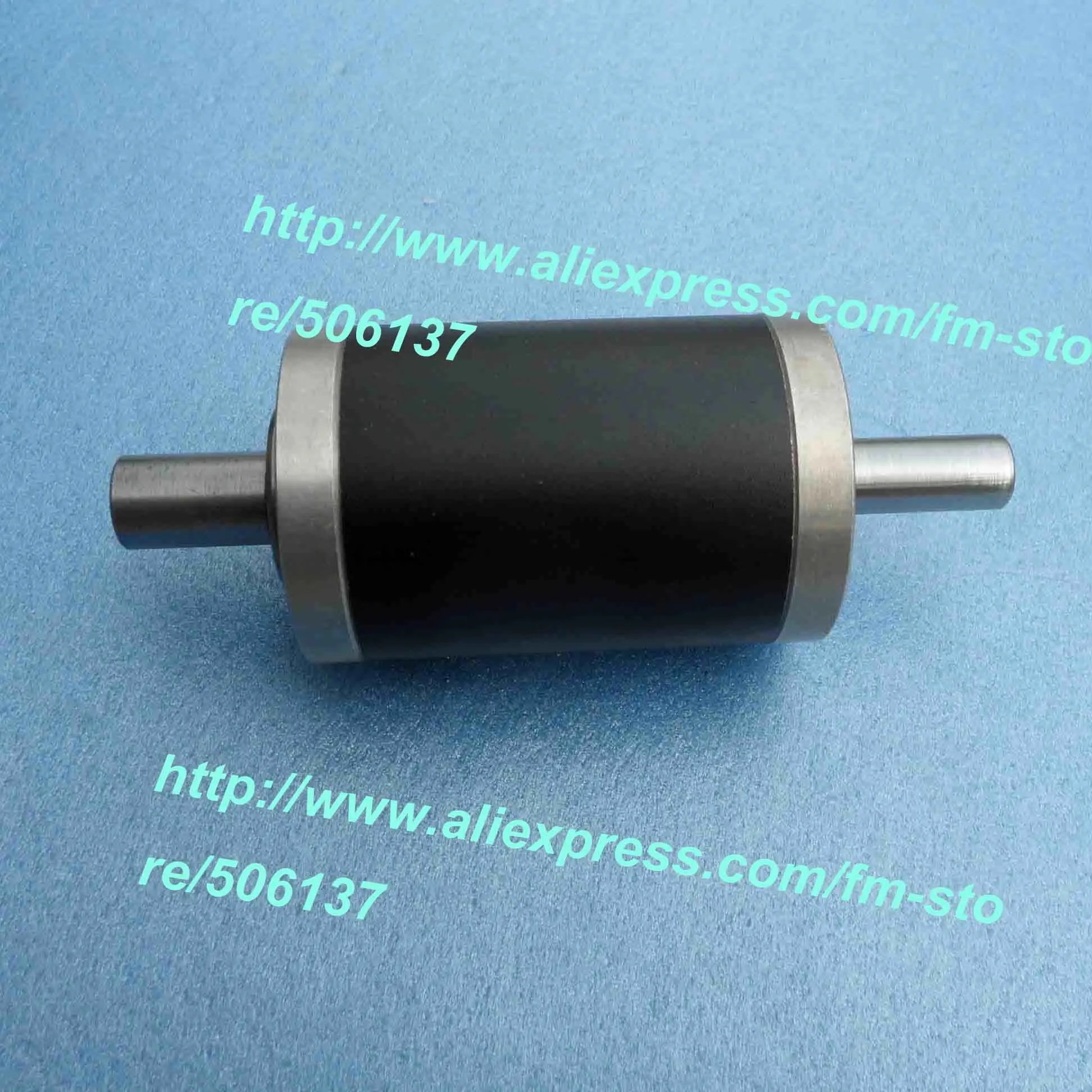

35mm Micro Planetary Speed Reducer , GP35-Z planetary gearbox US$ 49.00 - US$ 69.00/piece

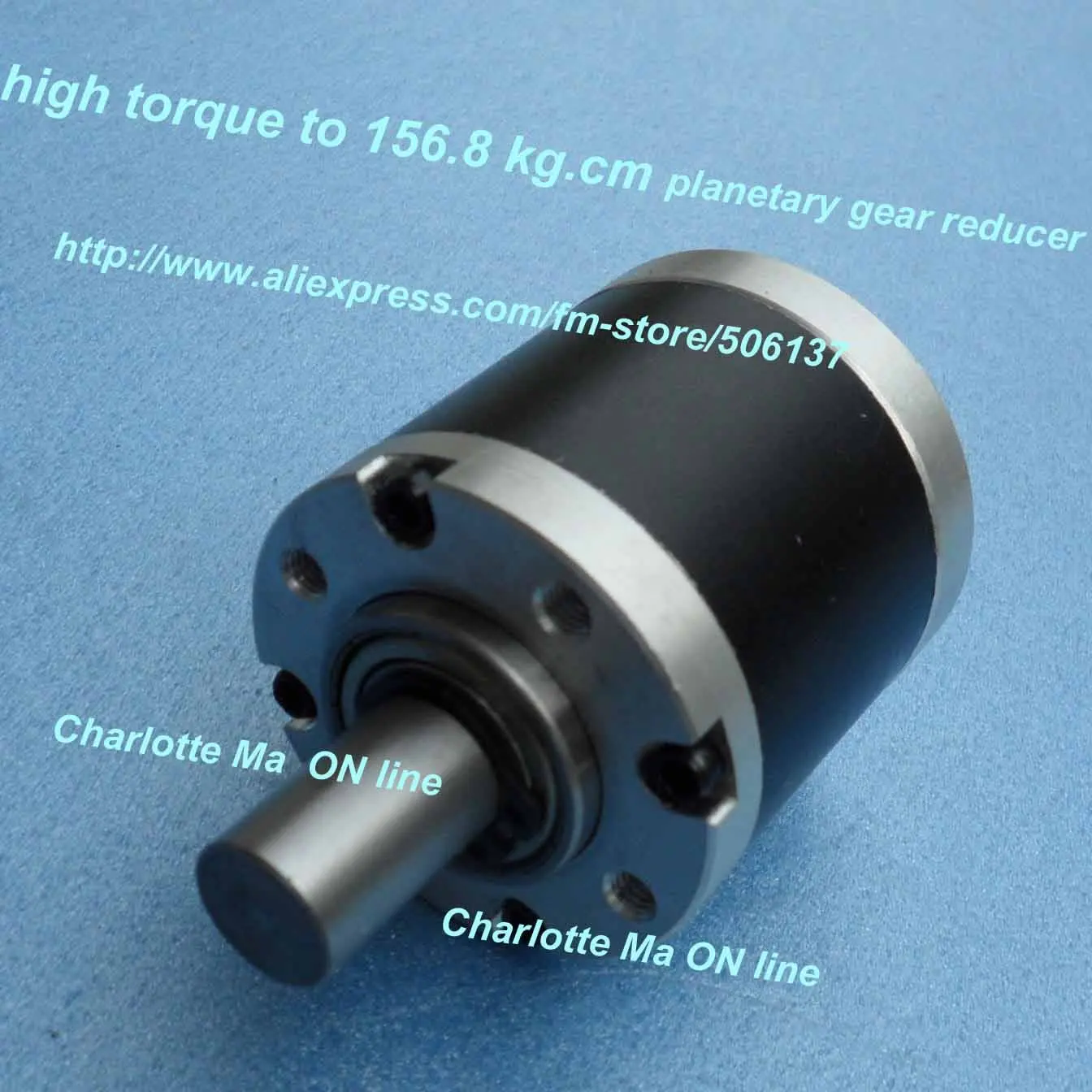

42mm Micro Planetary Speed Reducer GP42-0 planetary gearbox US$ 78.00 - US$ 89.00/piece

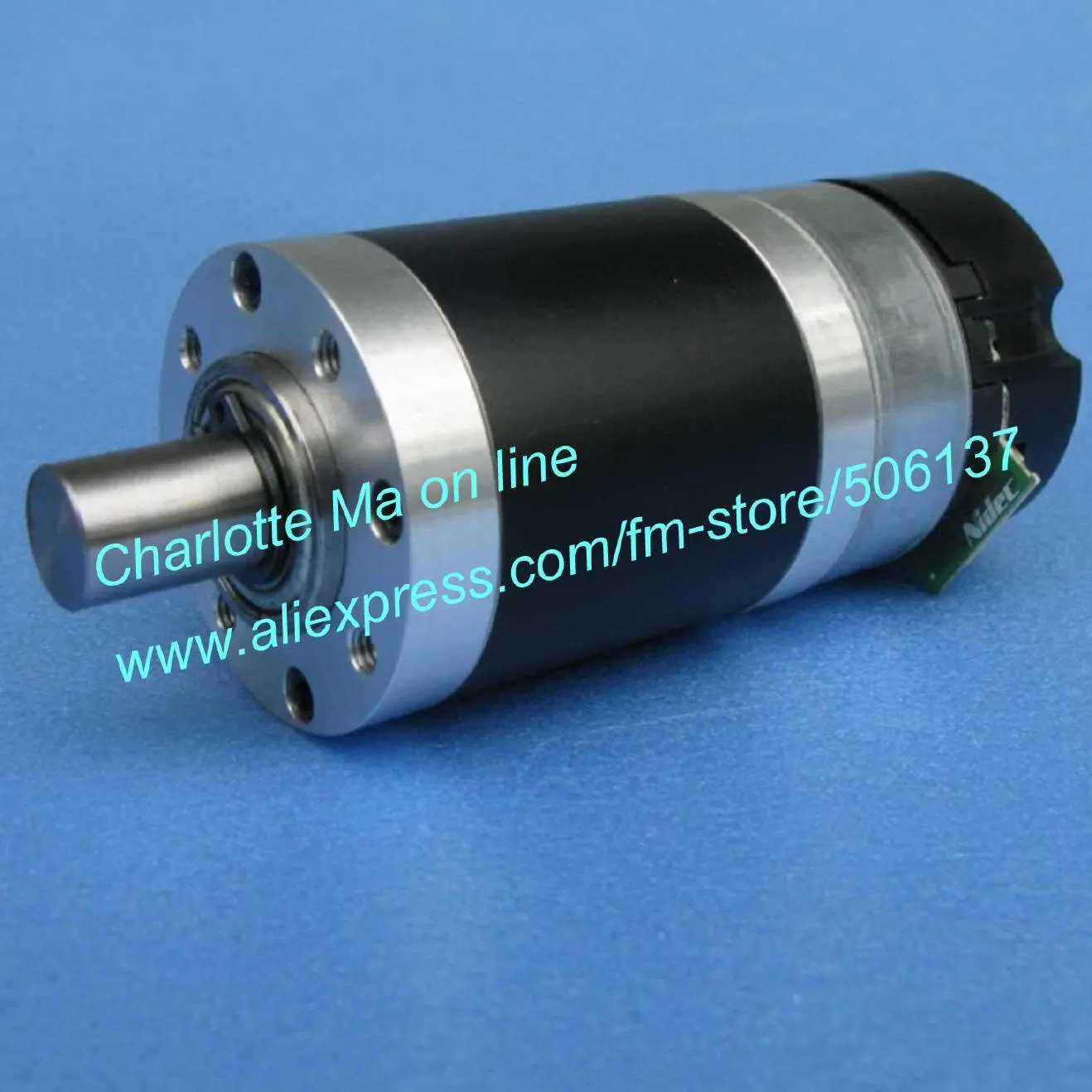

explosion-proof 24v DC servo Brushless gear motor with planetary gearbox,gear reducer,19.6kg.cm planetary gear motor US$ 67.00 - US$ 79.00/piece

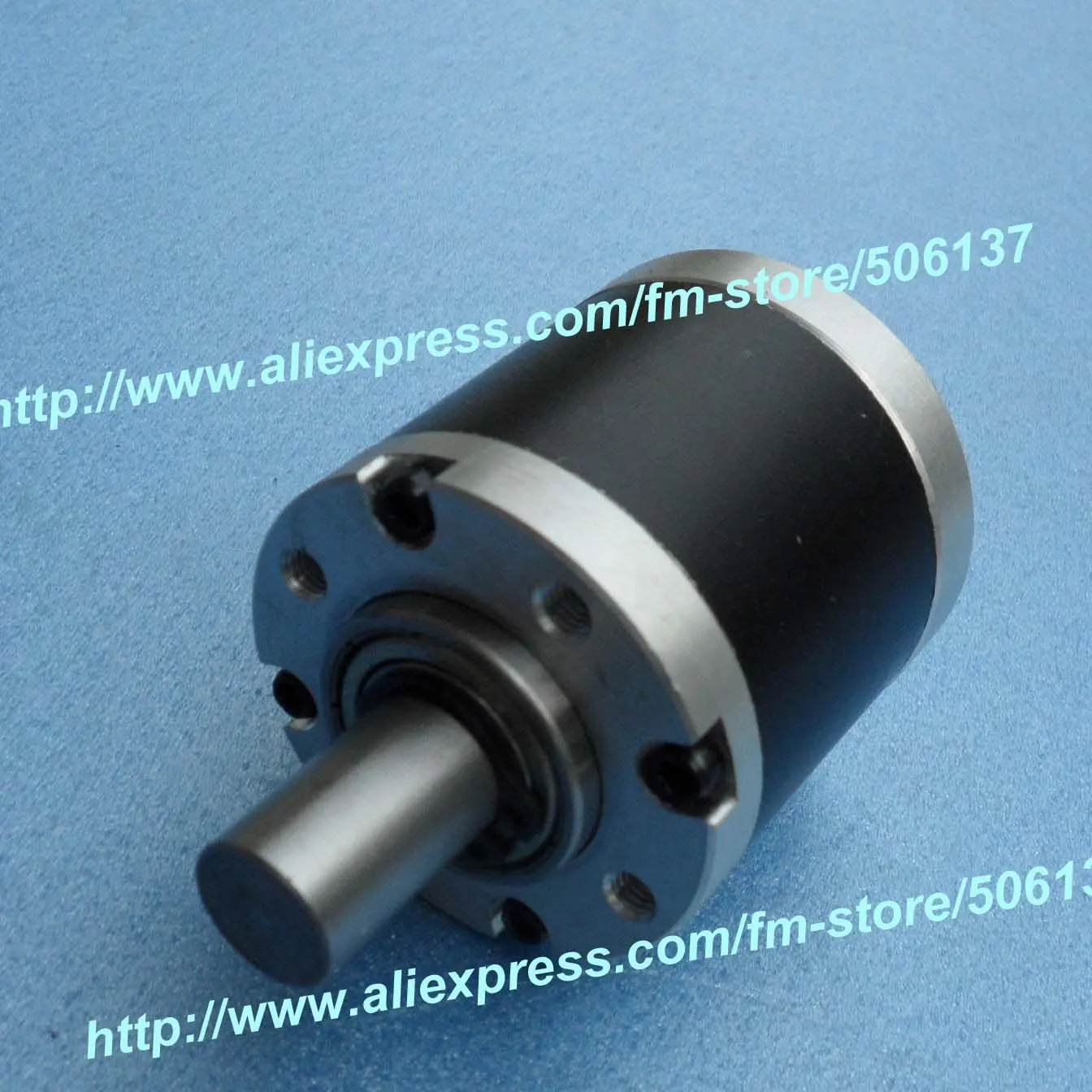

55mm Micro Planetary Speed Reducer , GP55-0 planetary gearbox US$ 49.00 - US$ 69.00/piece

57mm Micro Planetary Speed Reducer , GP57-10 planetary gearbox US$ 69.00 - US$ 85.00/piece

60mm Micro Planetary Speed Reducer , GP60-z planetary gearbox,343KG.cm high torque planetary gear box US$ 72.00 - US$ 95.00/piece

60mm Micro Planetary Speed Reducer , GP60-1 planetary gearbox,343KG.cm high torque planetary gear box US$ 72.00 - US$ 95.00/piece
