Hot sale ACHI IR6500 for computer PC laptop IC bga reballing infrared BGA rework machine | Soldering Stations

for the laptop computer and game consoles series chip solderig desoldering reballing etc

this item didn't including remote area delivery cost ,if your delivery address is remote area will need charge extra shipping cost 33USD ,please know it before you place order !

IR6500 improve the temprature senior system ,bottom heater ,cool down system .powerful than before ,can handle more works and fucntion more than older version

functions and safety were retrofitted and upgraded which is more adapted to user demands.

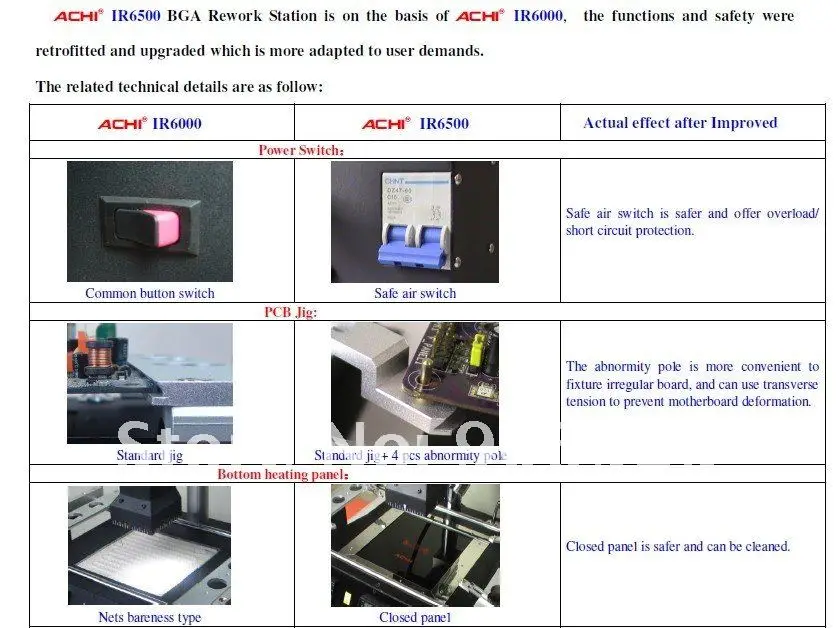

The related technical details are as follow:

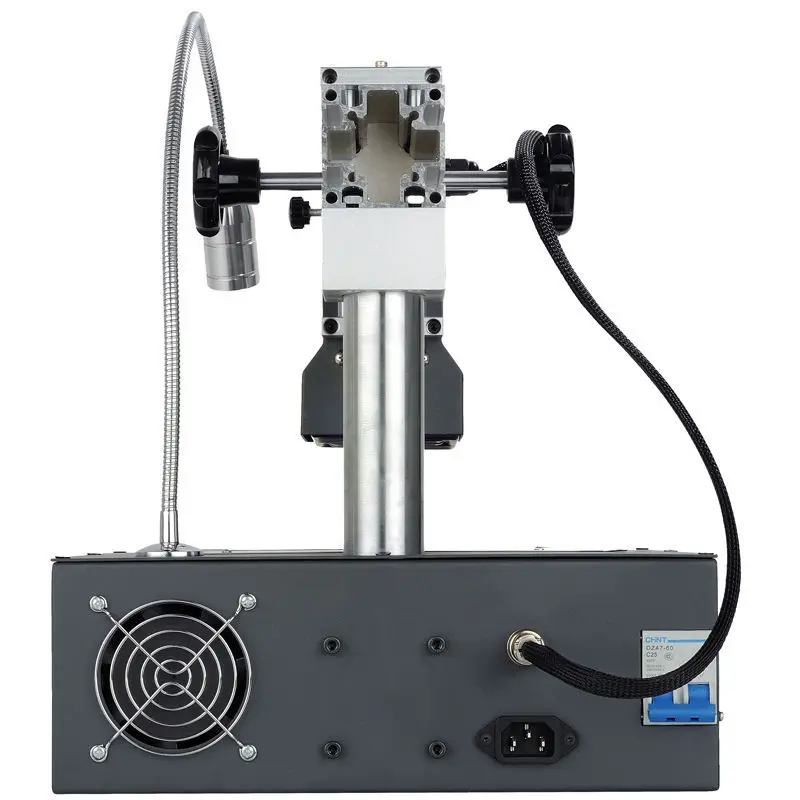

1.Safe air switch is safer and offer overload/ short circuit protection.

2.The abnormity pole is more convenient to fixture irregular board, and can use transverse tension to prevent motherboard deformation

3. Closed panel is safer and can be cleaned

4.Closed panel is safer and can be cleaned

5.OMEGA Thermocouple Wire is more accurate, and more flexible to locate on main

boards.

6. Temperature is more accurate.and temperature setting is much more easy.

Power: 1500W

Voltage: 220V 50Hz

Size : 475 mm×480 mm×420 mm

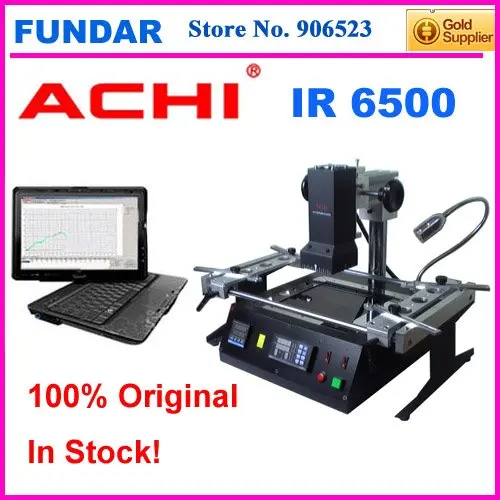

ACHI IR6500 is the latest new product made by ACHI factory,and it still uses advanced dark infrared technology with very competitive price. It updated much from ACHI IR 6000.Below is the details:

1.A tempered glass is added above on ACHI IR 6500 bottom heater,which can make the heat distribute evenly and improve efficiency of reworking.

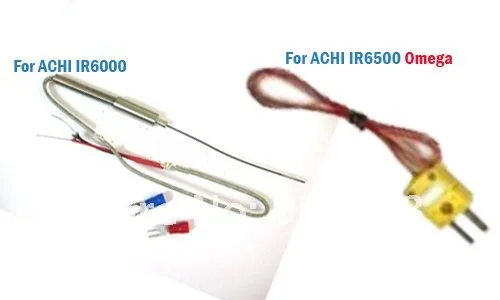

2.ACHI IR6500 uses advanced OMEGA K type thermocouple and the temperature detection is much more accurate.

3.RS232 is changed into plug and use USB connector , which is very convinient to connected with computer or notebook.

4.ACHI IR6500 is added an emergency power switch, which can stop the working machine automatically in time when the machine short circuit happens.

5. ACHI IR6500 was equipped with 4 rework support jig, which can help to fix the mainboard more easily.

ACHI IR6500 can rework big chipset as big as 70mm*70mm. You can use it in broad area such as notebook,desktop, switch and also XBOX360, PS3 and other area SMD reworking if you own one.

It is ideal for welding and reworking of CBGA, CCGA, CSP, QFN, MLF, PGA and  all the green epoxy type μBGA.

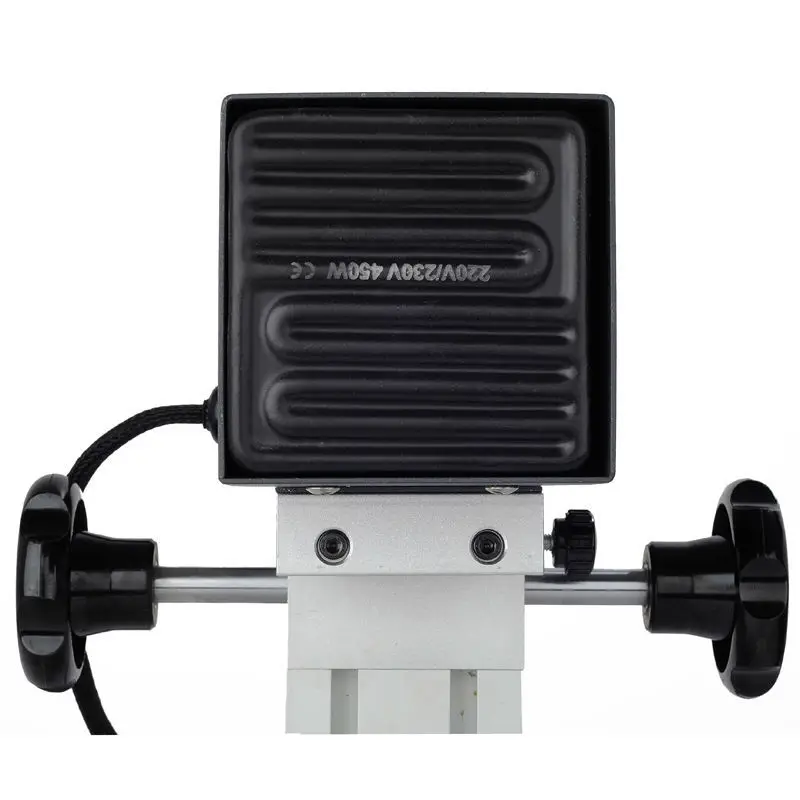

It has Large top heating area, it makes CPU block, Various shield cover and component slot repair much more easier.

ACHI IR6500 gets over the problem of ir rework station heating slowly and disorderly caused by the air flow.It is with dark infrared technology, the temperature ups quicker and steadily,which can let the desoldering process finish about only 5 minutes.

ACHI IR6500 BGA rework station can also easy deal with the lead free soldering. The max temperature can up to 400 °C.

ACHI IR6500 can be connected to computer or notebook with USB interface and can be controlled by the IRSOFT temperature software. it can set up 8 rising temperature segments and 8 constant temperature segments to control. It can store 10 groups of temperature profiles at one time.

ACHI IR6500 is with contact  temperature sensor, it can capture the accurate BGA temperature at any time. And when soldering finished, it will alert you.

No hot air flow during the reworking process with ACHI IR6500, the surrounding small components is safe. And you can reball BGA with it directly, or reball BGA by hand with it easily with no deformation of the BGA stencils.

ACHI IR6500 is of high integration Design, the smaller workbench, non-mixed cables and the convenient operation ---all the process of soldering controlled by a button.

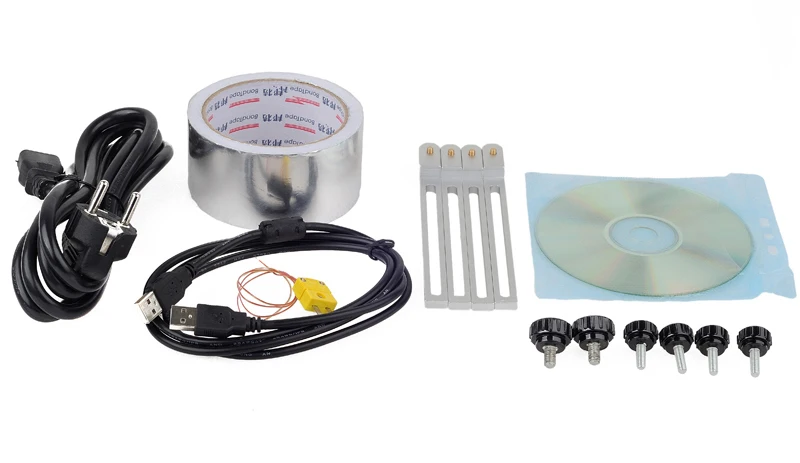

ACHI IR6500 comes with manual and video demonstration CD-ROM,the information is easy to understand. Even if you have never engaged in BGA rework , you can quickly mastere the technology.

The Linear guide type Bracket for ACHI IR6500 can be locked,adjusted by rotating the handle, which can fix PCB board easily, effectively with no PCB board deformation easily.

Please kindly noticed that: the comsumable products for ACHI IR6500 such as top ceramic, bottom ceramic and temperature sensor is with three months warranty.

YOU GET OUR FULLY support on user manual operation video warranty guaranty

we understand deeply that this is high value products ,you will need consider it  very seriously before you order it .any questions just cotact us when you feel free !
