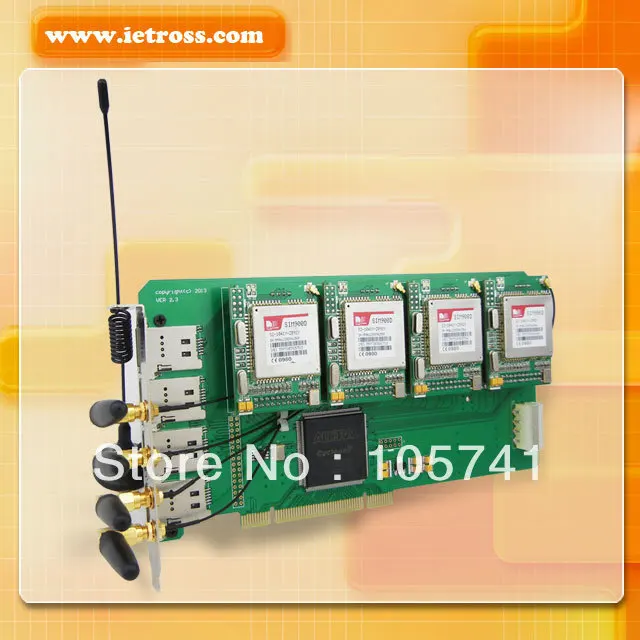

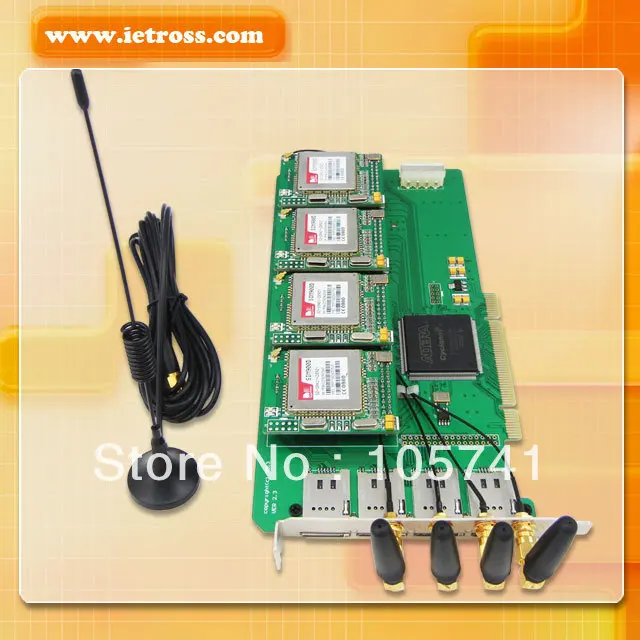

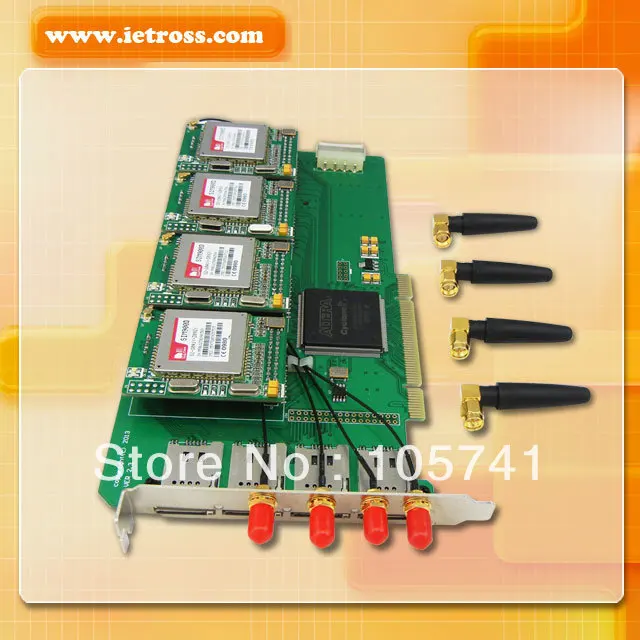

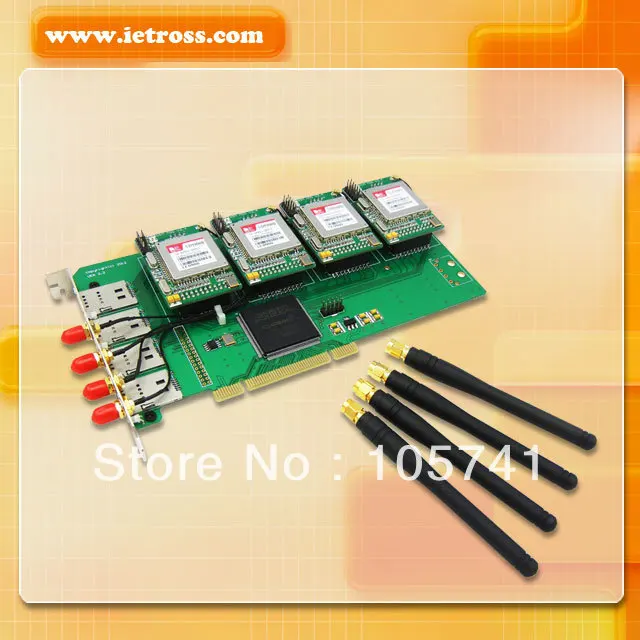

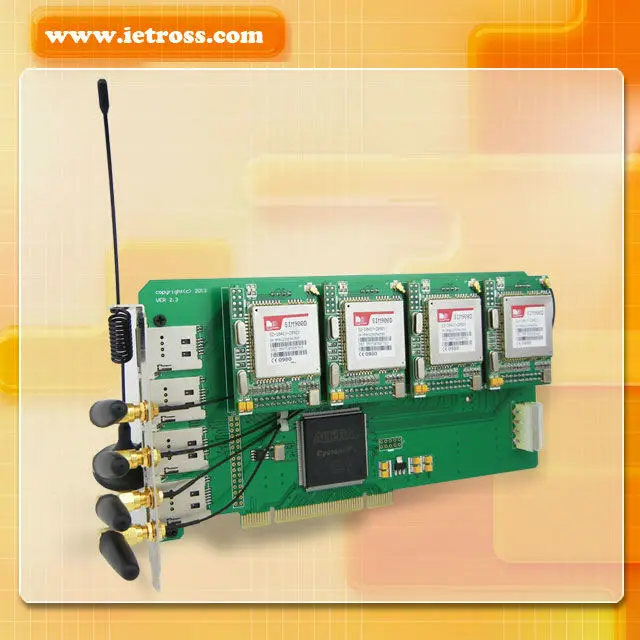

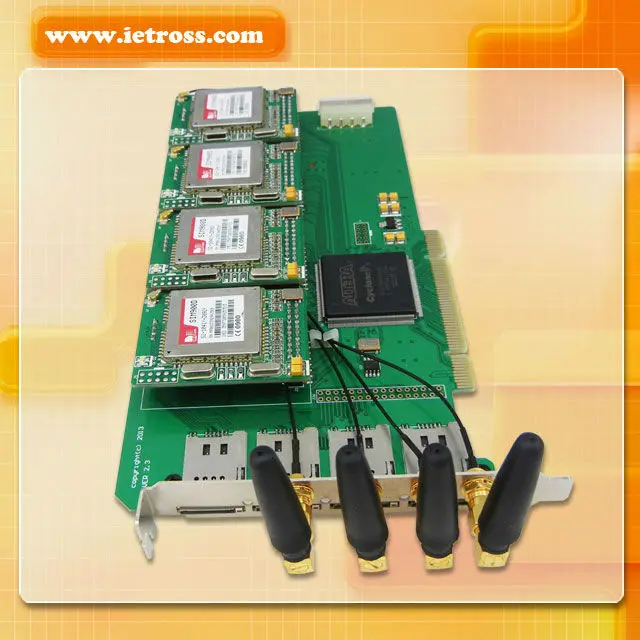

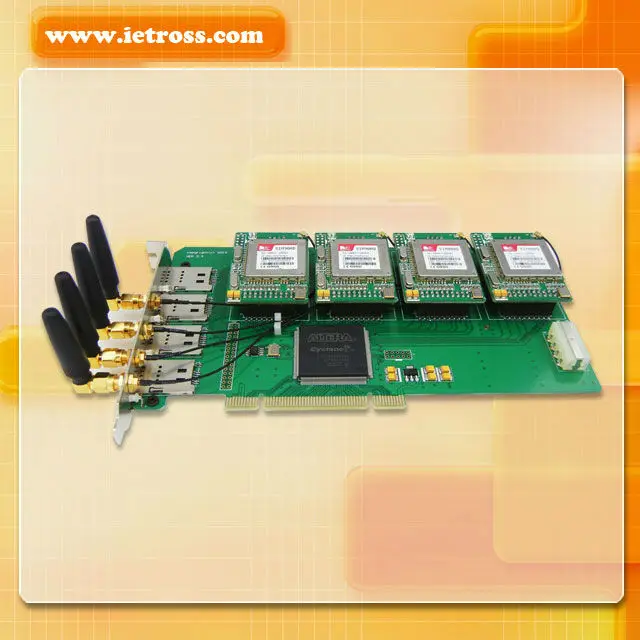

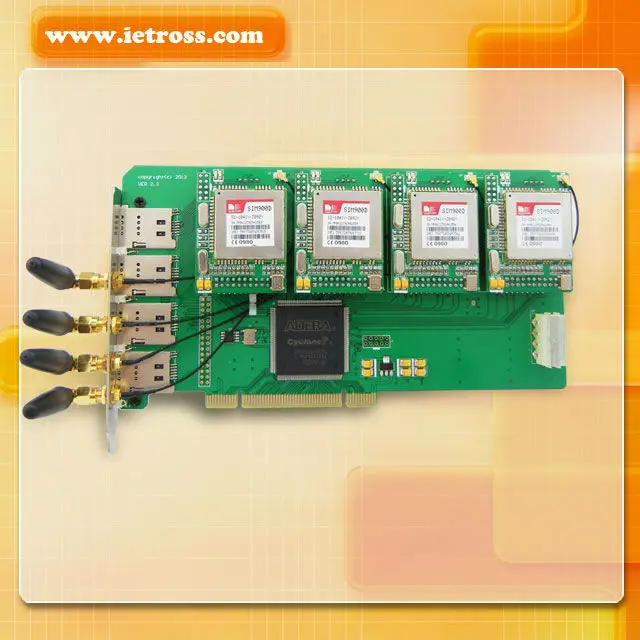

1.Products Name:GSM400G,VoIP PBX Card, TDM400P with GSM modules, PCI card.

Product Features:

Using the same driver as Digium: tdm2400.ko ,any driver patch no need.

Shining light shows the GSM card and Sim card working status.

Easily change the Sim card without opening the PC.

High performance due to the support of interrupt latency(at most 127ms).

Specifically designed for the Asterisk platform, available for Freeswitch, Yate and other open source projects.

Prodcut Introduction:

GSM400G/800G cards support up to 4/8 GSM channels and enables users to access the mobile network with their existing asterisk,freeswitch, yate and others.

It's more than a GSM card. FXO/FXS can be inserted into the slot to be the hybrid FXO/FXS/GSM cards. GSM400G/GSM800G have 4/8 slots respectively. Each slot can be inserted with GSM or Single/Dual FXO/FXS modules.

Product Models

This series include the following models:

Technical Specifications:

Size

length*high*Wide:20.5*11*1.9.

Weight: 310g(GSM400G with 4 GSM ports),460g(GSM800G with 8 GSM ports)

Slots

5v and 3.3v PCI 2.2 bus.

OS  and opensources IP-PBX supported

Os:unix,linux and Solaris

Open source PBX system:Asterisk,Trixbox,elastix,yate,freeswitch,callweaver and more

Leds

Total leds: 4.

One tri-colors led for every interface.

Target Applications

*GSM connectivity for PBX, callcenter,etc.

*GSM gateway

*GSM callback services

Quality Assurance

*FCC Part 15 Class A, FCC Part 68, EC

 *ISO 9002

*Five years parts and labour

*Free online support

*Refundable 3-month return

SM Asterisk Quick Guide

Step 1: Hardware installation

1. Insert GSM card into PCI Socket, and fix it.
2. Insert SIM card into socket.
3. Start server.

Status of indicator light after power on:

1. Start->red light on->turn on GSM power(5-10 seconds)
2. After starting, red light blinks(200ms light and 200ms dark)-> wait for 10 seconds to finish GSM starting.

Changing SIM card or adjust antenna during the using process, GSM module would search for network and reregister automatically.

Step 2: loading driver

1. Using the driver of tdm2400p : modprobe wctdm24xxp
2. To add or modify these 3 configuration as below in chan_dahdi.conf

cidsignalling=dtmf

cidstart=polarity

hanguponpolarityswitch=yes

The channel of GSM is analog FXO channel, and the configuration and usage is same as FXO channel.

Step 3: Description of indicator light

Power on , status of GSM is as below:

1. Light dark -- there is no module or GSM is not started.
2. Green light—Module is registered to GSM notwork successfully.
3. Red light—Module is not registered to GSM network.

Different blink indicates different status of GSM module

 Hardware and software requirements:

 Interface:  PCI 2.2
 CPU    800+MHZ
 RAM   128+MB
 Linux   kernel   2.4.x or 2.6.x
