Attention
This snowmobile conversion kit has certain requirements for the bicycle frame. The rear fork of the bicycle frame is required to be 170mm open. Please measure the size of your rear fork before purchase. If you cannot install it due to your purchase error, we will refuse to pay, please understand, thank you.
The wheels are available in 20-inch and 26-inch sizes.Please confirm the size of the wheel (20 inch or 26 inch) before purchasing.

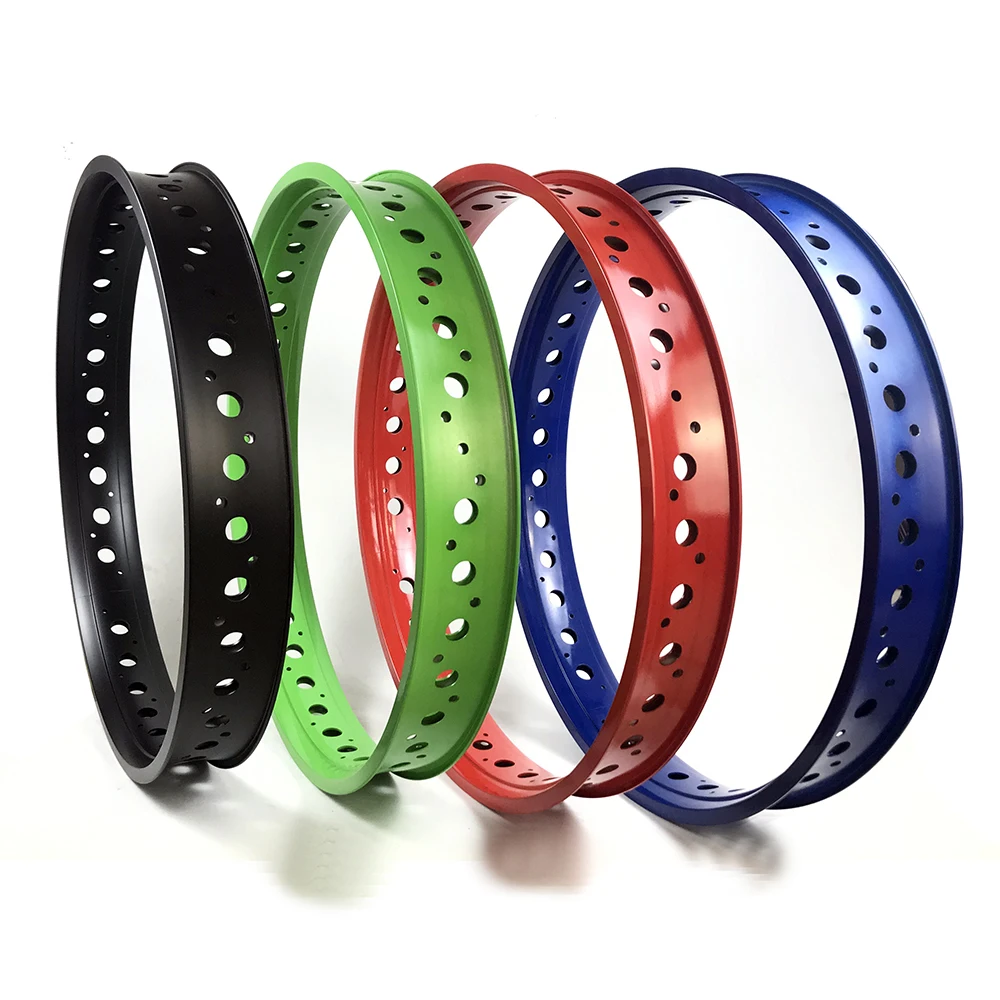

The color of the rim can be changed, if you need to change the color of the rim, please leave a message to tell me the color you need (These options are free).
Product Features
This product can easily convert your ordinary bike into an electric bike.It's hundreds of doller cheaper than buying a new electric bike.It takes one person 1-2 hours to successfully convert it.We will put the installation manual in the box.And we will give you a controller bag as a gift !!!
Packing List
1) 36V/48V 500W rear rotate wheel x1 (without tire)
2) 36V/48V 22A controller x1

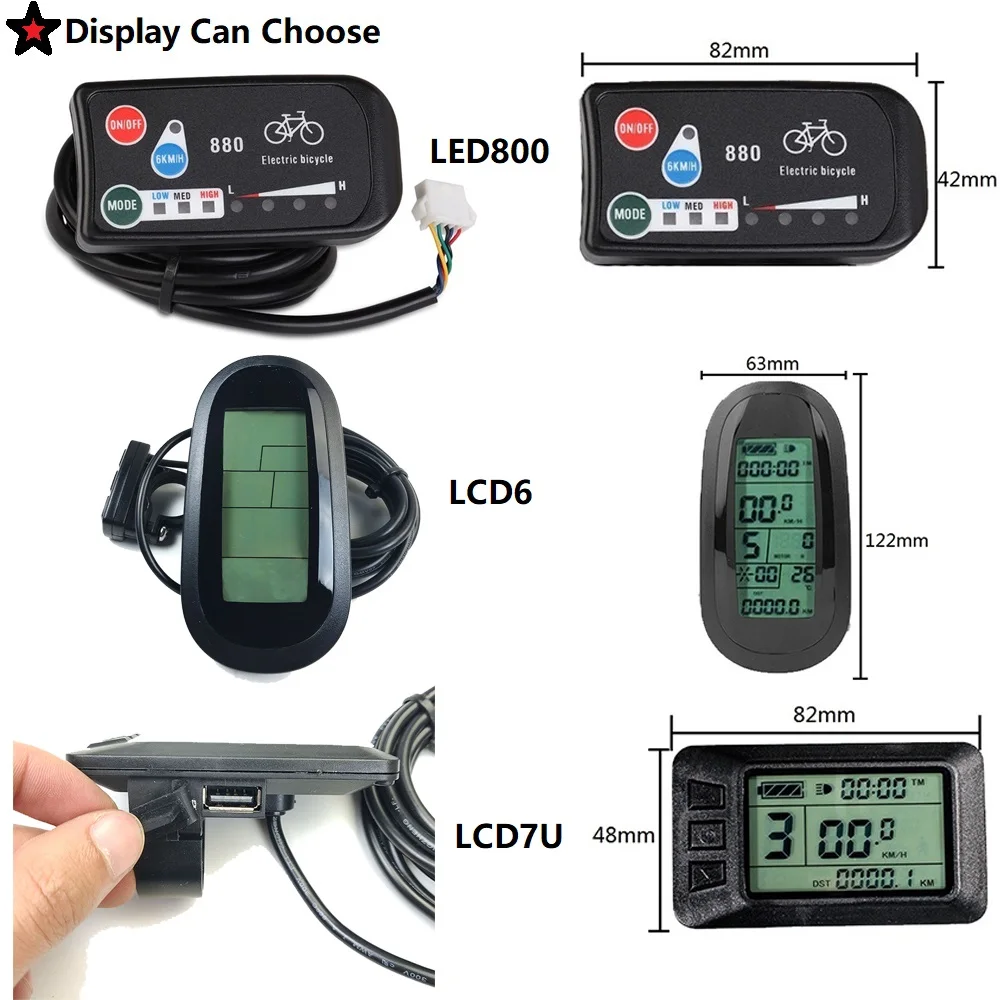

3) Display and manual x1
4) Throttle x1
5) Power Cut-off Brake Levers x1
6) PAS sensor x1
8) Zip ties and Protection line x1
9) Motor extension cable x1
10)Gift! controller bag x1
E-bike Conversion Kit Paramater
Motor:
1. Brushless gear hub motor
2. Installation location:rear wheel
3. Spoked with double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes
4. Disc brake available
5. Rated speed=32KM/H.
6. Load≤200KG
7. Motor cable length=200mm
8. Wheel size: 20inch 26 inch wheel
9.Rear fork: 170mm

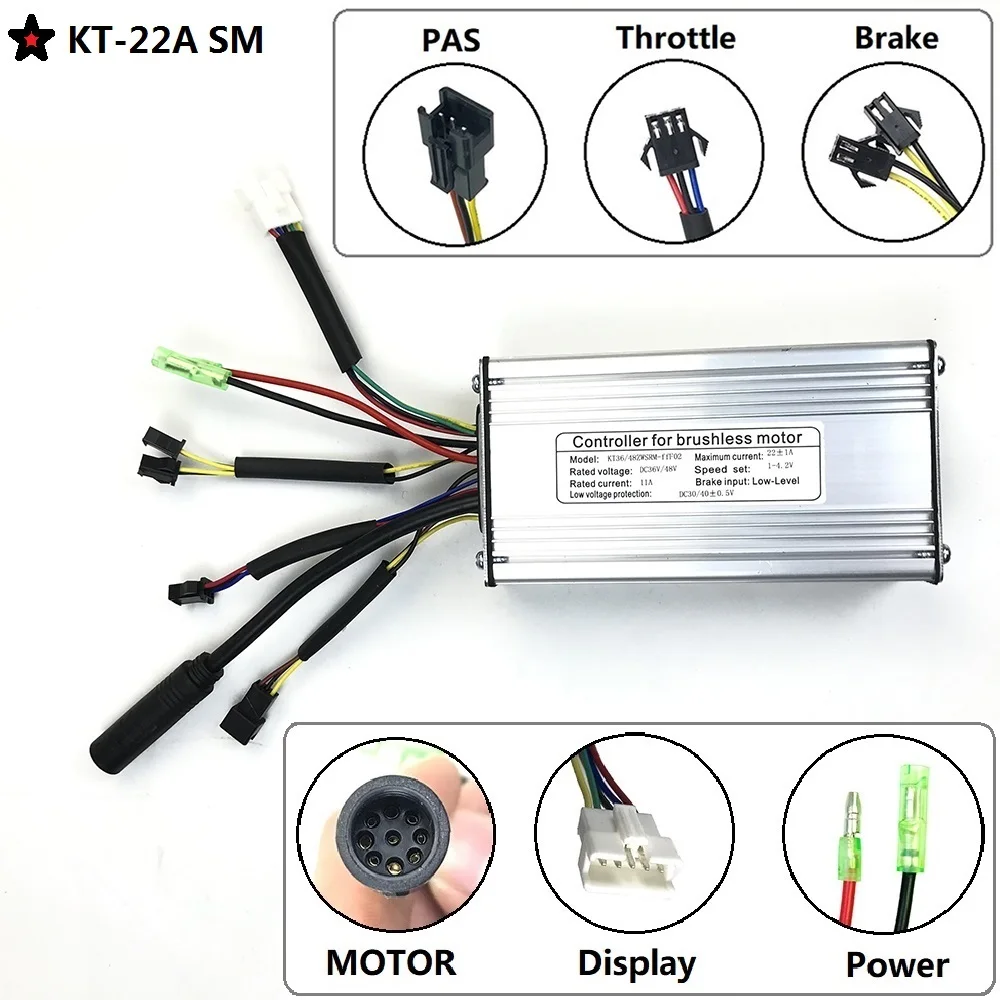

Controller dimension
Size: 128 * 68 * 38 mm
Weight: 350g
Cable length :all about 10-13cm
9 mosfets
Maximum current: 22±1A
Rated voltage:DC36V/48V
Speed set:1-4.2V
Rated current:11A
Brake input :Low-Level
Low voltage protection: DC30/40±0.5V
Additional accessories
If you need inner and outer tires(add $25), freewheel(add $6), disc brake(add $3),Torque Arm Amplifier(add $5). Please click the link and buy the spread.
Electric bicycle accessories optional
MS-BK-2R Click Here MS-BK-ES Click Here
130X Click Here 108X-L Click Here 108-R Click Here
20X Twist Click Here 20X Half Twist Click Here 76X Half Twist Click Here
KT-BZ 10 PAS Click Here KT-D12L PAS Click Here KT-V12 PAS Click Here
Product Details
![]()
![]()
![]()
![]()
![]()
![]()
Installation Steps
![1]()
![2]()
![4]()
![5]()
![6]()
![7]()
![8]()
![9]()
![10]()
![11]()
![12]()
![13]()
![14]()
![15]()
![]()
![]()
![]()
