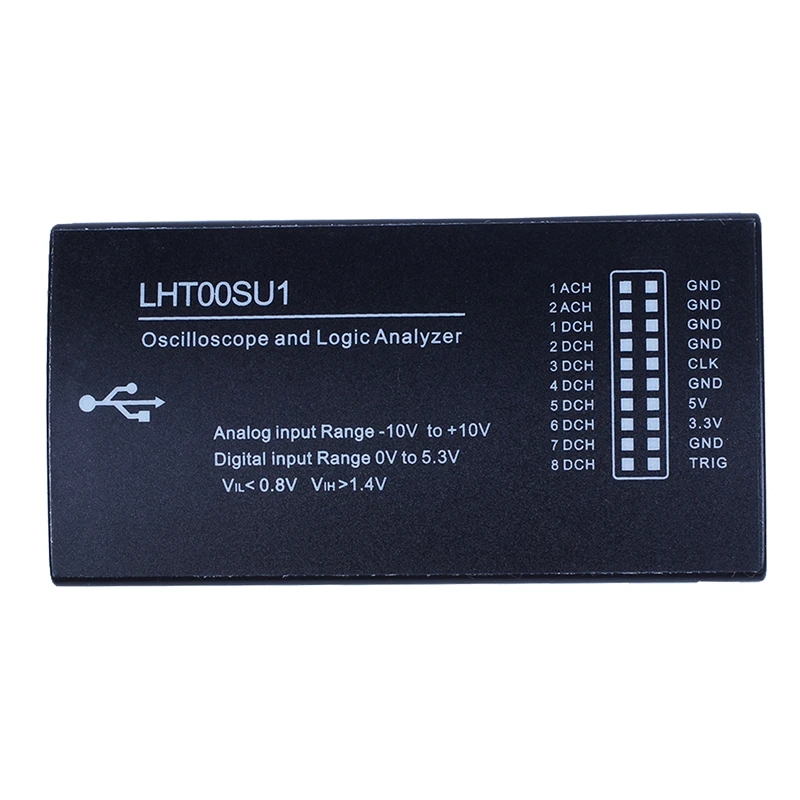

I2C SPI CAN Uart LHT00SU1 Virtual Oscilloscope Logic Analyzer | Инструменты

I2C SPI CAN Uart LHT00SU1 Virtual Oscilloscope Logic Analyzer | Инструменты

Color:black
Material:ABS
8-channel logic analyzer
Data Logger
Dual channel voltmeter
Mixed signal oscilloscopes and logic analyzer
Frequency meter
Remote controller
PWM controller
Frequency generator
I2C controller
Pulse / edge counter
support for multiple protocols
Analog parameters:
Number of input channels: 2 channel
Sampling channel: 1 channel
The maximum sampling frequency: 16MHz
The maximum analog bandwidth: Hz
Input voltage range: -10V to + 10V
Sensitivity: 78mV
Maximum vertical resolution: 256 level

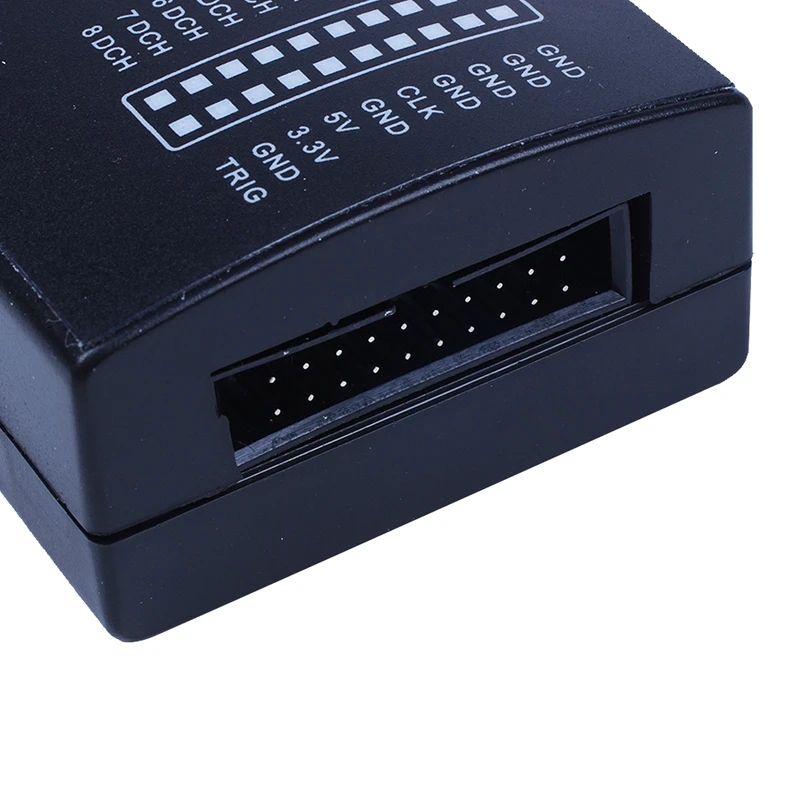

Digital parameters:
Number of channels: 8
Input voltage: 0V-5.3V
Input Low level: Less than 0.8V
Input high level: Greater than 1.4V
Supported protocols: SPI, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wite, PS / 2

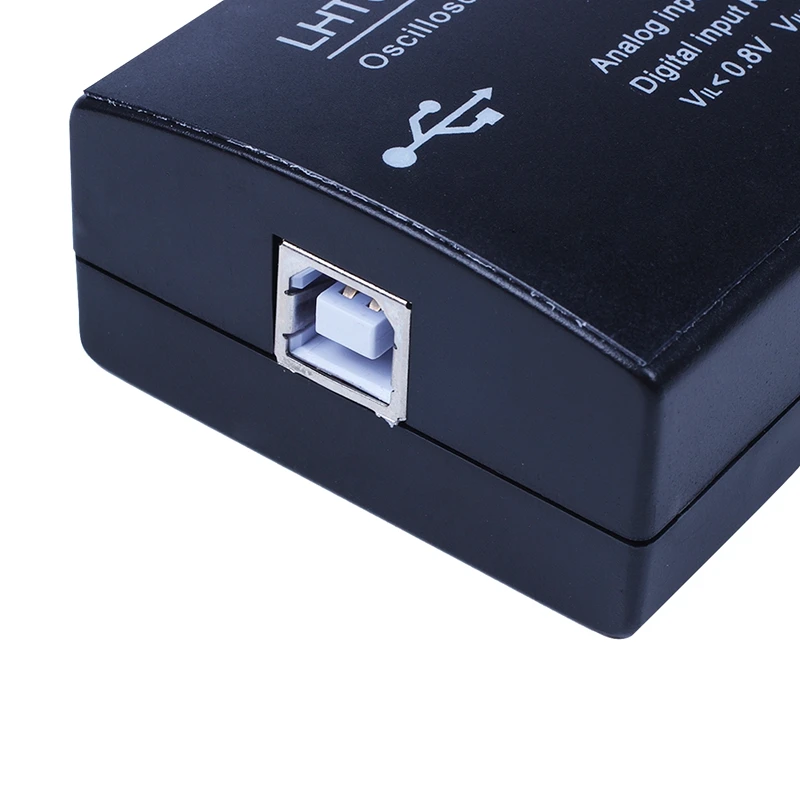

USB parameters: USB2.0 high-speed 480Mbps
Supported operating systems Win2000 / XP / Vista / WIN7 (32bit)
Celeron 4 2.0G or Pentium 4 1.8G higher processor
Need USB2.0 high speed interface, does not support full speed USB2.0 or USB1.1
Memory Requirements 128M or more
Need 2G or more hard disk
You need to install Framework 3.5 SP1
Note: If your system is WINDOWS XP, please check whether your computer has ".NET 3.5 SP1" this component, if not, go to the Microsoft website to download and install.
Package Contents:
1 x oscilloscopes

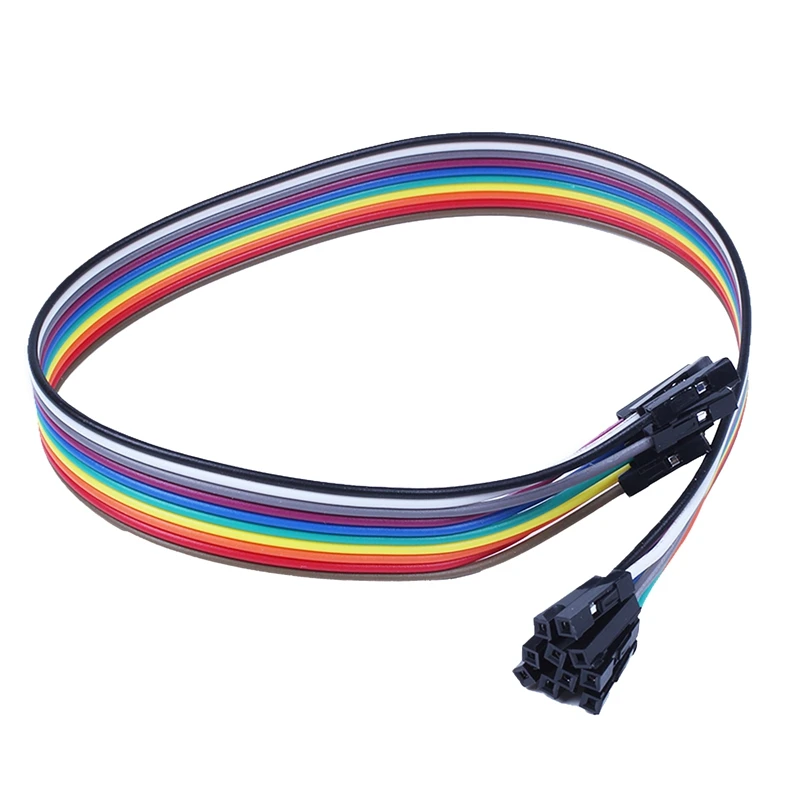

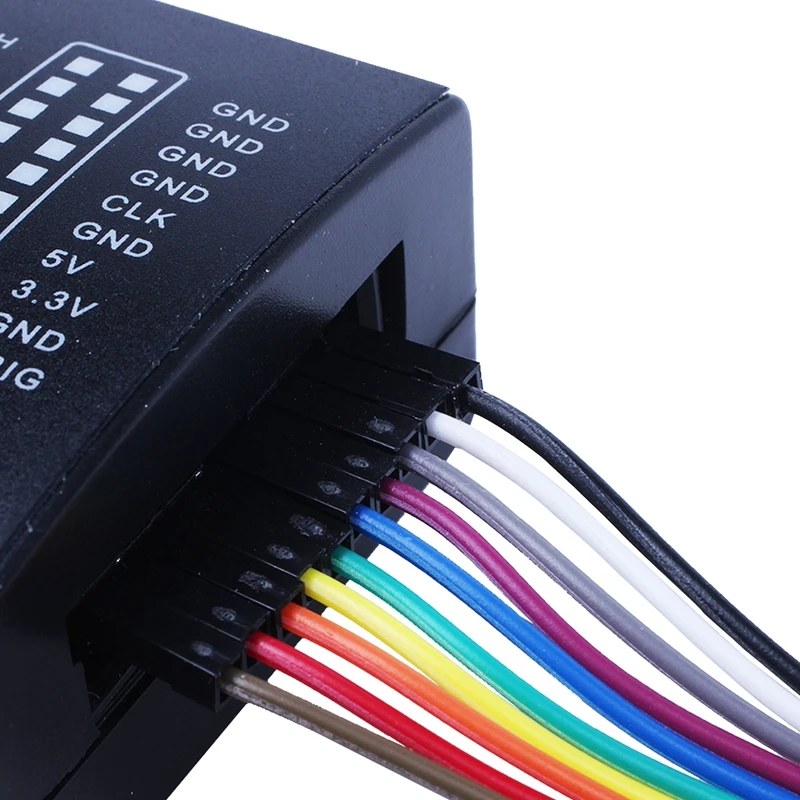

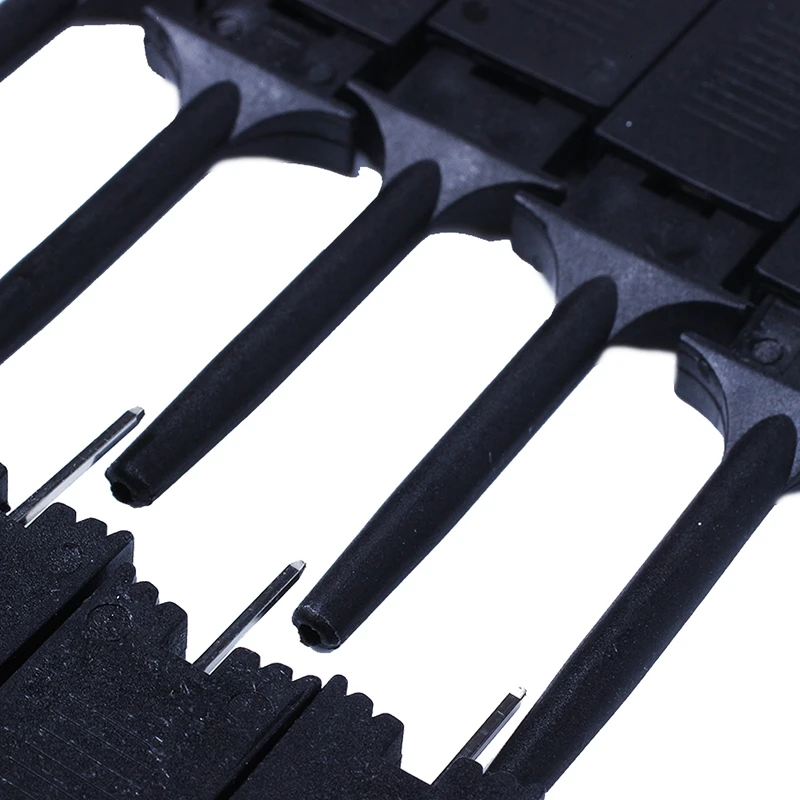

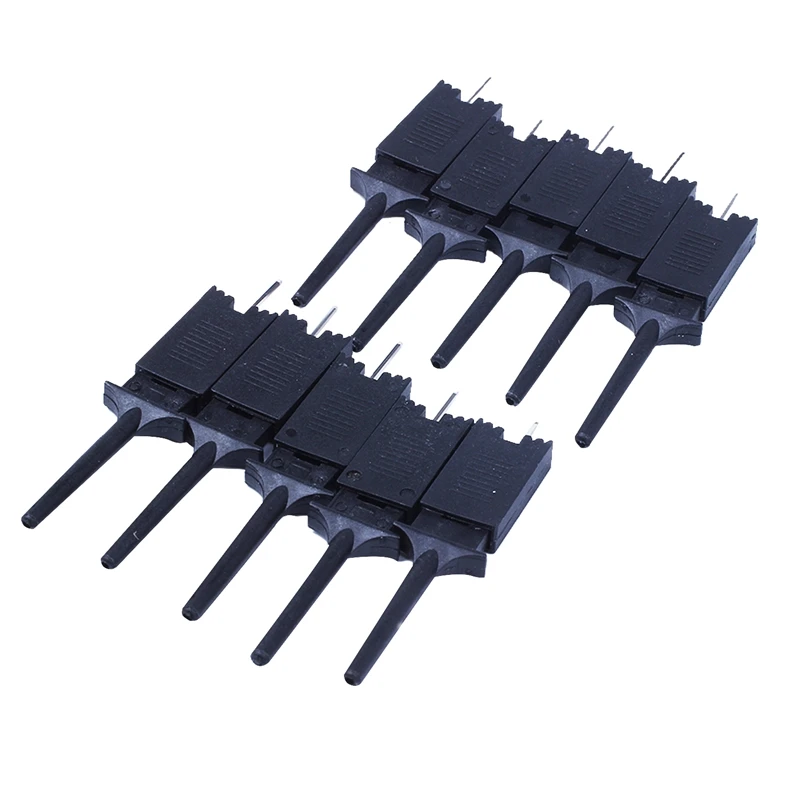

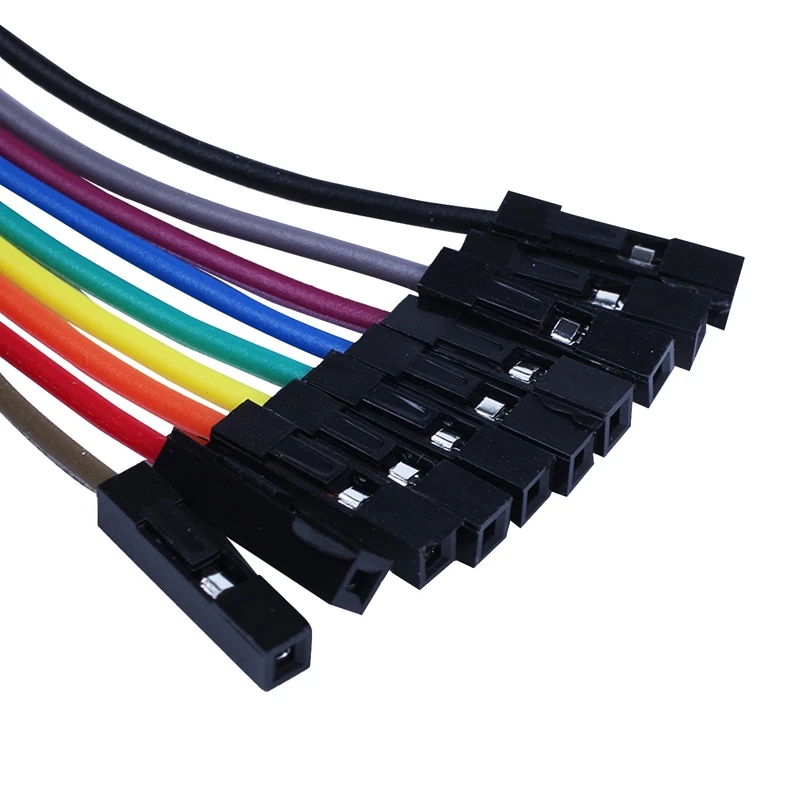

1 x Testing clamp line (with 10 test clip)

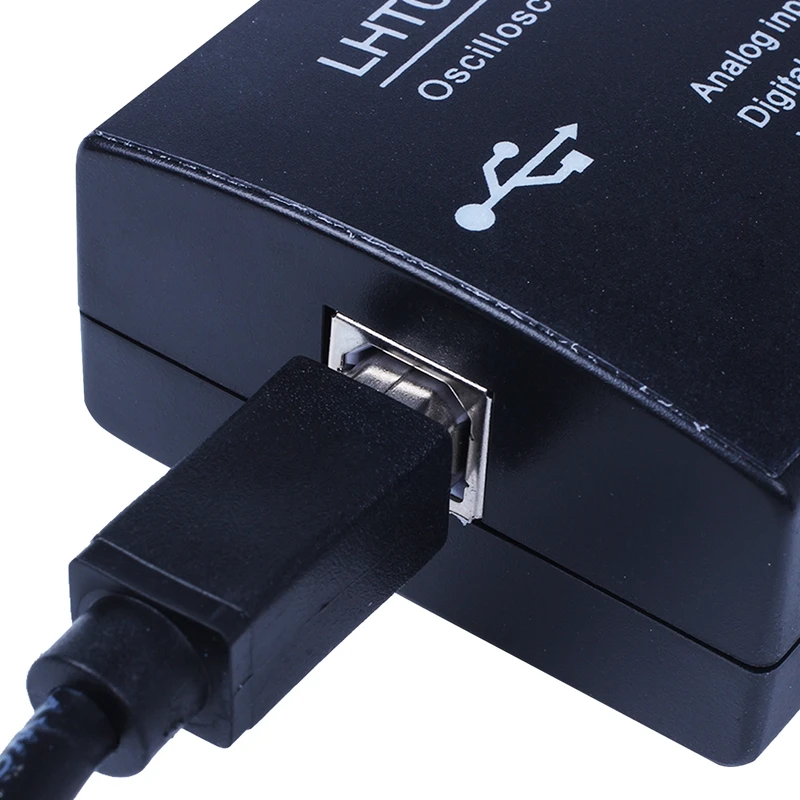

1 x USB connection line
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
